VD fans
The centrifugal one-sided suction fans VD for moving air and gas-air mixtures with temperatures from -30 °C to + 80 °C, dust content not exceeding 0.1 g/m3 and not containing sticky, fibrous and abrasive inclusions. They are used in heat and power engineering, on gas-oil boilers, on steam and hot water boilers. Produced from carbon and stainless steel.
| Execution | D/Dn | N en, KW |
n en, rpm |
n w.w. en, rpm |
Airflow m3/h |
Pressure Pa |
ID |
Price, UAH |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ηmax | in working zone | ηmax | in working zone | ||||||||
VD №2,7 |
|||||||||||
| 1 | 1 | 1.1 | 1500 | 1420 | 500 | 250-770 | 37.5 | 38 | id40024 | Negotiated price | |
| 1 | 1 | 1.5 | 3000 | 2930 | 970 | 500-550 | 150 | 150 | id40025 | Negotiated price | |

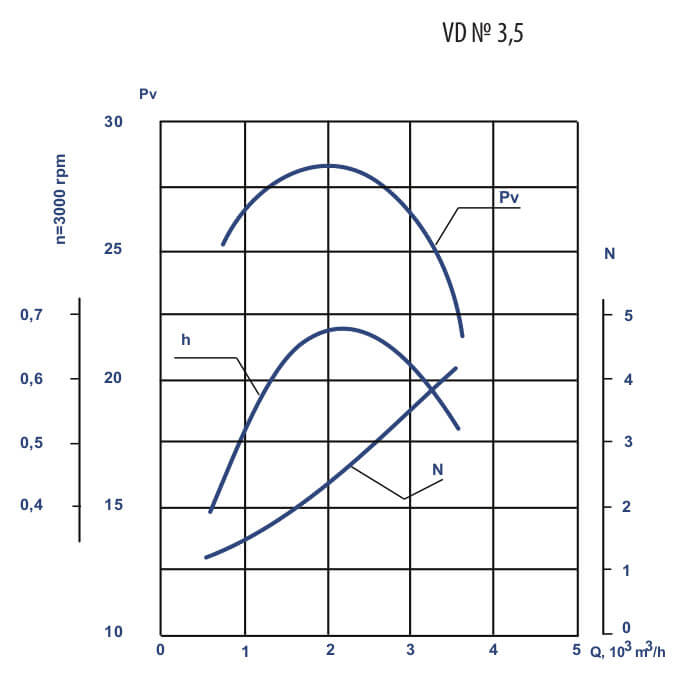

VD №3,5 |
|||||||||||
| 1 | 1 | 1.5 | 1000 | 905 | 2510 | 1930-3920 | 280 | 280-180 | id40026 | Negotiated price | |
| 1 | 1 | 3 | 1500 | 1410 | 3870 | 3000-6000 | 650 | 650-420 | id40027 | Negotiated price | |

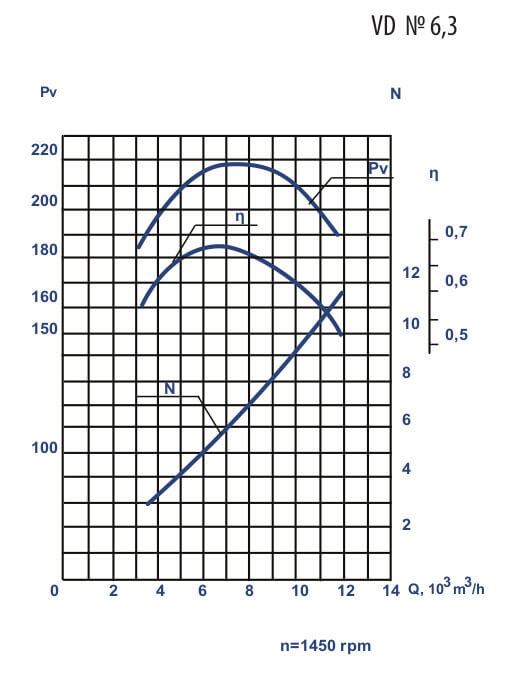

VD №6,3 |
|||||||||||
| 3 | 1 | 11 | 1500 | 1420 | 6700 | 3200-11800 | 2180 | 2180-1900 | id40028 | Negotiated price | |

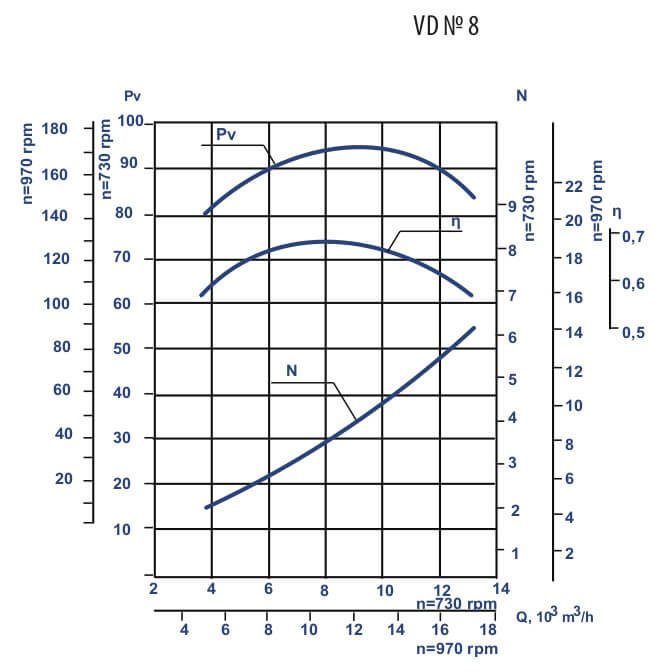

VD №8 |
|||||||||||
| 3 | 1 | 7.5 | 750 | 730 | 7900 | 4000-11300 | 934 | 950-800 | id40029 | Negotiated price | |
| 3 | 1 | 15 | 1000 | 970 | 10450 | 4800-17800 | 1648 | 1700-1400 | id40030 | Negotiated price | |

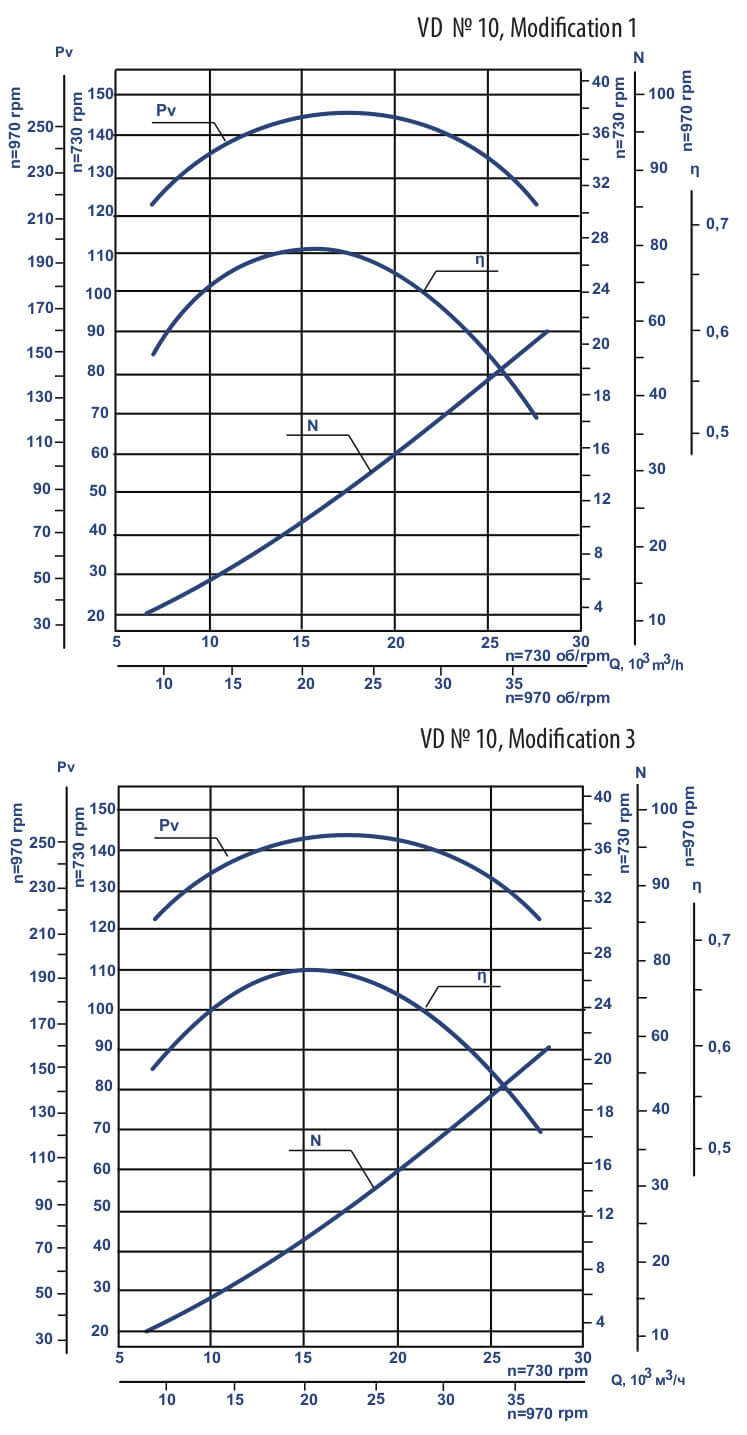

VD №10 |
|||||||||||
| 1 | 1 | 11 | 750 | 730 | 15500 | 6700-27700 | 1450 | 1460-1220 | id40031 | Negotiated price | |
| 3 | 1 | 11 | 750 | 730 | 15500 | 6700-27700 | 1450 | 1460-1220 | id40033 | Negotiated price | |
| 1 | 1 | 30 | 1000 | 970 | 20600 | 9000-36900 | 2540 | 2560-2150 | id40032 | Negotiated price | |
| 3 | 1 | 30 | 1000 | 970 | 20600 | 9000-36900 | 2540 | 2560-2150 | id40034 | Negotiated price | |

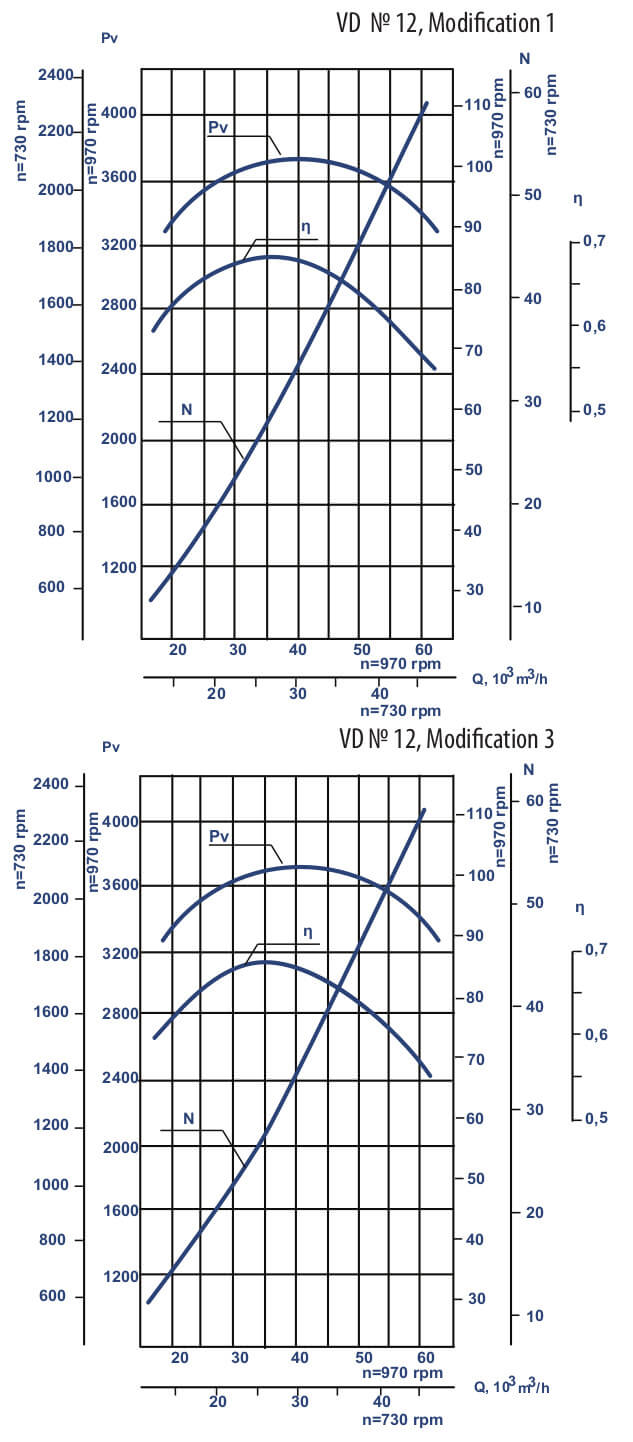

VD №12 |
|||||||||||
| 1 | 1 | 30 | 750 | 730 | 26950 | 11500-46900 | 2110 | 2120-1840 | id40035 | Negotiated price | |
| 3 | 1 | 30 | 750 | 730 | 26950 | 11500-46900 | 2110 | 2120-1840 | id40037 | Negotiated price | |
| 1 | 1 | 75 | 1000 | 970 | 34000 | 27000-62000 | 3720 | 3730-3250 | id40036 | Negotiated price | |
| 3 | 1 | 75 | 1000 | 970 | 34000 | 27000-62000 | 3720 | 3730-3250 | id40038 | Negotiated price | |

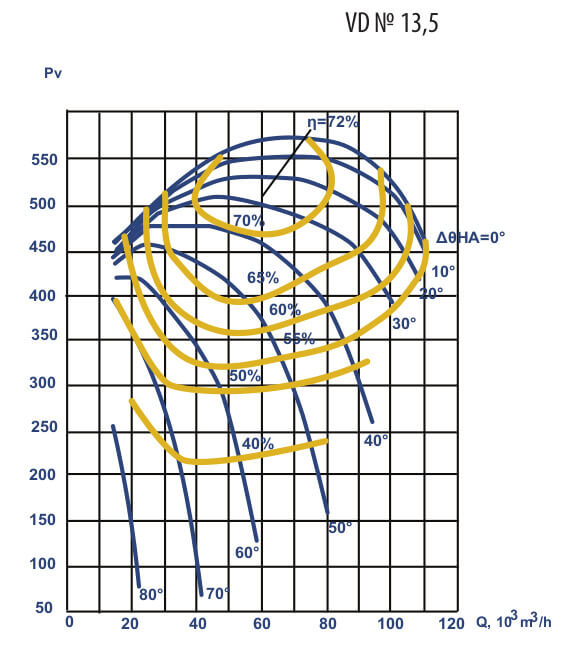

VD №13,5 |
|||||||||||
| 3 | 1 | 132 | 1000 | 990 | 60000 | 26800-83540 | 4990 | 5000-4190 | id40039 | Negotiated price | |
| 3 | 1 | 160 | 1000 | 990 | 60000 | 26800-93550 | 4991 | 5050-4191 | id40050 | Negotiated price | |
VD №15,5 |
|||||||||||
| 3 | 1 | 315 | 1000 | 988 | 90000 | 30000-150000 | 6590 | 6650-5540 | id40051 | Negotiated price | |

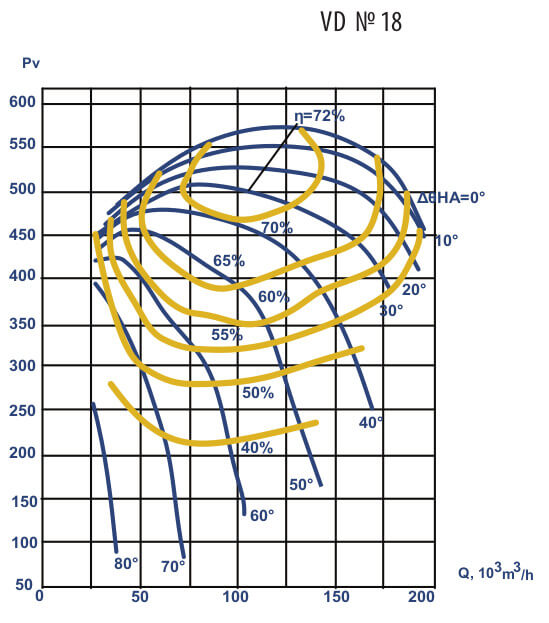

VD №18 |
|||||||||||
| 3 | 1 | 250 | 750 | 730 | 110000 | 50000-175000 | 4990 | 4990-4190 | id40052 | Negotiated price | |

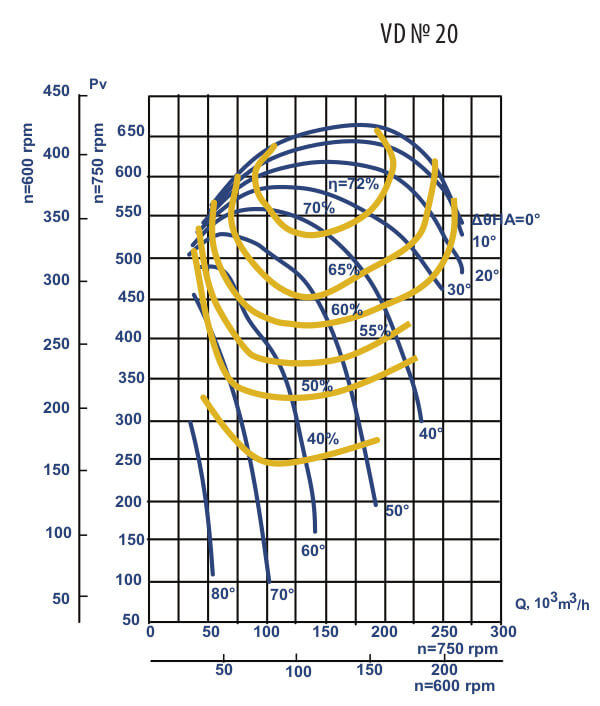

VD №20 |
|||||||||||
| 3 | 1 | 250 | 600 | 585 | 84800 | 35000-135000 | 3190 | 3200-3110 | id40053 | Negotiated price | |
| 3 | 1 | 400 | 750 | 730 | 106000 | 43700-169000 | 4990 | 5000-4860 | id40054 | Negotiated price | |
Fans are manufactured
in accordancewith TU U 28.2-24881057-003:2023:
- Carbon steel;
- Stainless steel;
VD exhaust fan is one of the most highly sought types of exhaust machines.
VD fans are designed for moving air and non-aggressive explosive gas-air mixtures with temperature from -30 °C to + 80 °C, dust content not exceeding 0.1 g/m3 and not containing sticky, fibrous and abrasive inclusions. Designed for long-term indoor and outdoor work in temperate climates.
VD fans are used:
- in heat power engineering;
- on gas-oil boilers;
- on steam and hot water boilers;
- for other sanitation-production purposes.
General information about exhaust fan:
- Single suction;
- Spiral rotary framework;
- Forward curved blades;
- Quantity of blades – 32;
- Direction of rotation – right and left.

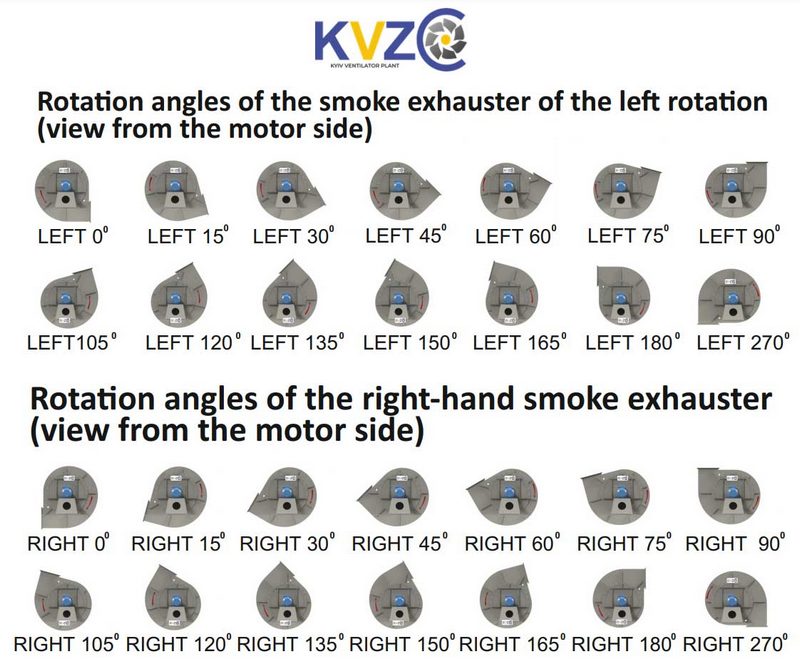

Depending on the direction of rotation, the fans are produced in the right or left rotation. Right-hand fans with a wheel rotating clockwise, left rotation – with a wheel rotating counter-clockwise when viewed from the suction side of the fan.
