High pressure fans VTS 7-15
Radial high pressure fan of one-sided suction VTS 7-15 for moving air and other gas mixtures with a temperature of up to + 80 °С. The concentration in the moving air flow of solid mechanical impurities does not exceed 100 mg/m3 and there are no fibrous and sticky contaminants. The fan is used in air conditioning systems and grain dryers. It is made of carbon and stainless steel, dissimilar metals and aluminum alloys.
| Execution | D/Dn | N en, KW |
n en, rpm |
n w.w. en, rpm |
Airflow m3/h |
Pressure Pa |
ID |
Price, UAH |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ηmax | in working zone | ηmax | in working zone | ||||||||

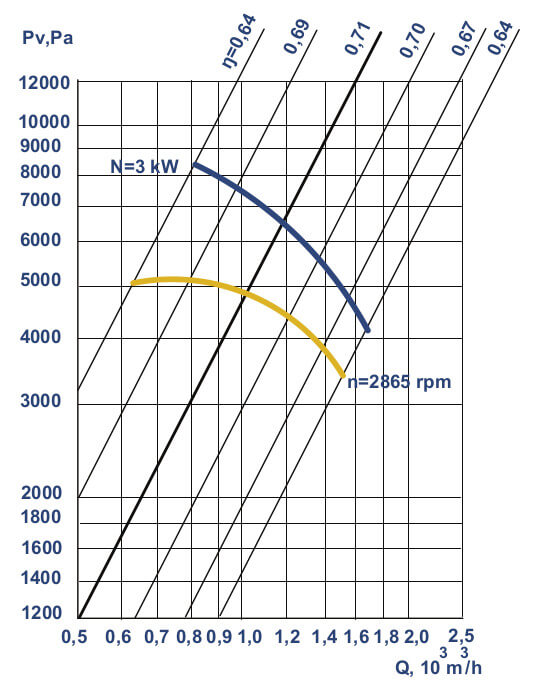

VC 7-15 №5 |
|||||||||||
| 1 | 1 | 3 | 3000 | 2865 | 1050 | 620-1510 | 4800 | 5110-3500 | id36103 | 31958 | |

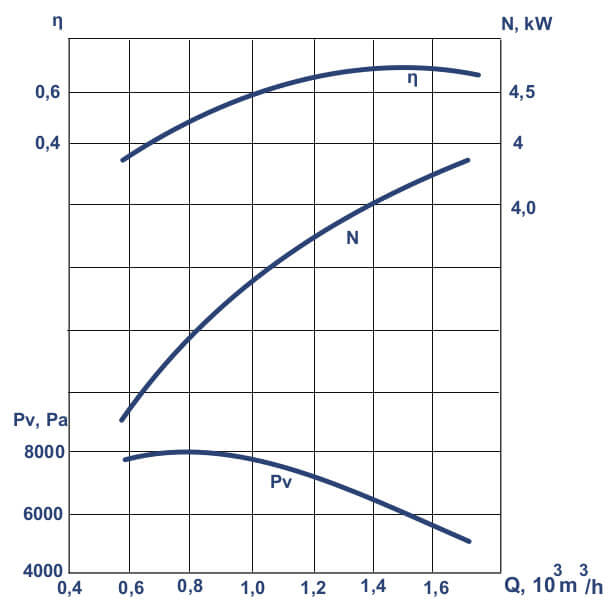

VC 7-15 №6,3M |
|||||||||||
| 1 | 1 | 5.5 | 3000 | 3000 | 1100 | 570-1710 | 7470 | 8010-5150 | id36108 | Negotiated price | |
VC 7-15 №6,3 |
|||||||||||
| 1 | 1 | 1.1 | 1500 | 1500 | 1000 | 630-1490 | 1858 | 1999-1319 | id36104 | 41179 | |
| 1 | 1 | 11 | 3000 | 3000 | 2060 | 1290-3090 | 7921 | 8475-5664 | id36105 | 56694 | |

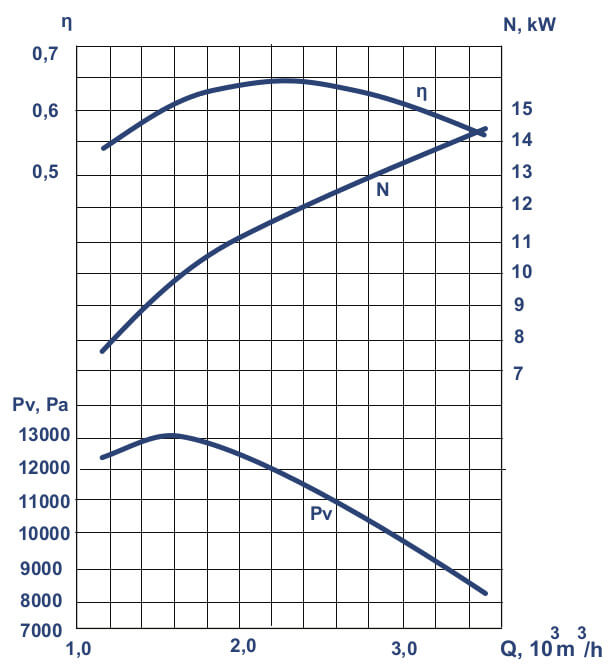

VC 7-15 №8M |
|||||||||||
| 1 | 1 | 18.5 | 3000 | 3000 | 2240 | 1160-3510 | 11990 | 12910-8192 | id36109 | Negotiated price | |

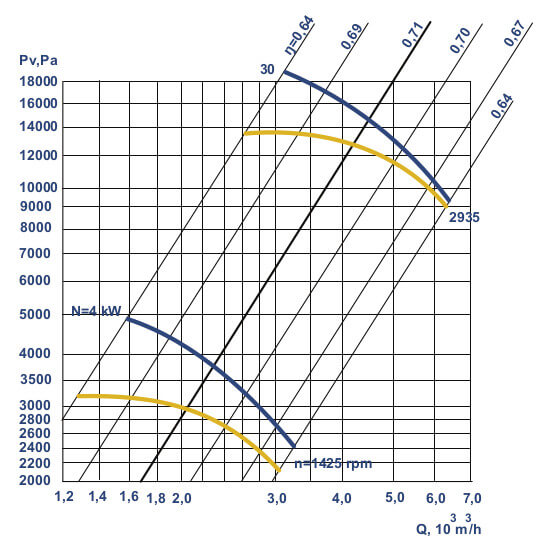

VC 7-15 №8 |
|||||||||||
| 1 | 1 | 4 | 1500 | 1500 | 2050 | 1280-3070 | 2999 | 3219-2140 | id36106 | 125939 | |
| 1 | 1 | 30 | 3000 | 3000 | 4220 | 2640-6320 | 12810 | 13730-9157 | id36107 | 168511 | |
Fans are manufactured in accordance withTU U 28.2-24881057-003:2023:
- from carbon steel;
- from stainless steel;
- from dissimilar metals;
- from aluminum alloys.
VC 7-15 Centrifugal high-pressure fans is most popular type of ventilation equipment.
The fans are intended for use in rooms where the concentration in the moving air stream of solid mechanical dust impurities does not exceed 100 mg/m3 with a temperature up to + 80 ° C and in the absence of any impurities having a fibrous structure or sticky properties.
VC 7-15 fans are used:
- in air conditioning systems;
- in grain dryers;
- for other sanitation-production purposes.
General information about fans:
- Single suction;
- Spiral rotary body;
- Backward curved blades;
- Quantity of blades 12;
- Direction of rotation – right and left.
Depending on the direction of rotation, the fans are produced in the right or left rotation. Right-hand fans with a wheel rotating clockwise, left rotation – with a wheel rotating counter-clockwise when viewed from the suction side of the fan.
