| Rotation speed, rpm | 1000 |
|---|---|
| Rotations of impeller, rpm | 950 |
| Performance ηmax | 20940 |
| Fan's operating point: Airflow m³/h | 16990-24270 |
| Pressure ηmax | 338 |
| Fan's operating point: Pressure, Pa | 379-244 |
| The mass of the fan with el. engine, kg | 134 |
| Pollution limits, mg/m³ | 10 |
| Model | В 2,3-130 №8 |
| Max. transported air temperature, °C | 40 |
| Engine KW / RPM | 3/1000 |
| Material | Carbon steel |

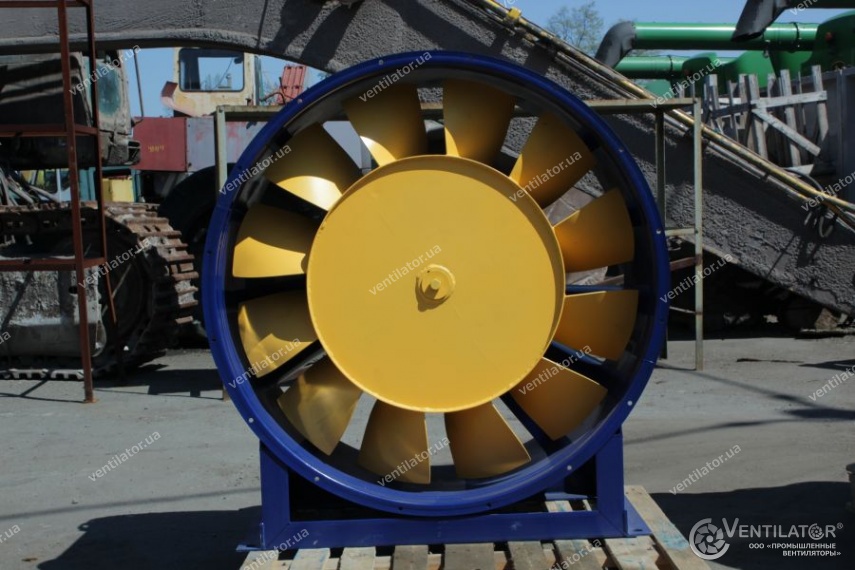

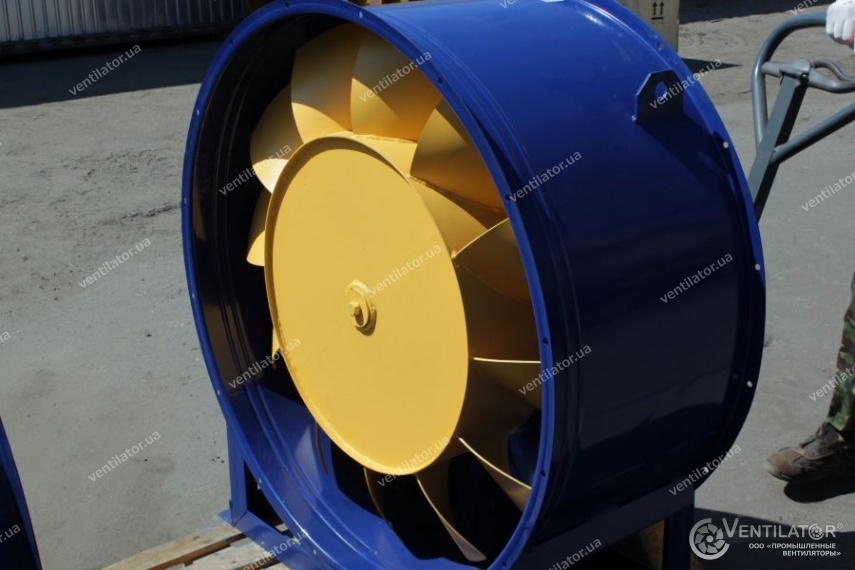

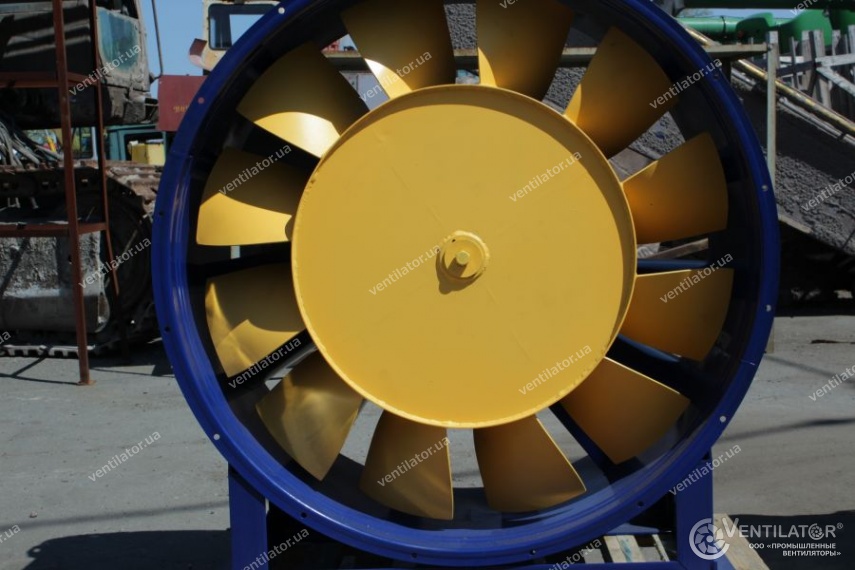

V 2,3-130 № 8 with electric engine AIR 112 MA6 3 kW 1000 RPM
Dimensions
| Модель | Габаритные размеры, мм | |||||||||||||||
| B | C | C1 | D | D1 | D2 | D3 | n | H | H1 | K | e | L | L1 | M | n1, шт. | |
| V 2,3-130 № 8 with electric engine AIR 112 MA6 3 kW 1000 RPM | 830 | 770 | 310 | 800 | 805 | 835 | 860 | 132 | 495 | 960 | 2,5+1,6 | 32,5 | 375 | 590/540 | 3±1 | 32 |
Aerodynamic characteristics
V 2,3-130 fans aerodynamic characteristics, D=Dn
at a temperature of the transported medium 20 ° C and barometric pressure of 760 mm Hg. Art.
Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
