| Fan's operating point: Airflow m³/h | 9000-13000 |
|---|---|
| Rotations of impeller, rpm | 1395 |
| Pressure ηmax | 400 |
| Fan's operating point: Pressure, Pa | 450-280 |
| Rotation speed, rpm | 1500 |
| Performance ηmax | 10000 |
| The mass of the fan with el. engine, kg | 67.5 |
| Engine KW / RPM | 2.2/1500 |
| Model | V 2,3-130 №5,6 |
| Material | Carbon steel |
| Pollution limits, mg/m³ | 10 |
| Max. transported air temperature, °C | 40 |

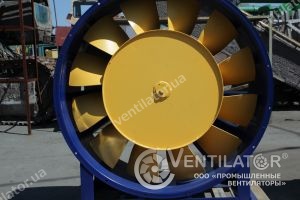

V 2,3-130 №5,6 with electric motor AIR 90 L4 2,2 kW 1500 rpm
Aerodynamic characteristics
V 2,3-130 fans aerodynamic characteristics, D=Dn
at a temperature of the transported medium 20 ° C and barometric pressure of 760 mm Hg. Art.
Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
