| Fan's operating point: Airflow m³/h | 1880-4880 |
|---|---|
| Pressure ηmax | 1957 |
| Performance ηmax | 3090 |
| Rotations of impeller, rpm | 2880 |
| Rotation speed, rpm | 3000 |
| Fan's operating point: Pressure, Pa | 1655-1980 |
| The mass of the fan with el. engine, kg | 56 |
| Material | Carbon steel |
| Design | Schema №1 |
| Ventilator angle of rotation | L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90 |
| Engine KW / RPM | 5.5/3000 |
| Pollution limits, mg/m³ | 100 |
| Model | ВЦ 14-46 №2,5 |
| D/Dn | 1 |

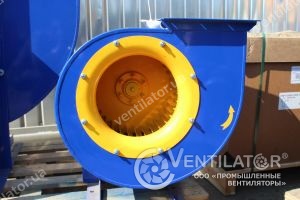

VС 14-46 №2,5 with electric engine AIR 100 L2 5,5 kW 3000 RPM
Dimensions
Aerodynamic characteristics
VC 14-46 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С
