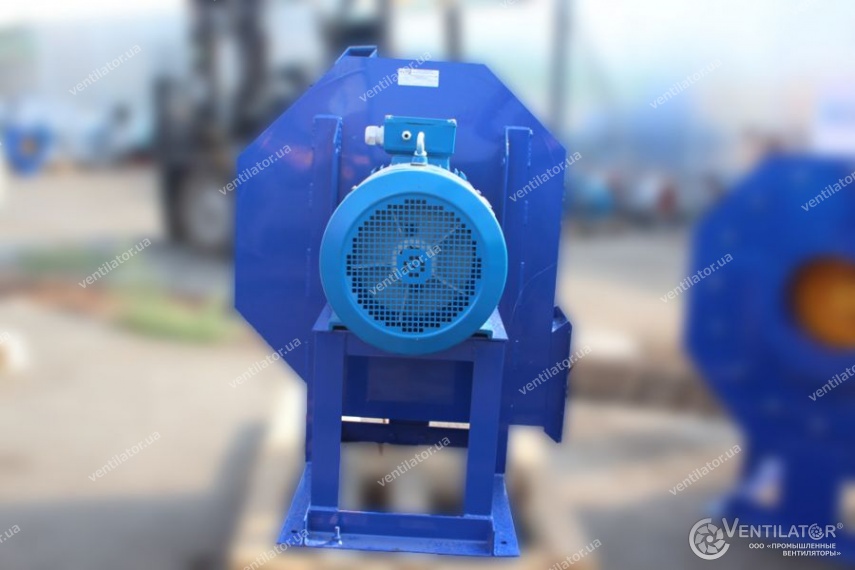

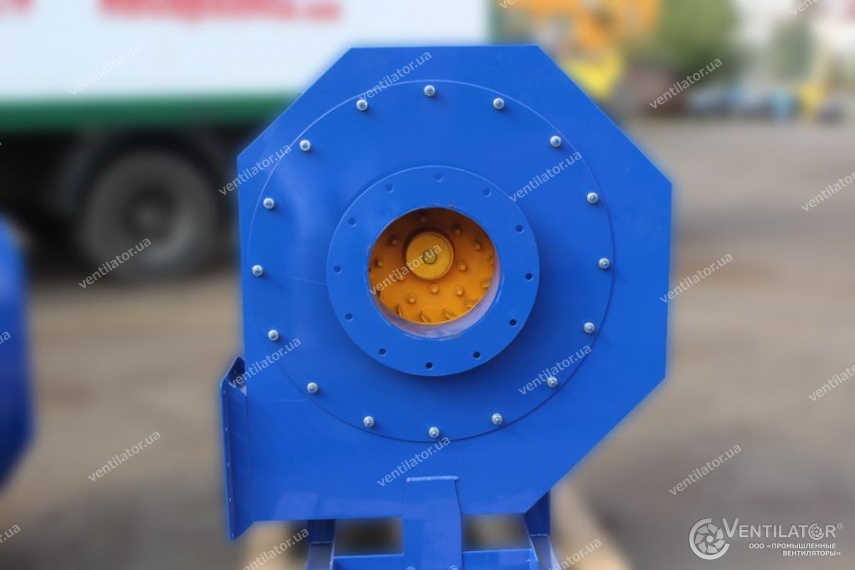

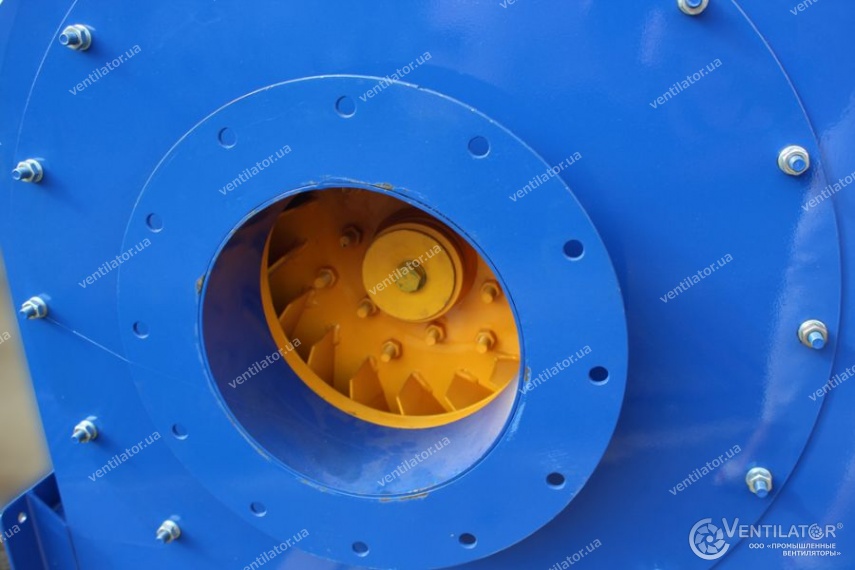

VC 6-28 (VR 120-28) №5 with electric motor AIR 80 А4 1,1 kW 1500 rpm
VC 6-28 (VR 120-28) №5 with electric motor AIR 80 А4 1,1 kW 1500 rpm
VC 6-28 (VR 120-28) №5 with electric motor AIR 80 А4 1,1 kW 1500 rpm
VC 6-28 (VR 120-28) №5 with electric motor AIR 80 А4 1,1 kW 1500 rpm

VC 6-28 (VR 120-28) №5 with electric motor AIR 80 А4 1,1 kW 1500 rpm

ID 37483  In stock
Choose another ›
Choose another ›
Choose another ›
Choose another ›
ID 37483  In stock
Fan's operating point: Airflow m³/h 250-2460, 280-2700, 290-2890
D/Dn 0.9, 0.95, 1
Rotation speed, rpm 1500
Material Carbon steel
Rotations of impeller, rpm 1415, 1420
Pressure ηmax 836, 965, 1104
Fan's operating point: Pressure, Pa 855-309, 945-377, 1019-437
The mass of the fan with el. engine, kg 68,0, 69,0
Pollution limits, mg/m³ 100
Model ВЦ 6-28 (ВР 120-28) №5
Max. transported air temperature, °C
Engine KW / RPM 1.1/1500
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Performance ηmax 1200, 1250, 1090
Design Schema №1

Dimensions

Overall dimensions of the industrial fan VC 6-28 (VR 120-28) №5

Reviews

There are no reviews yet.

Be the first to review “VC 6-28 (VR 120-28) №5 with electric motor AIR 80 А4 1,1 kW 1500 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 6-28 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VC 6-28 (VR 120-28) №5

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
