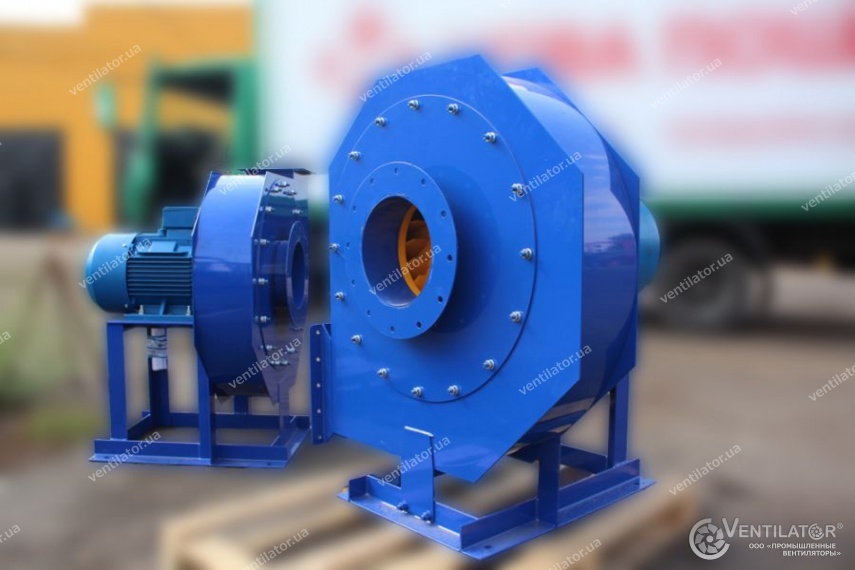

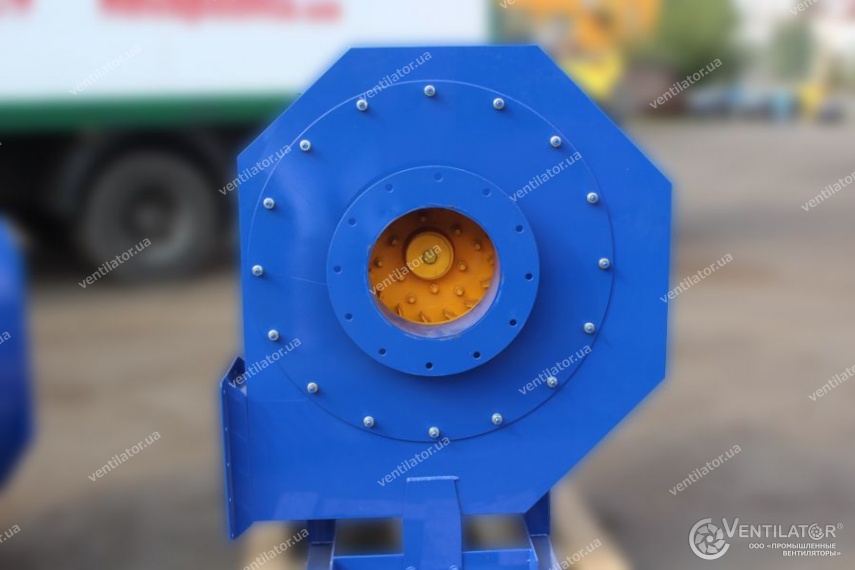

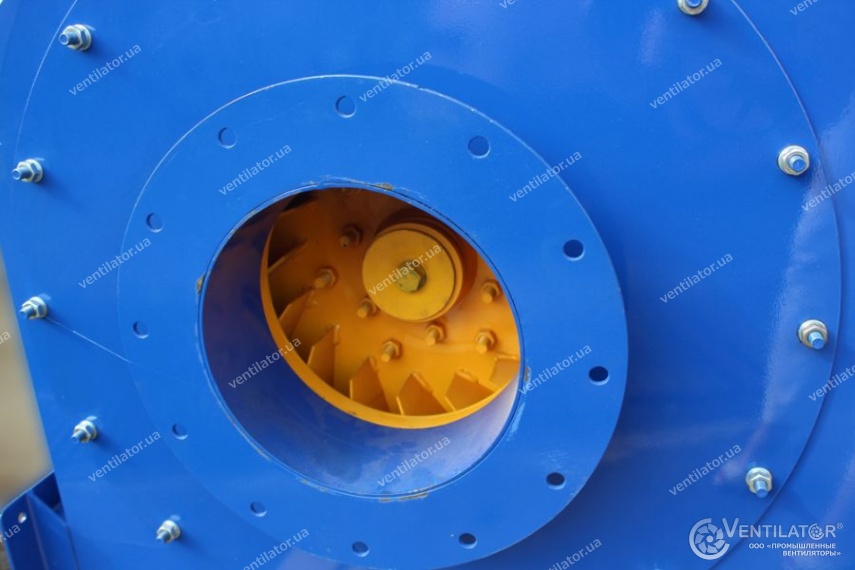

VC 6-28 (VR 120-28) №6,3 with electric motor AIR 100 S4 3 kW 1500 rpm
VC 6-28 (VR 120-28) №6,3 with electric motor AIR 100 S4 3 kW 1500 rpm
VC 6-28 (VR 120-28) №6,3 with electric motor AIR 100 S4 3 kW 1500 rpm
VC 6-28 (VR 120-28) №6,3 with electric motor AIR 100 S4 3 kW 1500 rpm

VC 6-28 (VR 120-28) №6,3 with electric motor AIR 100 S4 3 kW 1500 rpm

ID 37490  In stock
Choose another ›
Choose another ›
Choose another ›
Choose another ›
ID 37490  In stock
Fan's operating point: Airflow m³/h 490-4890, 560-5310, 590-4420
D/Dn 0.9, 0.95, 1
Rotation speed, rpm 1500
Material Carbon steel
Rotations of impeller, rpm 1388, 1395, 1425
Pressure ηmax 1278, 1480, 1765
Fan's operating point: Pressure, Pa 1306-472, 1450-579, 1630-1340
The mass of the fan with el. engine, kg 117,0, 118,0, 1190
Pollution limits, mg/m³ 100
Model ВЦ 6-28 (ВР 120-28) №6,3
Max. transported air temperature, °C
Engine KW / RPM 3.0/1500
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Performance ηmax 2370, 2460, 2190
Design Schema №1

Dimensions

Overall dimensions of the industrial fan VC 6-28 (VR 120-28) №6,3

Reviews

There are no reviews yet.

Be the first to review “VC 6-28 (VR 120-28) №6,3 with electric motor AIR 100 S4 3 kW 1500 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 6-28 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VC 6-28 (VR 120-28) №6,3

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
