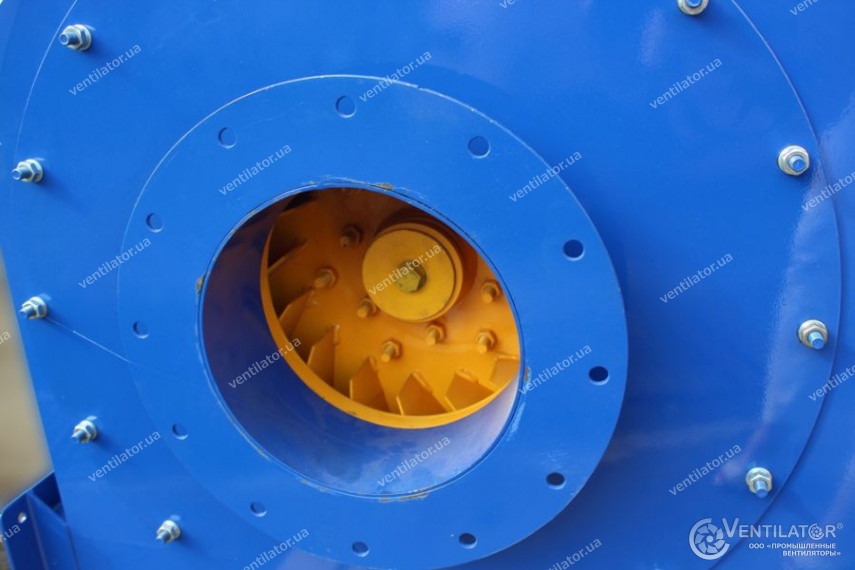

VC 6-28 (VR 120-28) №6,3 with electric motor AIR 160 S2 15 kW 3000 rpm
VC 6-28 (VR 120-28) №6,3 with electric motor AIR 160 S2 15 kW 3000 rpm
VC 6-28 (VR 120-28) №6,3 with electric motor AIR 160 S2 15 kW 3000 rpm
VC 6-28 (VR 120-28) №6,3 with electric motor AIR 160 S2 15 kW 3000 rpm

VC 6-28 (VR 120-28) №6,3 with electric motor AIR 160 S2 15 kW 3000 rpm

ID 9125  In stock
Choose another ›
Choose another ›
Choose another ›
Choose another ›
ID 9125  In stock
Fan's operating point: Airflow m³/h 1040-6560, 1180-5600, 1200-4700
D/Dn 0.9, 0.95, 1
Rotation speed, rpm 3000
Material Carbon steel
Rotations of impeller, rpm 2940, 2950
Pressure ηmax 5771, 6629, 7636
Fan's operating point: Pressure, Pa 5881-5253, 6471-6490, 7020-7500
The mass of the fan with el. engine, kg 257,0, 258,0
Pollution limits, mg/m³ 100
Model ВЦ 6-28 (ВР 120-28) №6,3
Max. transported air temperature, °C
Engine KW / RPM 15.0/3000
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Performance ηmax 5030, 5190, 4530
Design Schema №1

Dimensions

Overall dimensions of the industrial fan VC 6-28 (VR 120-28) №6,3

Reviews

There are no reviews yet.

Be the first to review “VC 6-28 (VR 120-28) №6,3 with electric motor AIR 160 S2 15 kW 3000 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 6-28 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VC 6-28 (VR 120-28) №6,3

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
