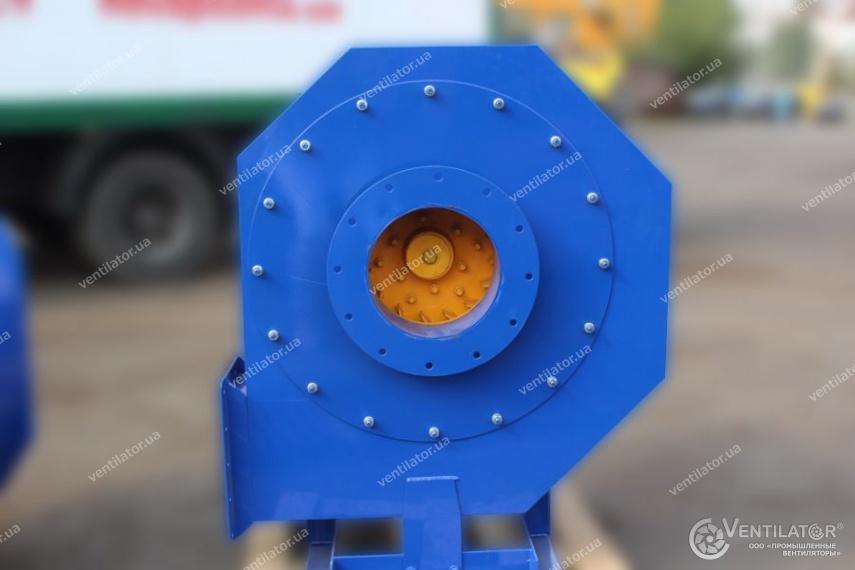

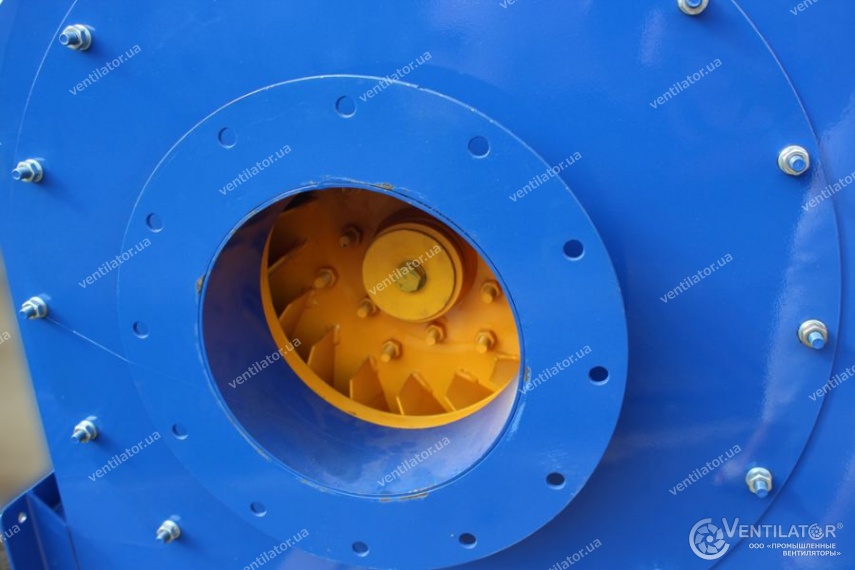

VC 6-28 (VR 120-28) №6,3 with electric motor AIR 200 М2 37 kW 3000 rpm
VC 6-28 (VR 120-28) №6,3 with electric motor AIR 200 М2 37 kW 3000 rpm
VC 6-28 (VR 120-28) №6,3 with electric motor AIR 200 М2 37 kW 3000 rpm
VC 6-28 (VR 120-28) №6,3 with electric motor AIR 200 М2 37 kW 3000 rpm

VC 6-28 (VR 120-28) №6,3 with electric motor AIR 200 М2 37 kW 3000 rpm

ID 37493  In stock
Choose another ›
Choose another ›
Choose another ›
Choose another ›
ID 37493  In stock

Prices for fans with impeller D = 1,05 Dn, D = 1,1 Dn, are specified by manager

Fan's operating point: Airflow m³/h 1200-12000, 1150-12400, 3120-10400
D/Dn 1, 1.05, 1.1
Rotation speed, rpm 3000
Material Carbon steel
Rotations of impeller, rpm 2940, 2950
Pressure ηmax 7636, 8271, 9008
Fan's operating point: Pressure, Pa 7020-2996, 8059-3680, 8869-6900
The mass of the fan with el. engine, kg 363,0, 364,0, 365,0
Pollution limits, mg/m³ 100
Model ВЦ 6-28 (ВР 120-28) №6,3
Max. transported air temperature, °C
Engine KW / RPM 37.0/3000
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Performance ηmax 4530, 6700, 6470
Design Schema №1

Dimensions

Overall dimensions of the industrial fan VC 6-28 (VR 120-28) №6,3

Reviews

There are no reviews yet.

Be the first to review “VC 6-28 (VR 120-28) №6,3 with electric motor AIR 200 М2 37 kW 3000 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 6-28 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VC 6-28 (VR 120-28) №6,3

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
