| Fan's operating point: Airflow m³/h | 11050-44730 |
|---|---|
| Pressure ηmax | 1150 |
| Fan's operating point: Pressure, Pa | 1340-750 |
| Performance ηmax | 29370 |
| Rotations of impeller, rpm | 980 |
| Rotation speed, rpm | 1000 |
| The mass of the fan with el. engine, kg | 1520 |
| Pollution limits, mg/m³ | 100 |
| Material | Carbon steel |
| Design | Schema №3, Scheme No. 3 with industrial support, Scheme No. 3 on housing bearings |
| Ventilator angle of rotation | L 0, L 180, L 270, L 45, L 90, Л 15, Л 60, Л 75, Л30, П 0, П 15, П 180, П 270, П 30, П 45, П 60, П 75, П 90 |
| Engine KW / RPM | 30/1000 |
| Model | VGDN №12,5 |
| Max. transported air temperature, °C | 80 |
| D/Dn | 1 |
VGDN №12,5 with electric motor AIR 200 L6 30 kW 1000 rpm

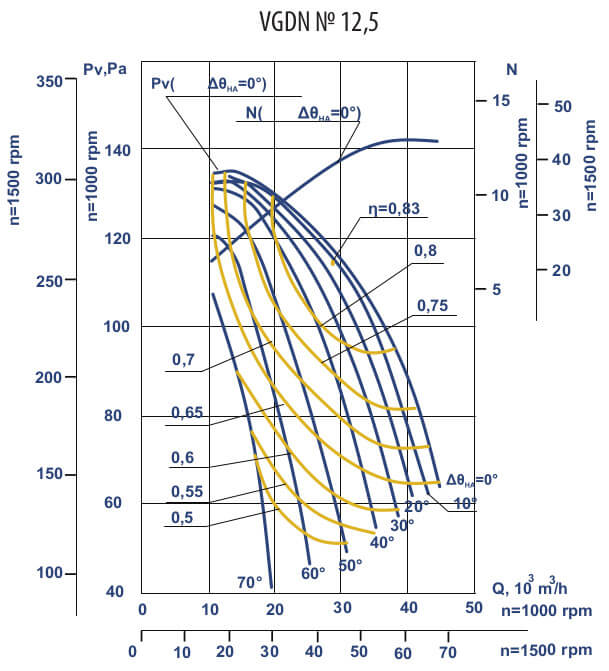

Aerodynamic characteristics
VGDN fan aerodynamic characteristics
at temperature 30 ° С
Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
ΔθHA - angle of installation of guide vanes.
