| Material | Carbon steel |
|---|---|
| Fan's operating point: Pressure, Pa | 427-316 |
| Fan's operating point: Airflow m³/h | 10640-16470 |
| Pollution limits, mg/m³ | 100 |
| The mass of the fan with el. engine, kg | 288,5 |
| Model | ВКР №8 |
| Engine KW / RPM | 3/750 |
| Rotations of impeller, rpm | 700 |

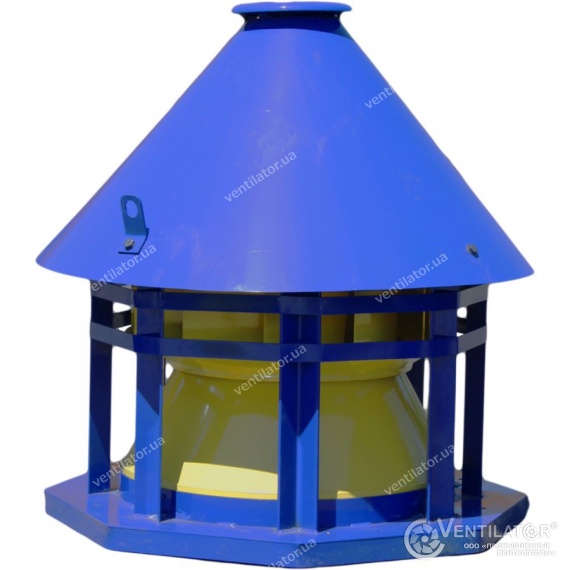

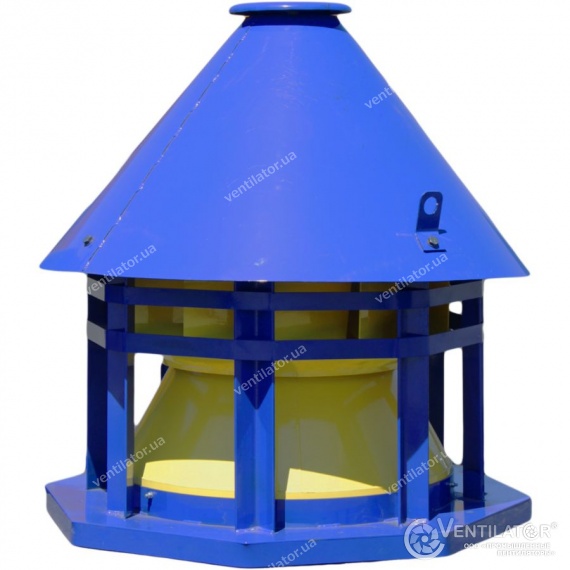

VKR №8 with electric motor AIR 112 MB8 3 kW 750 rpm
Dimensions
| Модель | Габаритные размеры, мм | ||||||
| D | D1 | D2 | D3 | H | n | d | |
| ВКР №8 с эл.двигателем АИР 112 MB8 3 кВт 750 об./мин | 1072 | 1120 | 1220 | 830 | 1220 | 12 | 16 |
Aerodynamic characteristics
VKR № 8 fans aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С
Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
- n=1000 rpm - 0,25 kW
- n=1500 rpm - 0,75 kW, 1,1 kW, 1,5 kW
