| Material | Carbon steel |
|---|---|
| Fan's operating point: Pressure, Pa | 539-429 |
| Fan's operating point: Airflow m³/h | 15600-22900 |
| Pollution limits, mg/m³ | 100 |
| The mass of the fan with el. engine, kg | 318,0 |
| Model | ВКР №9 |
| Engine KW / RPM | 5.5/750 |
| Rotations of impeller, rpm | 710 |
VKR №9 with electric motor AIR 132 M8 5,5 kW 750 rpm

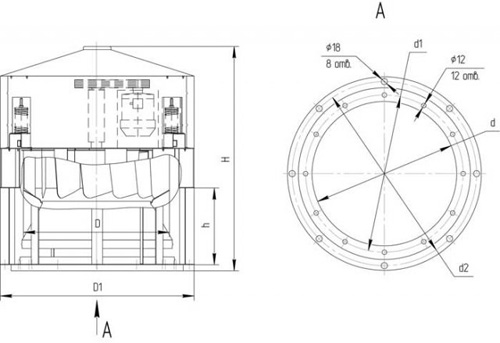

Dimensions
| Model | Overall dimentions, mm | ||||||
| h | H | D | D1 | d | d1 | d2 | |
| VKR №9 with electric motor AIR 132 M8 5,5 kW 750 rpm | 585 | 1690 | 1000 | 1350 | 1020 | 1050 | 1270 |
Aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С
Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
