VO 06-300 (VO 13-290) №8 with electric engine AIR 80 B6 1,1 kW 1000 RPM

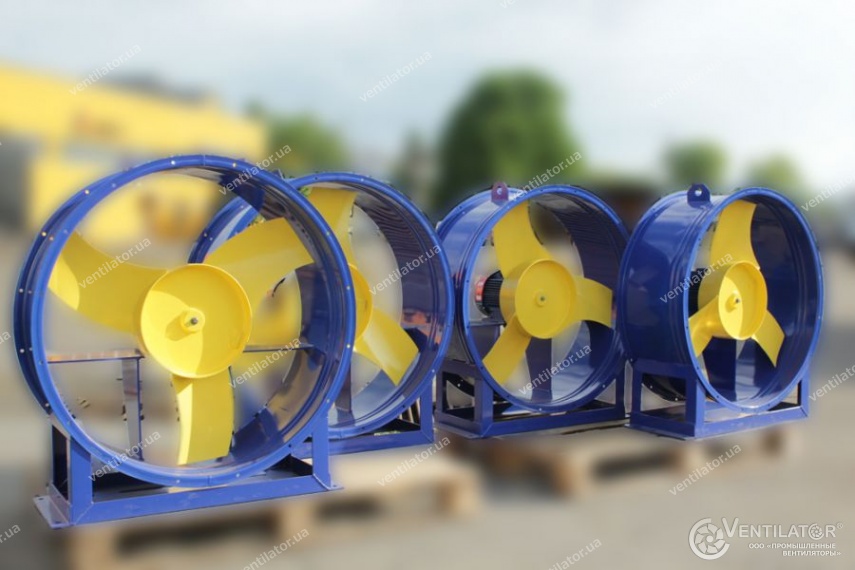

Low pressure axial fan

ID 11337  In stock
Choose another ›
Choose another ›

Low pressure axial fan

ID 11337  In stock
Fan's operating point: Airflow m³/h 18500-4600
Rotation speed, rpm 1000
Pressure ηmax 93.7
Fan's operating point: Pressure, Pa 62.4-164.9
D/Dn 1
Performance ηmax 15200
The mass of the fan with el. engine, kg 63.92
Engine KW / RPM 1.1/1000
Model VO 06-300 №8
Material Carbon steel
Pollution limits, mg/m³ 10
Max. transported air temperature, °C 40

Dimensions

Overall dimensions of the industrial fan VO 06-300 №8

Reviews

There are no reviews yet.

Be the first to review “VO 06-300 (VO 13-290) №8 with electric engine AIR 80 B6 1,1 kW 1000 RPM”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VO 06-300 fan aerodynamic characteristics, D=Dn
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VO 06-300 №8

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
