| Fan's operating point: Airflow m³/h | 11840-37880 |
|---|---|
| Pressure ηmax | 1988 |
| Performance ηmax | 23660 |
| Rotations of impeller, rpm | 985 |
| Rotation speed, rpm | 1000 |
| Fan's operating point: Pressure, Pa | 1658-2019 |
| The mass of the fan with el. engine, kg | 424 |
| Material | Carbon steel |
| Design | Schema №1 |
| Ventilator angle of rotation | L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90 |
| Engine KW / RPM | 37/1000 |
| Pollution limits, mg/m³ | 100 |
| Model | ВЦ 14-46 №6,3 |
| D/Dn | 1.05 |

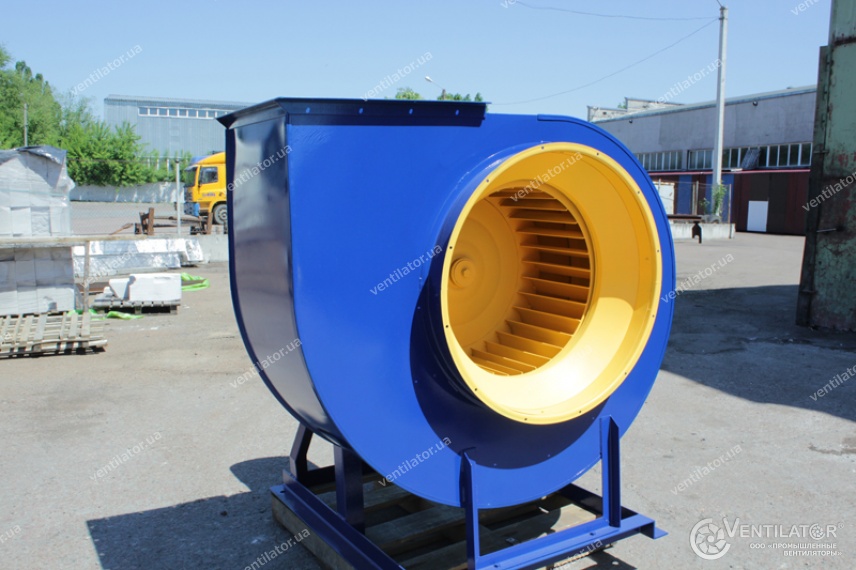

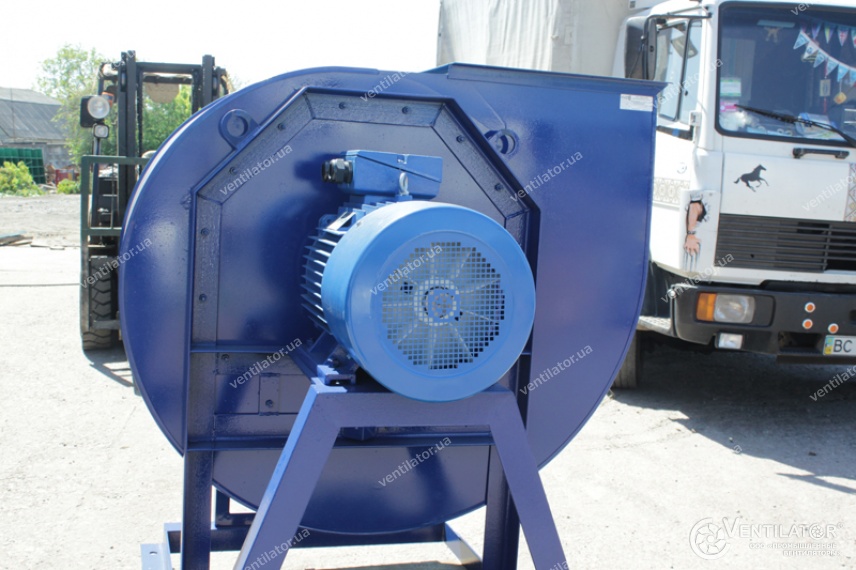

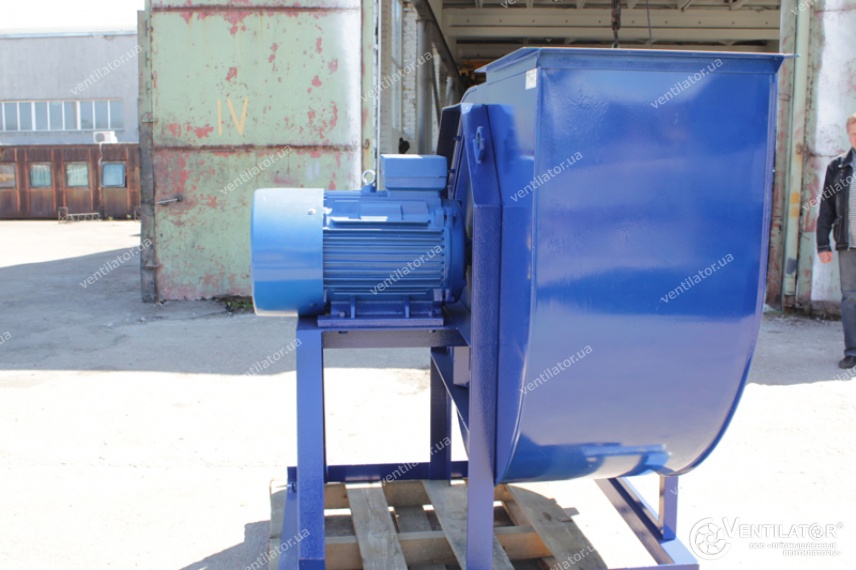

VС 14-46 №6,3 with electric engine AIR 225 M6 37 kW 1000 RPM
Prices for fans with impeller D = 1,05 Dn, D = 1,1 Dn, are specified by manager
Dimensions
Aerodynamic characteristics
VC 14-46 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С
