V 2.3-130 fans

Axial medium pressure fan of one-sided suction B 2.3-130 for moving air and other gas mixtures that do not contain sticky and long-fibrous substances. It is applied in systems of supply and exhaust ventilation, air heating. It is made from carbon steel, dissimilar metals, aluminum alloys.

Models

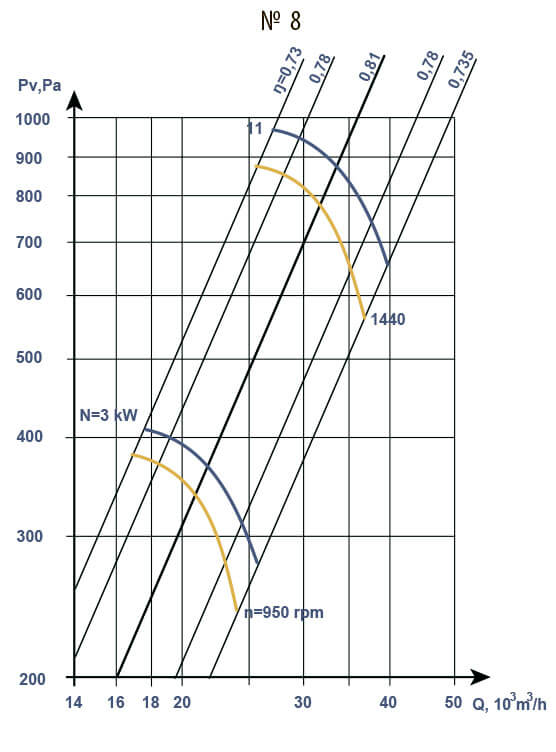

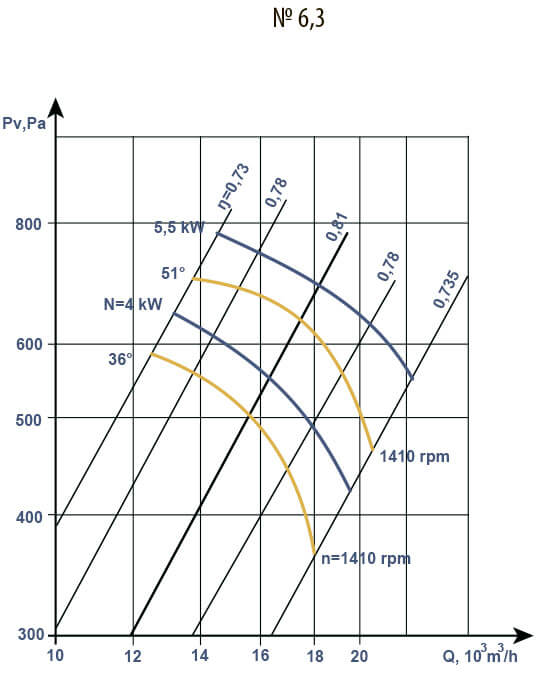

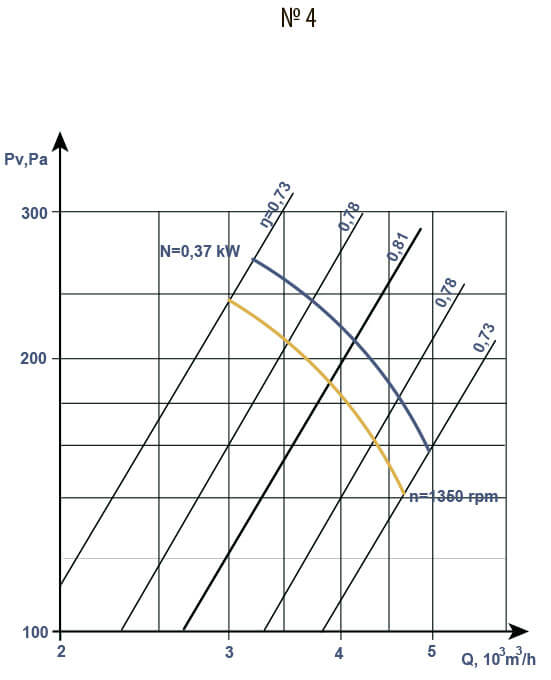

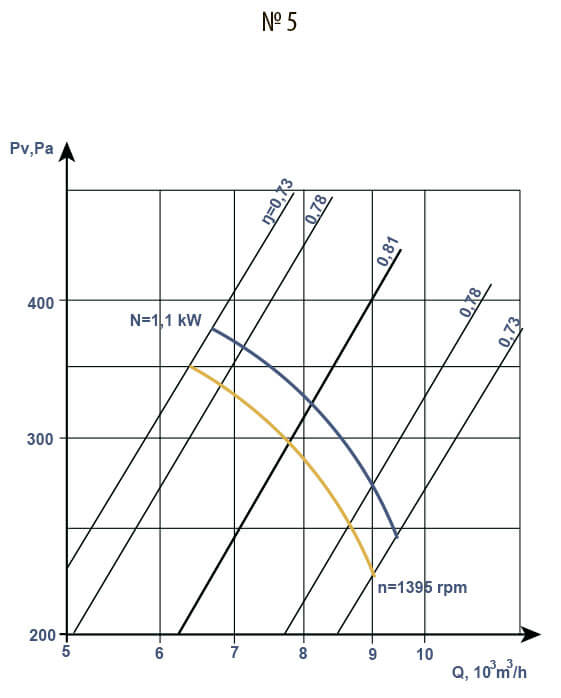

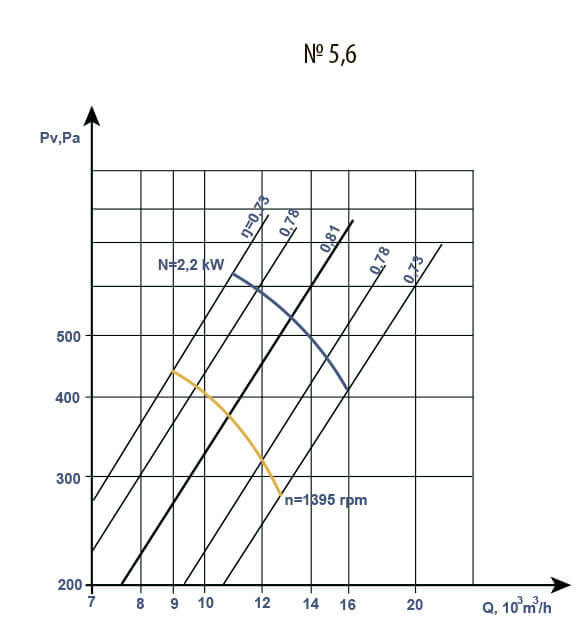

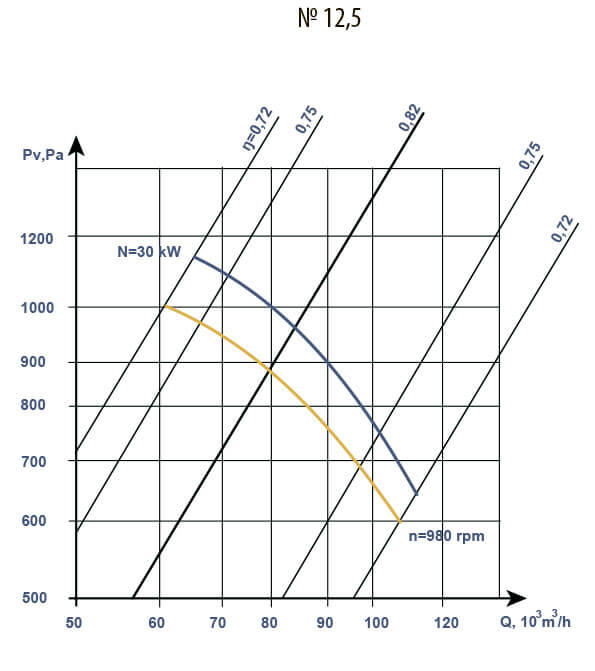

Aerodynamics Graphics

N en, KW	n en, rpm	n w.w. en, rpm	Airflow m3/h		Pressure Pa		ID	Price, UAH
			ηmax	in working zone	ηmax	in working zone
V 2,3-130 №4
0.37	1500	1350	3900	3000-4100	190	240-140	id37709	14855
V 2,3-130 №5
1.1	1500	1395	7800	6450-9000	300	350-230	id37710	19405
V 2,3-130 №5,6
2.2	1500	1395	10000	9000-13000	400	450-280	id37711	Negotiated price
В 2,3-130 №6,3
4	1500	1410	15500	12800-17900	300	580-370	id37712	Negotiated price
5.5	1500	1410	16500	13800-21000	400	700-470	id11018	31659
В 2,3-130 №8
3	1000	950	20940	16990-24270	338	379-244	id11302	41239
11	1500	1440	31760	24910-37090	780	884-573	id11304	50795
В 2,3-130 №10
5.5	750	710	30550	24780-35520	296	330-227	id11305	59164
11	1000	952	40970	33250-47640	531	595-385	id11306	69763
В 2,3-130 №12,5
30	1000	980	80020	61760-109500	867	1008-596	id11308	108297

Fans are manufactured
in accordancewith TU U 28.2-24881057-003:2023:

Carbon steel;
Stainless steel;
Of dissimilar metals.

V 2,3-130 medium pressure axial fans is one of the most popular types of ventilation equipment in its class.

Fans are designed to move air other gas mixtures that do not contain sticky and long-fiber substances. Moves air in the plane of the axis of the impeller. Operates in the temperature range from -40 to +40 ° C with a dust content not more than 10 mg/m3 in the medium.
