| Fan's operating point: Airflow m³/h | 3000-4100 |
|---|---|
| Rotations of impeller, rpm | 1350 |
| Pressure ηmax | 190 |
| Fan's operating point: Pressure, Pa | 240-140 |
| Rotation speed, rpm | 1500 |
| Performance ηmax | 3900 |
| The mass of the fan with el. engine, kg | 25.5 |
| Engine KW / RPM | 0.37/1500 |
| Model | V 2,3-130 №4 |
| Material | Carbon steel |
| Pollution limits, mg/m³ | 10 |
| Max. transported air temperature, °C | 40 |

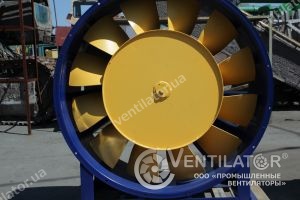

V 2,3-130 №4 with electric motor AIR 63 В4 0,37 kW 1500 rpm

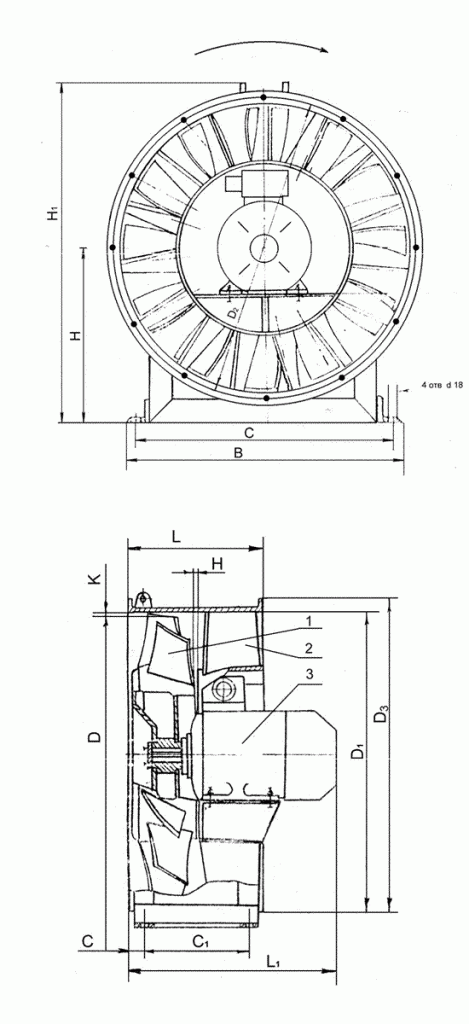

Dimensions
| Model | Overall Dimentions, mm | |||||||||||||||
| B | C | C1 | D | D1 | D2 | D3 | n | H | H1 | K | e | L | L1 | M | n1, шт. | |
| V 2,3-130 №4 with electric motor AIR 63 В4 0,37 kW 1500 rpm | 645 | 600 | 240 | 630 | - | 660 | 695 | 132 | 385 | 725 | 2,5+1,5 | 30,5 | 300 | 540/590 | 3±1 | 32 |
Aerodynamic characteristics
V 2,3-130 fans aerodynamic characteristics, D=Dn
at a temperature of the transported medium 20 ° C and barometric pressure of 760 mm Hg. Art.
Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
