D smoke exhausters
Radial smoke exhausters of one-sided suction to remove flue gases from the furnaces of boiler units. They are used in heat and power engineering, on gas-oil boilers, on steam and hot water boilers. Produced from carbon and stainless steel, dissimilar metals.

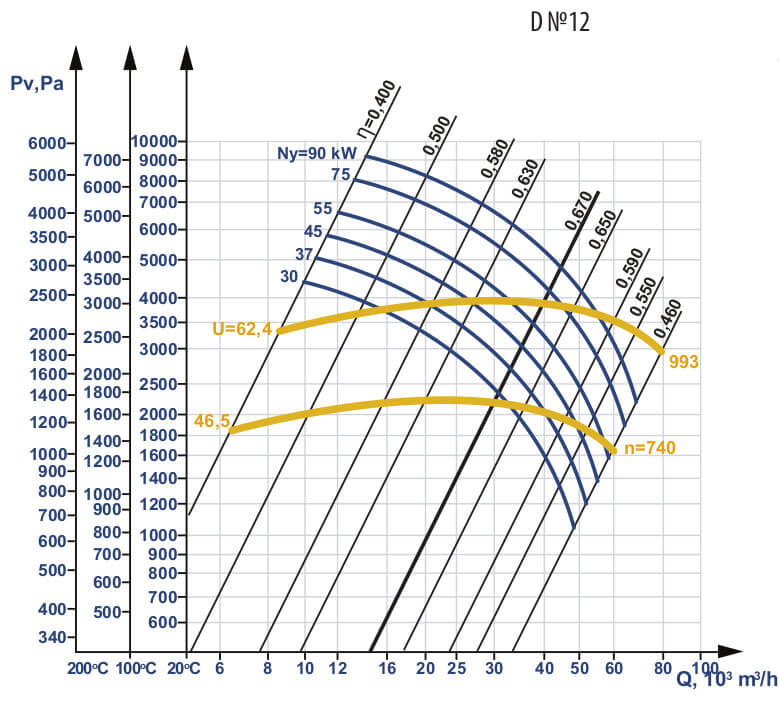

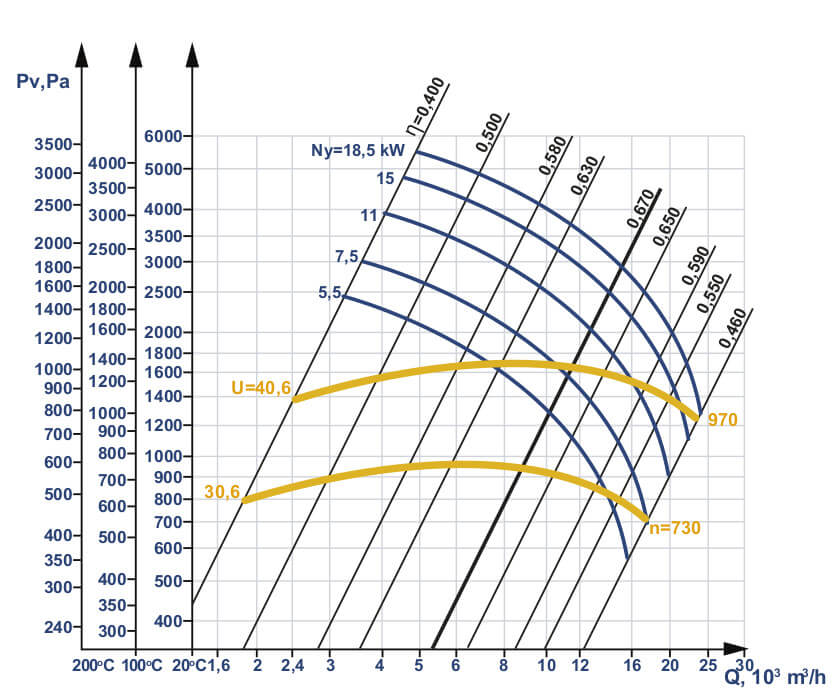

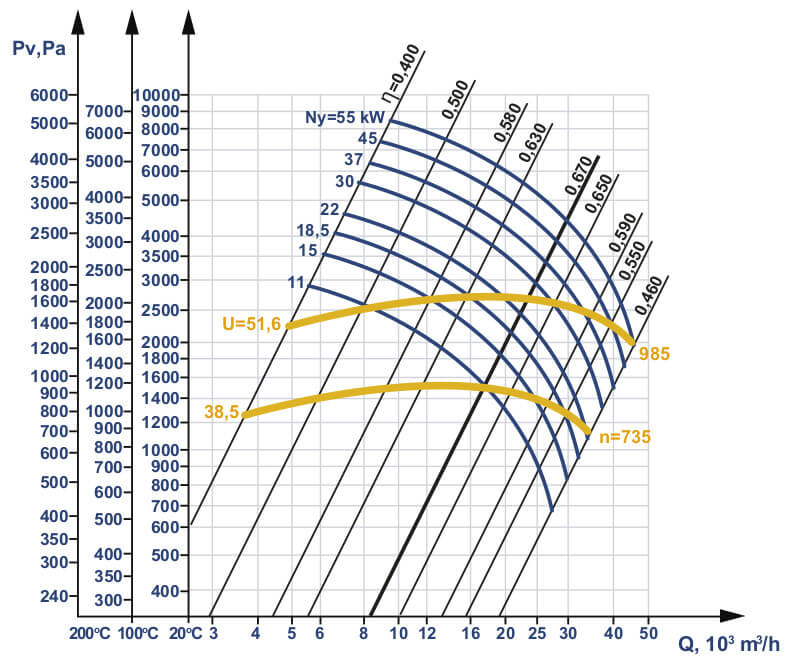

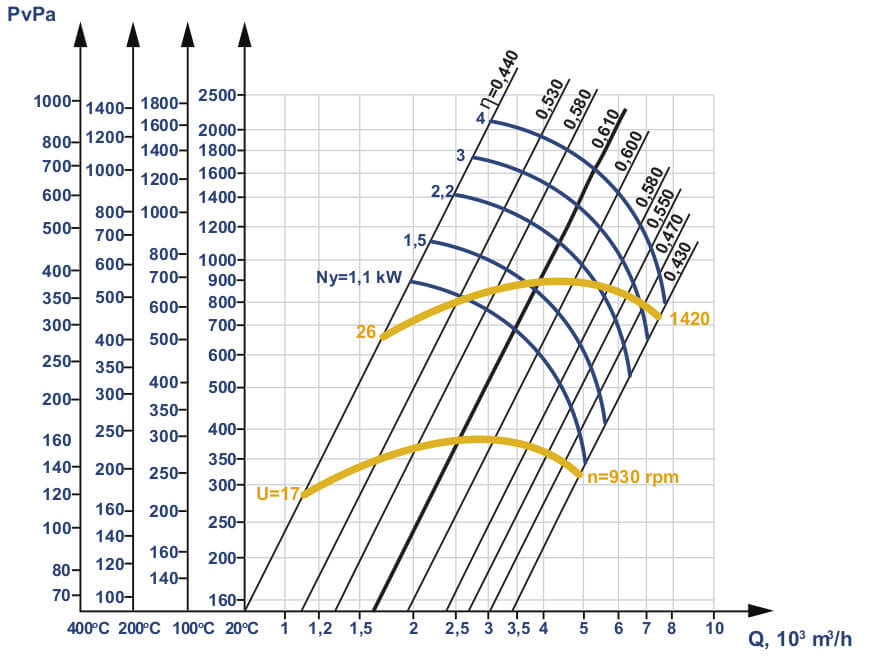

| Execution | D/Dn | N en, KW |
n en, rpm |
Airflow m3/h |
Pressure Pa |
ID |
Price, UAH |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| ηmax | in working zone | ηmax | in working zone | |||||||

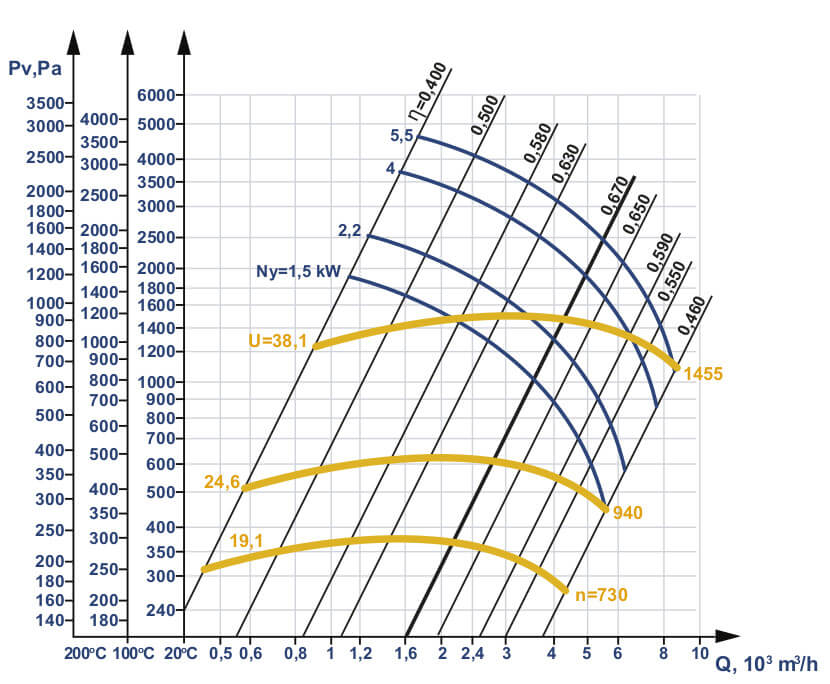

D №5 |
||||||||||
| 1 | 1 | 5.5 | 1500 | 4280 | 900-8530 | 1458 | 1221-1081 | id37654 | Negotiated price | |

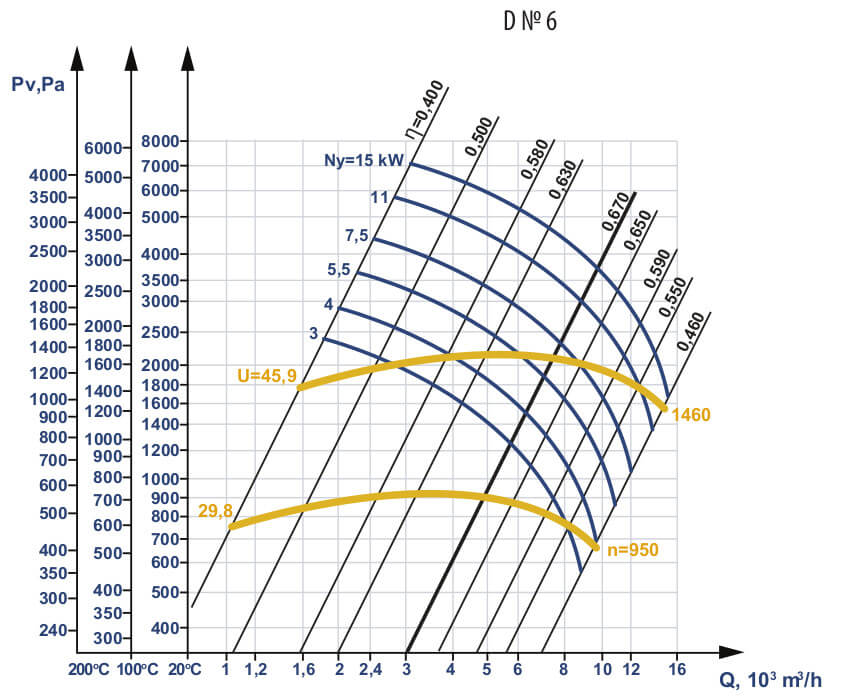

D №6 |
||||||||||
| 1 | 1 | 3 | 1000 | 4830 | 1010-7480 | 895 | 750-849 | id37655 | Negotiated price | |
| 1 | 1 | 4 | 1000 | 4830 | 1010-9620 | 895 | 750-664 | id37656 | Negotiated price | |
| 1 | 1 | 5.5 | 1000 | 4830 | 1010-9620 | 895 | 750-664 | id37657 | Negotiated price | |
| 1 | 1 | 5.5 | 1500 | 6300 | 1560-6300 | 2090 | 1771-2090 | id37658 | Negotiated price | |
| 1 | 1 | 7.5 | 1500 | 7420 | 1560-8500 | 2114 | 1771-2090 | id37659 | Negotiated price | |
| 1 | 1 | 11 | 1500 | 7420 | 1560-11750 | 2114 | 1771-1980 | id37667 | Negotiated price | |
| 1 | 1 | 15 | 1500 | 7420 | 1560-14780 | 2114 | 1771-1980 | id37668 | Negotiated price | |

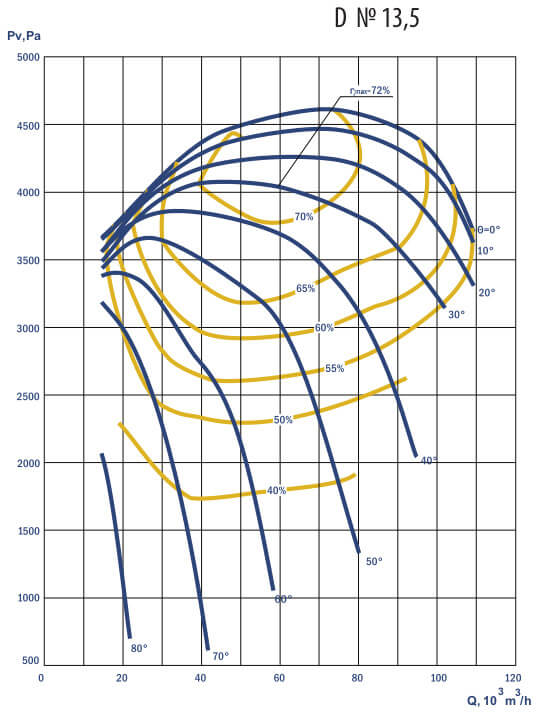

Д №13,5 |
||||||||||
| 3 | 1 | 160 | 1000 | 60000 | 26800-93540 | 4050 | 4100-3400 | id36087 | Negotiated price | |
| 3 | 1 | 200 | 1000 | 60000 | 26800-93540 | 4050 | 4100-3400 | id36088 | Negotiated price | |

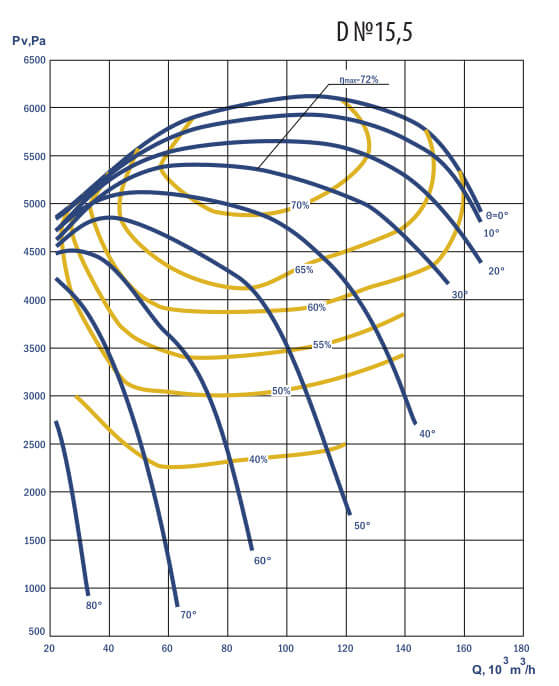

Д №15,5 |
||||||||||
| 3 | 1 | 132 | 750 | 67500 | 22500-112000 | 3010 | 3040-2530 | id36089 | 1136390 | |
| 3 | 1 | 315 | 1000 | 90000 | 30000-150000 | 5350 | 5400-4500 | id36090 | 1176760 | |

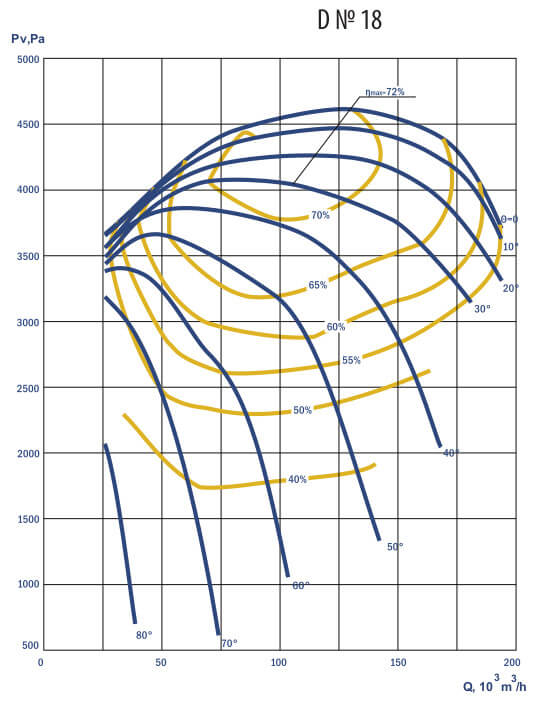

Д №18 |
||||||||||
| 3 | 1 | 132 | 600 | 88000 | 40000-140000 | 2880 | 2590-2180 | id37796 | 1702300 | |
| 3 | 1 | 250 | 750 | 110000 | 50000-175000 | 4050 | 4050-3400 | id36093 | 933796 | |

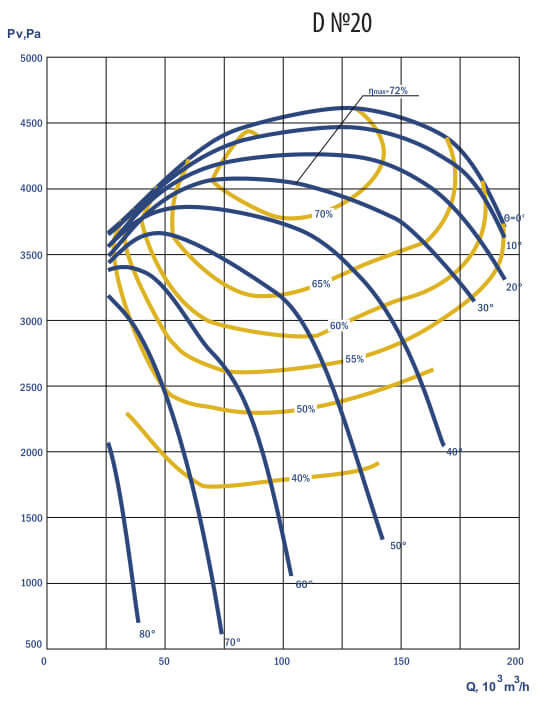

Д №20 |
||||||||||
| 3 | 1 | 250 | 600 | 84800 | 35000-135000 | 2590 | 2600-2530 | id36096 | 2300480 | |
| 3 | 1 | 400 | 750 | 106000 | 43700-169000 | 4050 | 4060-3950 | id36099 | 1213940 | |
Fans are manufactured
in accordancewith TU U 28.2-24881057-003:2023:
- Carbon steel;
- Stainless steel;
- Of dissimilar metals.
D radial smoke exhausters – one of the most popular types of exhausters fans.
D Smoke exhauster is designed for exhausting flue gases from the furnaces of boiler units equipped with ash collecting systems or working on gas-oil mixtures. Designed for long-term indoor and outdoor work in a temperate climate. The maximum temperature of the flue gas at the inlet should not exceed + 200-250 ° C. And in the scroll housing do not fall below -30 ° C. Dustiness of flue gases is not higher than 2 g/m3.
D smoke exhauster are used:
- in heat power engineering;
- on gas-and-oil-fired boilerх;
- on steam and hot water boilers;
- for other sanitation-production purposes.
General information about smoke exhausters:
- Single suction;
- Spiral rotary framework;
- Forward curved blades;
- Quantity of blades – 32;
- Direction of rotation – right and left.

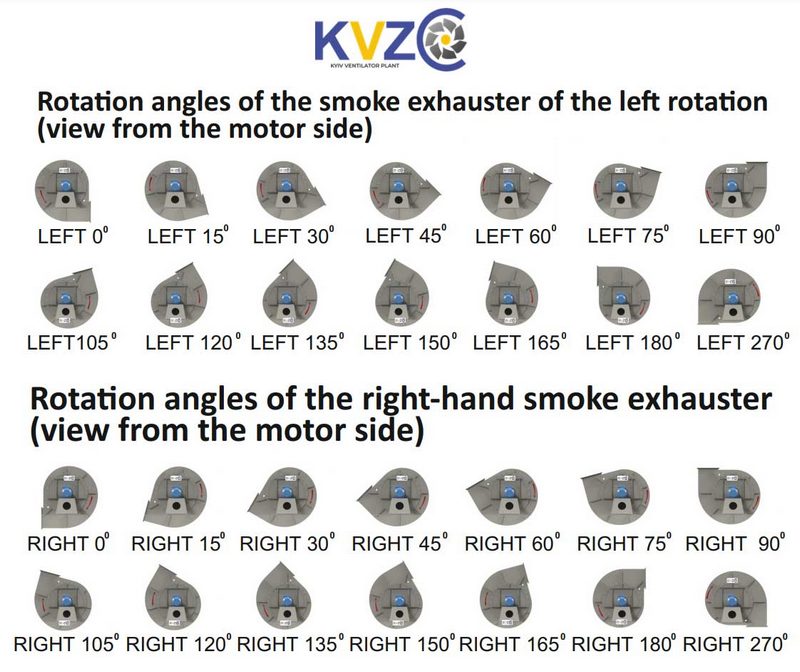

Depending on the direction of smoke exhausters` rotation are made right or left-hand Right-hand smoke exhausters with a wheel rotating clockwise, left rotation – with a wheel rotating counter-clockwise when viewed from the motor side.
