Dx2 smoke exhausters

Dx2 smoke exhausters
Radial smoke exhausters for suction of flue gases from the furnaces of boiler units equipped with ash collection systems or working on gas-oil mixtures. The maximum flue gas temperature at the inlet should not exceed 200 °C.
N en, KW n en,
rpm 		n w.w. en,
rpm 		Airflow
m3/h 		Pressure
Pa 		ID Price,
UAH
ηmax in working zone ηmax in working zone

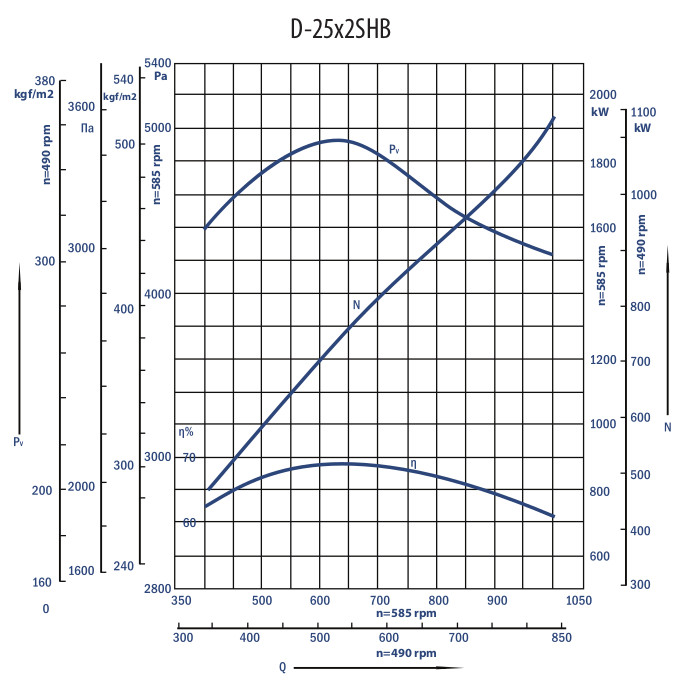

D-25x2SHB
1600 600 585 640000 400000-1000000 4900 4920-4220 id40078 Negotiated price

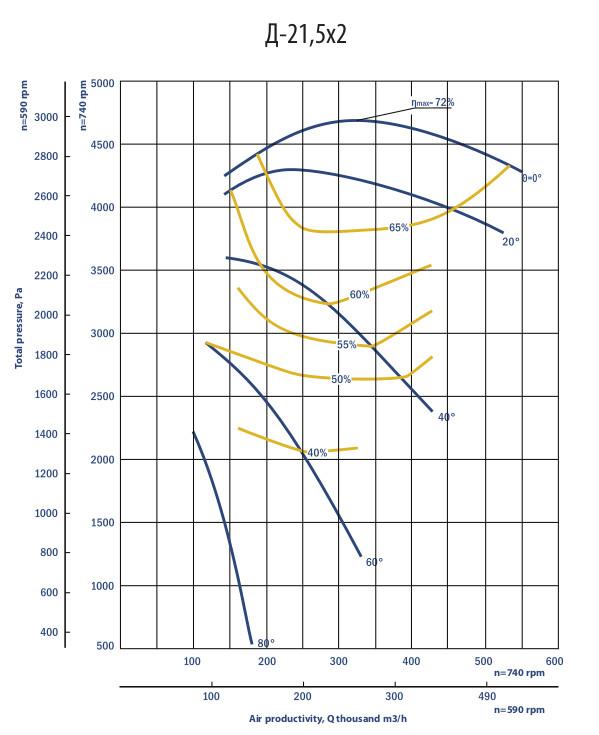

D-21,5x2
1000 750 740 305000 175000-514800 4700 4700-4400 id14543 Negotiated price
800 750 740 305000 175000-514800 4700 4700-4400 id14542 Negotiated price
630 750 740 305000 175000-514800 4700 4700-4400 id14541 Negotiated price
800 600 590 242000 138210-408100 3000 3000-2780 id14540 Negotiated price
630 600 590 242000 138210-408100 3000 3000-2780 id14539 Negotiated price
500 600 590 242000 138210-408100 3000 3000-2780 id14538 Negotiated price

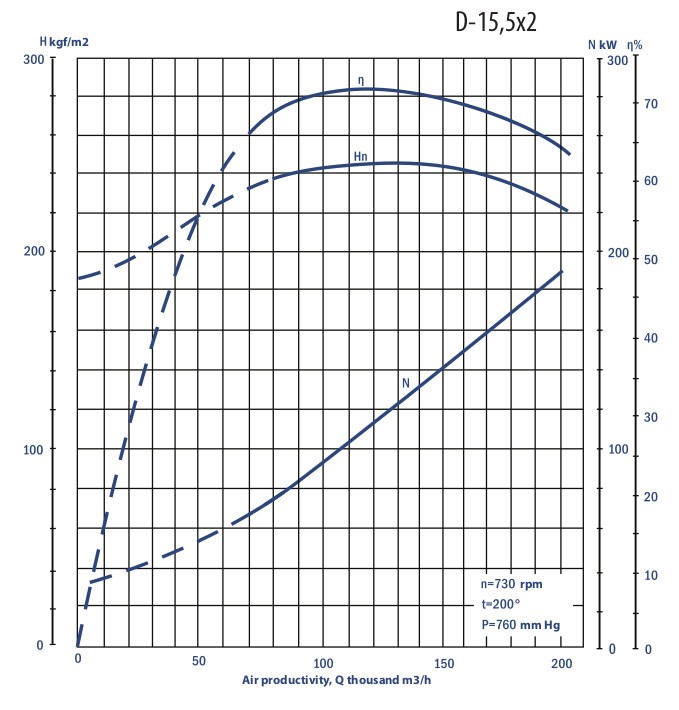

D-15,5x2
630 1000 950 143600 91470-260500 5220 5220-4780 id13757 Negotiated price
315 750 730 110400 70350-200700 3080 3080-2820 id13668 Negotiated price

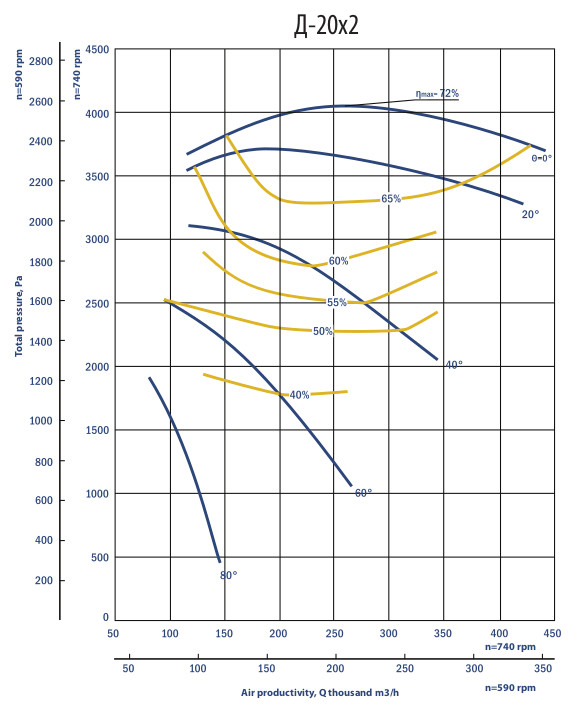

D-20x2
400 600 580 180000 125000-343000 2600 2620-2430 id14537 Negotiated price
400 750 730 224000 420000-368000 4180 4200-3680 id14225 Negotiated price

D-18x2
630 750 730 172600 110100-314000 4130 4140-3810 id14535 Negotiated price
315 600 580 137300 87530-249800 2610 2610-2400 id14223 Negotiated price
Dx2 smoke exhausters

Smoke exhausters are manufactured in accordance with TU U 28.2-24881057-003:2023:

  • from carbon steel;

Dx2 radial smoke exhauster is one of the most popular of the exhaust fans.

Dx2 Smoke exhausters are designed for flue gases suction from furnaces of boiler units equipped with ash collecting systems or working on gas-oil mixtures. Designed for long-term indoor and outdoor working in the temperate climate. The maximum temperature of the flue gas at the input must not exceed + 200°C. And in the scroll housing do not fall below -30°C. Dustiness of flue gases is not higher than 2 g/m3.

Dx2 smoke exhausters are used:

  • in the heat power engineering;
  • on the gas-and-oil-fired boiler;
  • on the steam boiler and hot-water boiler;
  • for other sanitary-industrial purposes.

Smoke exhauster s general information:

  • Double-suction ;
  • Spiral rotary body;
  • Forward curved blades;
  • Quantity of the Dx2 blades-32;
  • The direction of rotation is right and left-hand.
Инфоблок

Depending on the direction of smoke exhausters` rotation are made right or left-hand. Right-hand smoke exhausters with a wheel rotating clockwise, left rotation – with a wheel rotating counter-clockwise when viewed from the motor side.
