Medium-pressure fans VTS 10-28

Medium-pressure fans VTS 10-28
Centrifugal fan of medium pressure unilateral suction VTs 10-28 for moving air and other gas mixtures with temperatures up to + 80°С. The concentration in the moving air flow of solid mechanical impurities does not exceed 100 mg/m3, there are no sticky and fibrous impurities. It is used in ventilation systems, air heating and air conditioning. It is made of carbon or stainless steel, aluminum alloys and dissimilar metals.
Execu­tion D/Dn N en, KW n en,
rpm 		n w.w. en,
rpm 		Airflow
m3/h 		Pressure
Pa 		ID Price,
UAH
ηmax in working zone ηmax in working zone

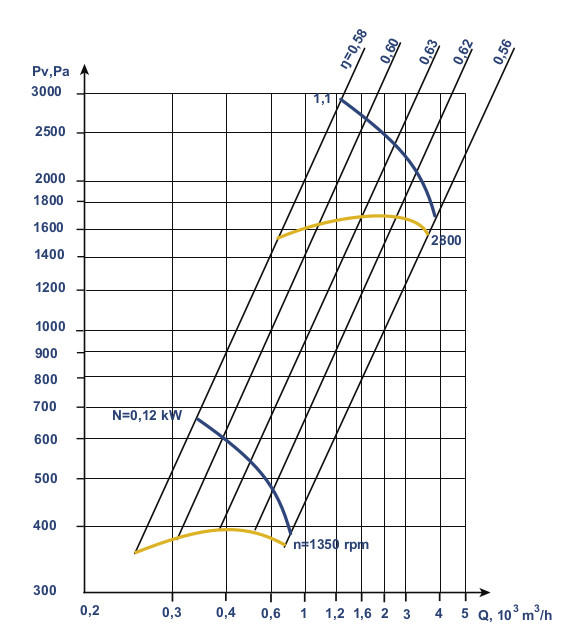

ВЦ 10-28 (ВР 200-28) №2,5
1 1 0.12 1500 1350 391 250-560 390 353-393 id8572 9307
1 1 1.1 3000 2800 820 530-1160 1684 1518-1690 id8790 12809

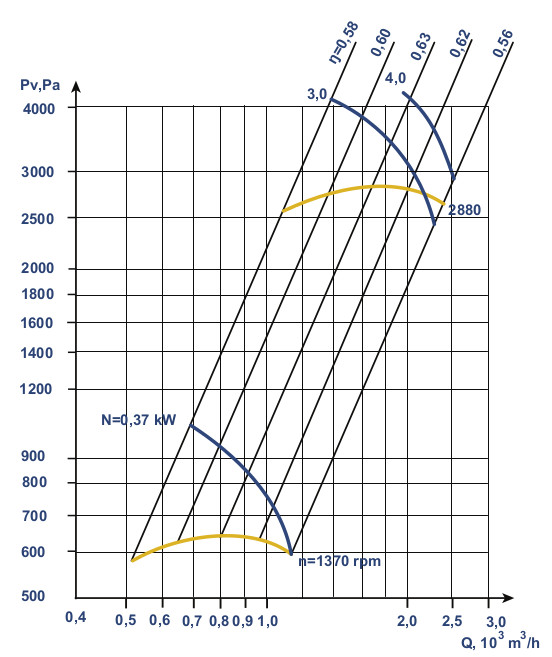

ВЦ 10-28 (ВР 200-28) №3,15
1 1 0.37 1500 1365 800 1530-1140 640 578-641 id8800 12718
1 1 4 3000 2880 1670 1070-2370 2821 2548-2828 id8809 19798

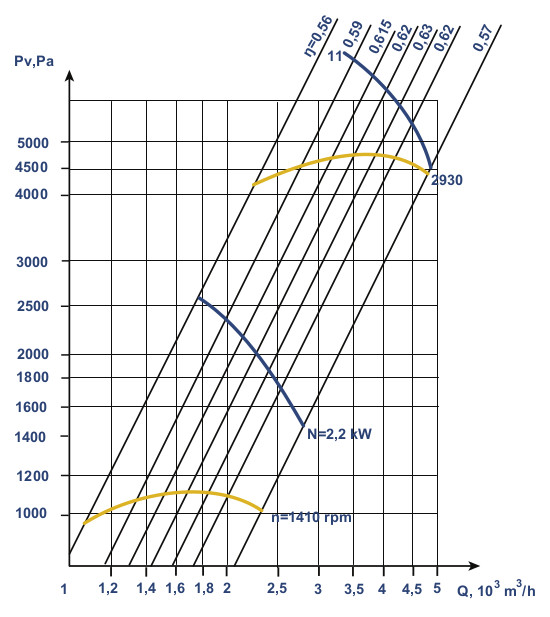

ВЦ 10-28 (ВР 200-28) №4
1 1 2.2 1500 1410 1840 1080-2340 1095 971-1096 id8810 26209
1 1 11 3000 2930 3820 2250-4850 4745 4191-4750 id8811 38983

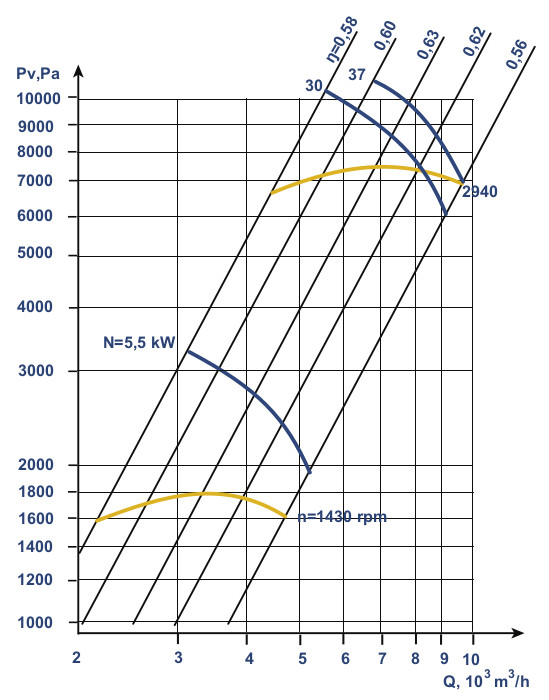

ВЦ 10-28 (ВР 200-28) №5
1 1 5.5 1500 1430 3310 2160-4710 1757 1579-1759 id8812 47289
1 1 37 3000 2940 6810 4450-9690 7420 6672-7431 id8813 101749
Medium-pressure fans VTS 10-28

Fans are manufactured in accordance withTU U 28.2-24881057-003:2023:

  • from carbon steel;
  • from stainless steel;
  • from dissimilar metals;
  • from aluminum alloys.

VC 10-28 Centrifugal medium-pressure fans is most popular type of ventilation equipment.

The fans are intended for use in rooms where the concentration in the moving air stream of solid mechanical dust impurities does not exceed 100 mg/m3 with a temperature up to + 80 ° C and in the absence of any impurities having a fibrous structure or sticky properties.

VC 10-28 fans are used:

  • in air conditioning systems;
  • in ventilation systems;
  • in pneumatic conveying systems of ejection type;
  • for other sanitation-production purposes.

General information about fans:

  • Single suction;
  • Spiral rotary body;
  • Forward curved blades;
  • Quantity of blades 48;
  • Direction of rotation – right and left.
Инфоблок

Depending on the direction of rotation, the fans are produced in the right or left rotation. Right-hand fans with a wheel rotating clockwise, left rotation – with a wheel rotating counter-clockwise when viewed from the suction side of the fan.
