ВЦ 10-28 (ВР 200-28) №2,5 с эл.двигателем АИР 71 A2 0,75 кВт 3000 об/мин
ВЦ 10-28 (ВР 200-28) №2,5 с эл.двигателем АИР 71 A2 0,75 кВт 3000 об/мин
ВЦ 10-28 (ВР 200-28) №2,5 с эл.двигателем АИР 71 A2 0,75 кВт 3000 об/мин
ВЦ 10-28 (ВР 200-28) №2,5 с эл.двигателем АИР 71 A2 0,75 кВт 3000 об/мин

VС 10-28 (VR 200-28) №2,5 with electric engine AIR 71 B2 1,1 kW 3000 RPM

ID 8790  In stock
Choose another ›
Choose another ›
Choose another ›
Choose another ›
ID 8790  In stock
D/Dn 1
Fan's operating point: Pressure, Pa 1518-1690
Material Carbon steel
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Fan's operating point: Airflow m³/h 530-1160
Pollution limits, mg/m³ 100
Model ВЦ 10-28 (ВР 200-28) №2,5
Engine KW / RPM 1,1 / 3000
Design Schema №1
Rotations of impeller, rpm 2800
Performance ηmax 820
Pressure ηmax 1684

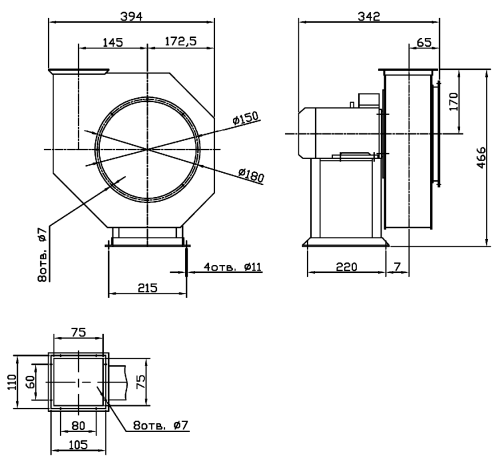

Dimensions

Габаритные размеры

Reviews

There are no reviews yet.

Be the first to review “VС 10-28 (VR 200-28) №2,5 with electric engine AIR 71 B2 1,1 kW 3000 RPM”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 10-28 fan aerodynamic characteristics, Modification 1, D=Dn
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamics

Q - air capacity, thousand m3/h
Pv - total pressure, Pa
η - eficiency factor
N - power consumption of the engine, kW
n -quantity of rotation of the impeller, rpm
