Low pressure fans VC 4-75

The centrifugal low-pressure fan of one-sided suction of the VC 4-75 is designed to move air and other gas mixtures with a temperature of up to + 80 °C and a concentration of solid mechanical dust impurities of not more than 100 mg/m3. It is used in ventilation systems, air heating, and air conditioning. It is made from carbon or stainless steel, dissimilar metals.

Models

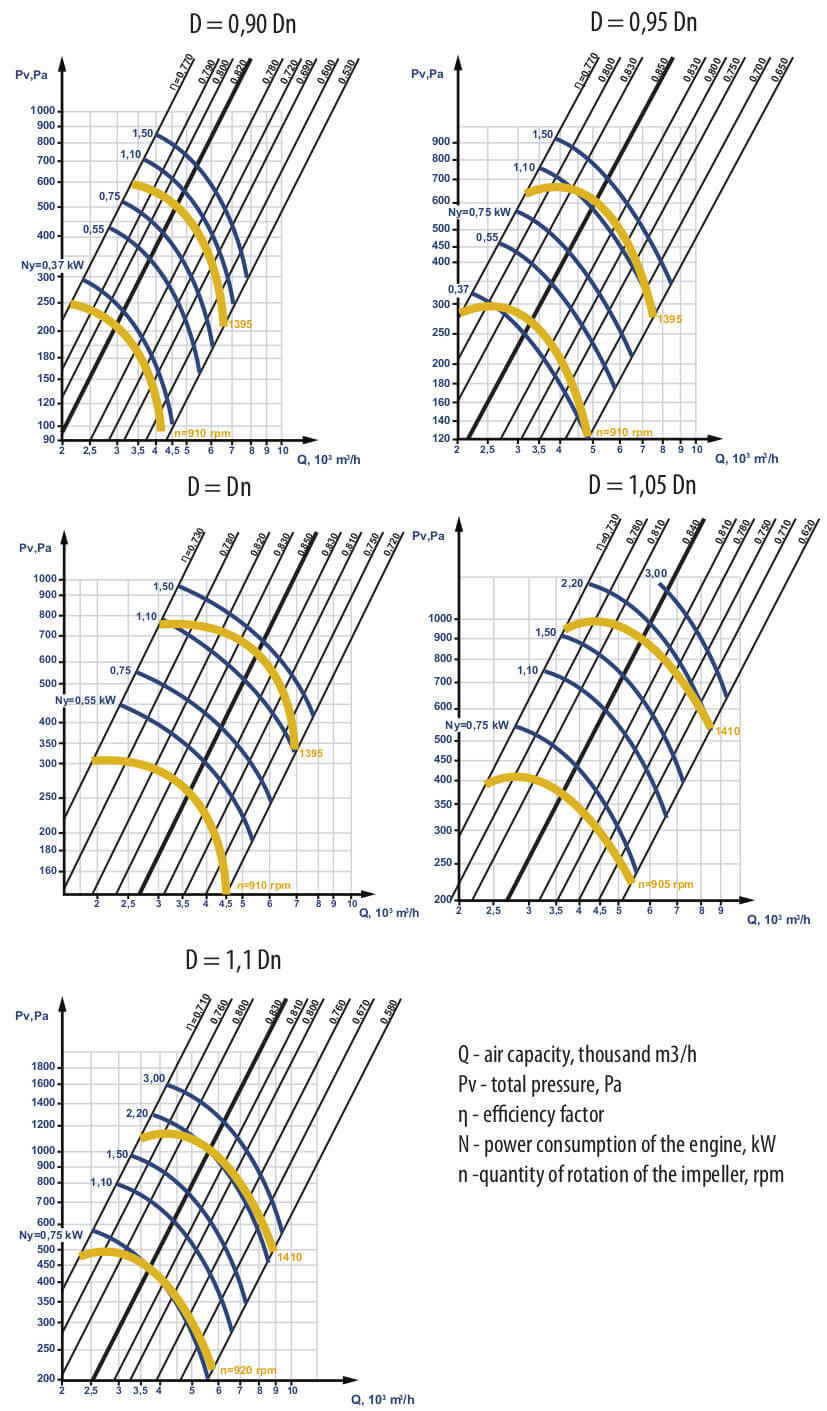

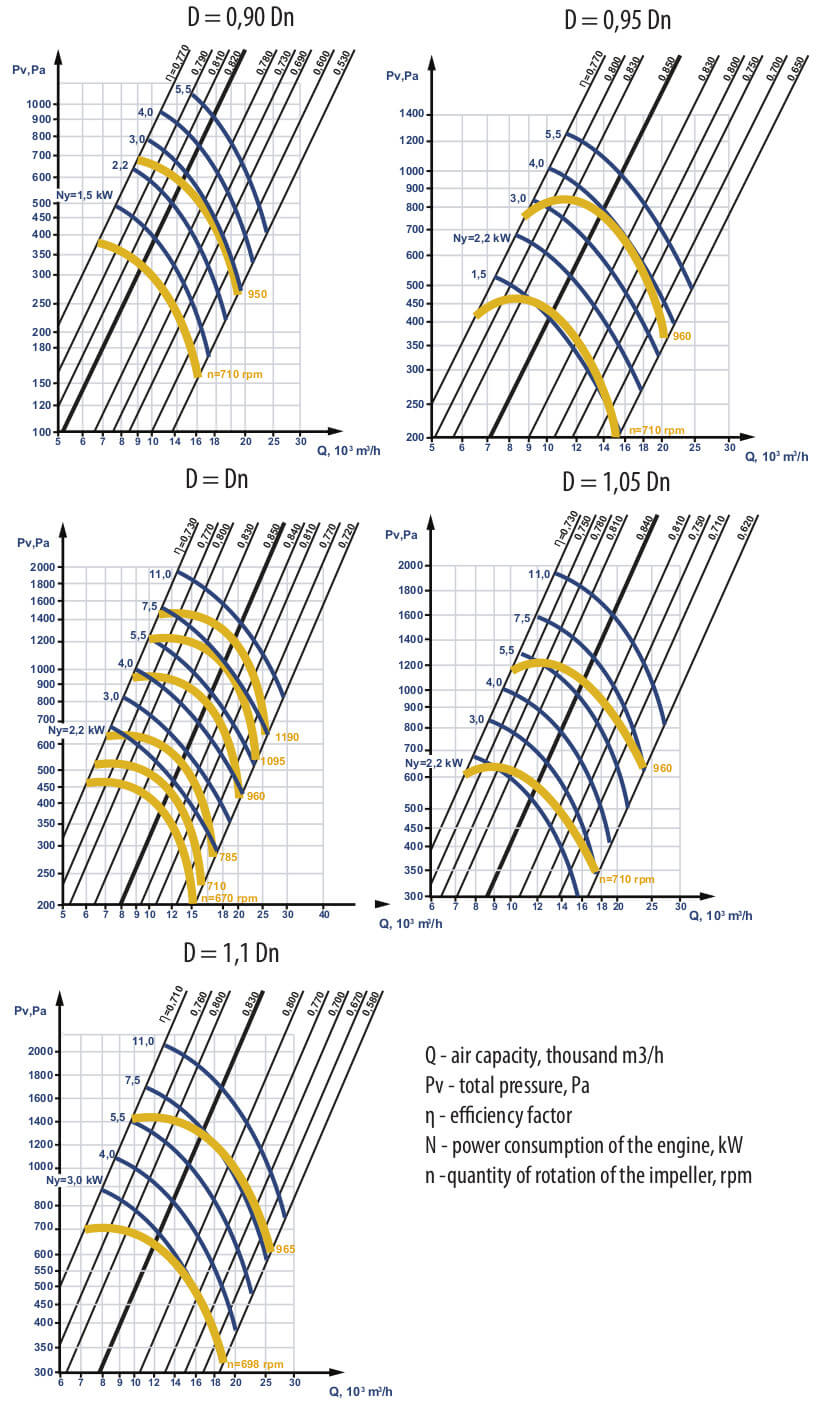

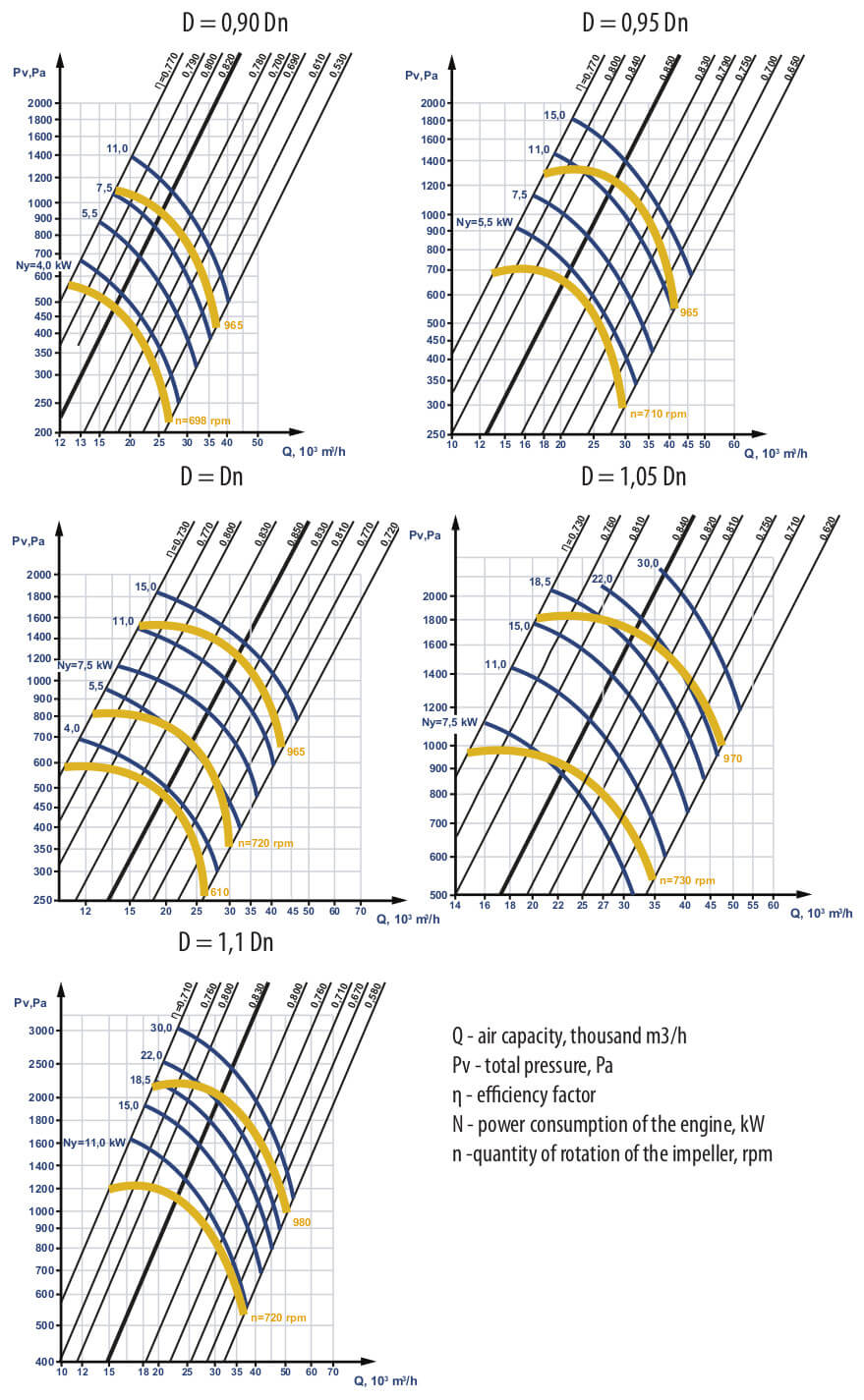

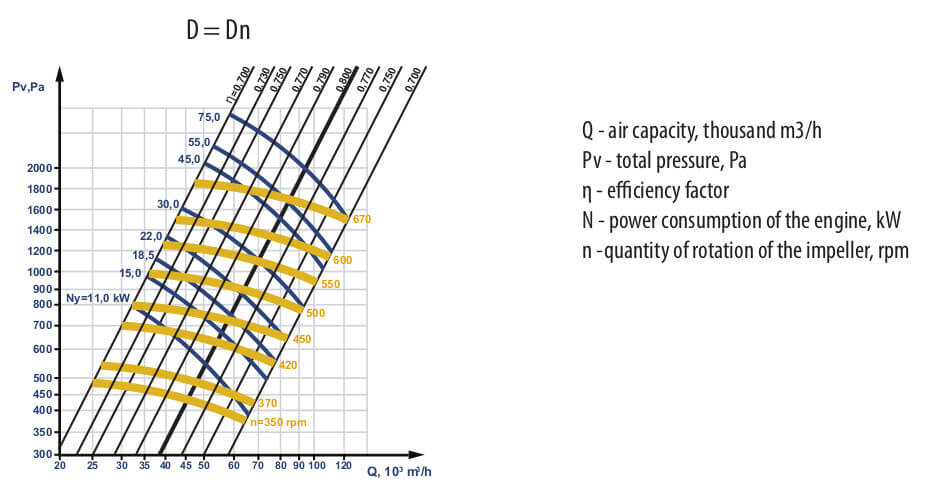

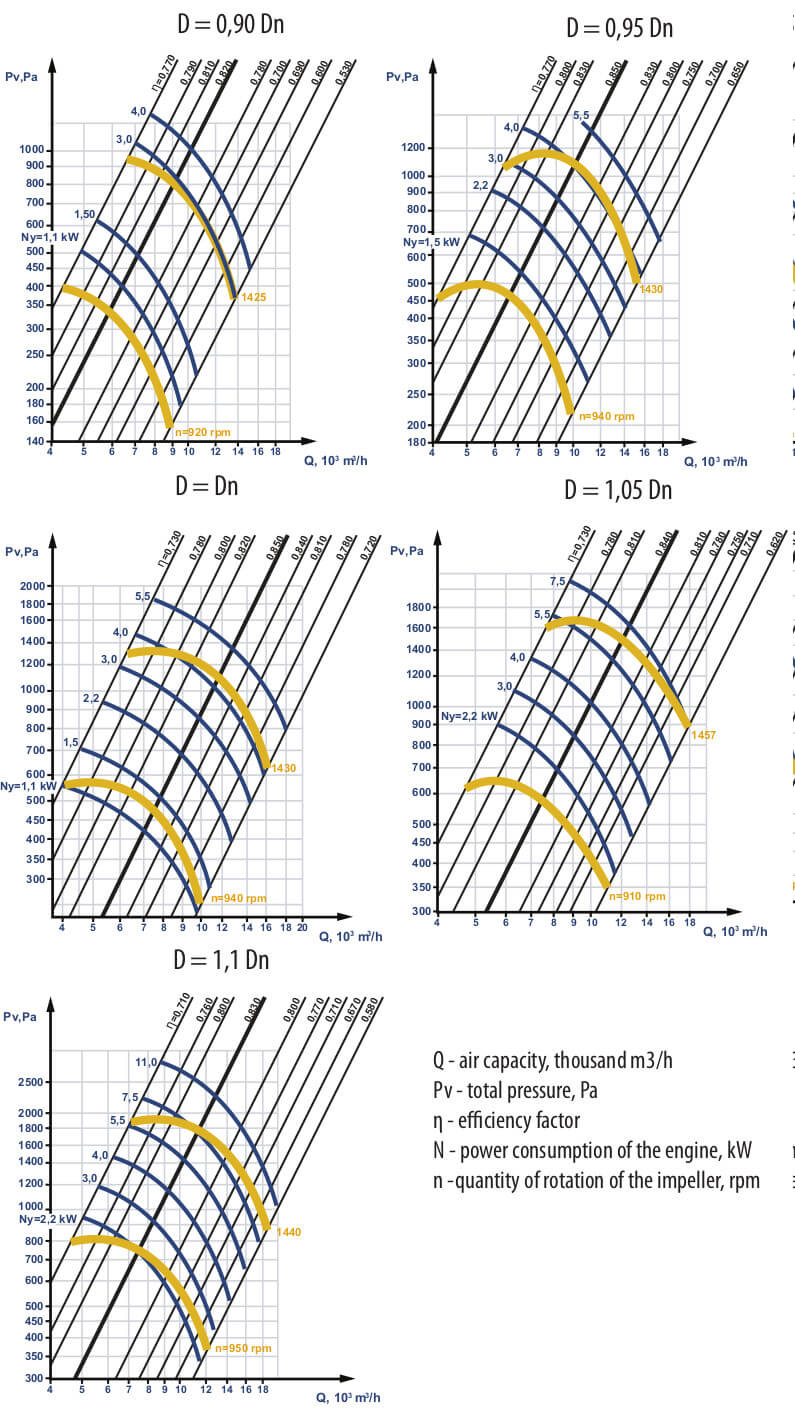

Aerodynamics Graphics

Execution	D/Dn	N en, KW	n en, rpm	n w.w. en, rpm	Airflow m3/h		Pressure Pa		ID	Price, UAH
					ηmax	in working zone	ηmax	in working zone
ВЦ 4-75 №2,5
1	0.9	0.37	3000	2810	1145	840-1730	452	520-200	id8417	7444
1	0.95	0.55	3000	2730	1215	760-1790	577	618-260	id8418	7952
1	1	0.55	3000	2730	1405	770-1800	545	665-295	id8418	7952
1	1.05	0.75	3000	2850	1425	900-2060	814	898-476	id8419	Negotiated price
1	1.1	0.75	3000	2850	1455	890-2290	960	1050-465	id8419	Negotiated price
ВЦ 4-75 №3,15
1	0.9	0.18	1500	1350	1085	800-1650	172	202-76	id8468	7974
1	0.9	1.1	3000	2800	2205	1670-3440	735	864-327	id8476	11164
1	0.95	0.18	1500	1350	1175	750-1720	222	242-104	id8468	7974
1	0.95	1.1	3000	2800	2555	1570-3640	935	1018-428	id8476	11164
1	1	0.18	1500	1350	1335	740-1750	232	275-130	id8468	7974
1	1	1.5	3000	2800	2995	1640-3910	1063	1267-612	id8477	11309
1	1.05	0.37	1500	1370	1615	880-2060	271	340-180	id8470	Negotiated price
1	1.05	2.2	3000	2760	3335	1830-4230	1110	1364-732	id8500	Negotiated price
1	1.1	0.37	1500	1370	1375	830-2150	365	401-177	id8470	Negotiated price
1	1.1	2.2	3000	2760	2825	1700-4440	1494	1650-730	id8500	Negotiated price
ВЦ 4-75 №4
1	0.9	0.18	1000	885	1465	1090-2200	122	142-55	id8512	13582
1	0.9	0.55	1500	1365	2315	1710-3430	295	347-131	id8524	14046
1	0.9	3	3000	2865	4865	3630-7300	1285	1515-575	id8529	16265
1	0.95	0.18	1000	885	1625	1010-2400	153	174-74	id8512	13582
1	0.95	0.55	1500	1365	2505	1550-3700	376	409-173	id8524	14046
1	0.95	4	3000	2880	5275	3270-7800	1648	1796-754	id8530	19600
1	1	0.18	1000	885	1835	1010-2430	163	199-89	id8512	13582
1	1	0.55	1500	1365	2815	1550-3710	373	463-205	id8524	14046
1	1	4	3000	2880	5285	3260-7820	1635	1991-888	id8530	19600
1	1.05	0.25	1000	860	1805	1110-2630	204	225-125	id8519	Negotiated price
1	1.05	1.1	1500	1420	2925	1820-4100	551	594-298	id8526	Negotiated price
1	1.05	7.5	3000	2900	6065	3770-8900	2363	2560-1384	id8532	Negotiated price
1	1.1	0.37	1000	910	1855	1120-2940	270	292-131	id8521	Negotiated price
1	1.1	1.1	1500	1420	3000	1780-4700	674	737-333	id8526	Negotiated price
1	1.1	11	3000	2930	6155	3730-9750	2844	3112-1394	id8533	Negotiated price
ВЦ 4-75 №5
1	0.9	0.37	1000	910	2955	2140-1410	210	245-99	id8534	18158
1	0.9	1.5	1500	1395	4635	3350-6550	504	592-212	id8538	19390
1	0.95	0.55	1000	910	3285	2080-4770	266	292-121	id8535	18520
1	0.95	1.5	1500	1395	5115	3230-7430	561	670-273	id8538	19390
1	1	0.55	1000	910	3565	1940-4510	262	322-144	id8535	18520
1	1	1.5	1500	1395	5505	2970-7010	637	751-345	id8538	19390
1	1.05	0.75	1000	905	3645	2320-4500	374	411-223	id8536	Negotiated price
1	1.05	3	1500	1410	5725	3660-8470	905	996-541	id8540	Negotiated price
1	1.1	1.1	1000	920	3715	2270-5760	444	486-218	id8537	Negotiated price
1	1.1	3	1500	1410	5675	3480-8780	1024	1130-505	id8540	Negotiated price
ВЦ 4-75 №6,3
1	0.9	1.1	1000	920	5885	4280-8850	333	394-159	id8611	26490
1	0.9	4	1500	1425	9155	6670-13770	804	950-378	id8626	30637
1	0.95	1.5	1000	940	6595	4140-9810	464	502-215	id8618	28767
1	0.95	5.5	1500	1430	10115	6360-15050	1085	1172-508	id8627	34770
1	1	1.5	1000	940	7425	4000-1080	472	565-255	id8618	28767
1	1	5.5	1500	1430	11495	6140-15560	1115	1323-606	id8627	34770
1	1.05	2.2	1000	910	7385	4700-10970	581	652-347	id8622	Negotiated price
1	1.05	7.5	1500	1457	12015	7640-17480	1490	1661-932	id8628	Negotiated price
1	1.1	3	1000	950	7575	4680-12120	743	811-367	id8624	Negotiated price
1	1.1	11	1500	1440	11525	7120-18480	1771	1924-873	id8629	Negotiated price
ВЦ 4-75 №8
1	0.9	1.5	750	710	9300	6760-13960	322	371-148	id8630	47120
1	0.9	3	1000	950	12425	9040-18680	574	674-264	id37721	50339
1	0.95	2.2	750	710	10195	6410-15180	424	456-196	id8631	54250
1	0.95	5.5	1000	960	13775	8680-20520	778	836-363	id8634	60021
1	1	2.2	750	710	11755	6490-15210	438	525-233	id8631	54250
5.1	1	2.2	1000	670	11085	6120-14340	386	464-206	id8641	87385
1	1	3	1000	785	12985	7170-16800	530	644-285	id37721	50339
1	1	5.5	1000	960	15885	8760-20530	790	954-425	id8634	60021
5.1	1	7.5	1000	1095	18135	10000-23440	1028	1244-554	id8700	100319
5.1	1	11	1500	1190	19705	10870-25460	1216	1470-656	id8701	100740
1	1.05	3	750	710	11785	7530-17400	573	641-344	id8632	Negotiated price
1	1.05	7.5	1000	960	15925	10180-23550	1048	1168-628	id8635	Negotiated price
1	1.1	4	750	698	11375	7020-18250	641	704-319	id8633	Negotiated price
1	1.1	11	1000	965	15725	9720-25220	1282	1353-610	id8636	Negotiated price
ВЦ 4-75 №10
1	0.9	4	750	698	17835	12880-26470	480	564-210	id8703	94353
1	0.9	11	1000	965	25855	17940-36860	932	1090-412	id8707	107475
1	0.95	5.5	750	710	20625	12980-29800	655	712-295	id8704	96876
1	0.95	15	1000	965	28365	17870-41010	1221	1333-547	id8708	112405
5.1	1	4	1000	610	20000	10640-25800	494	588-261	id8712	142174
1	1	7.5	750	720	23835	12560-30540	682	818-358	id8705	105692
1	1	15	1000	965	32165	16960-42660	1209	1450-671	id8708	112405
1	1.05	11	750	720	23215	14920-34500	920	988-543	id8706	Negotiated price
1	1.05	30	1000	980	30805	20440-47240	1709	1840-1010	id8711	Negotiated price
1	1.1	11	750	720	22915	14160-36770	1077	1177-530	id8706	Negotiated price
1	1.1	30	1000	980	31175	19280-50050	1991	2170-988	id8711	Negotiated price
ВЦ 4-75 №12,5
5.1	0.9	3	1000	425	21205	15420-31930	282	330-131	id8722	181849
5.1	0.9	4	1000	475	23705	17220-35670	354	418-161	id8723	184183
5.1	0.9	5.5	1000	530	26435	19230-39810	438	517-206	id8724	187910
5.1	0.9	7.5	1000	590	29435	21400-44310	542	636-244	id8725	190984
5.1	0.9	11	1000	670	33435	24310-50330	695	821-324	id8726	221455
1	0.9	15	750	730	36425	26470-54840	827	976-383	id8714	157703
5.1	0.9	18.5	1000	800	39905	29020-60100	998	1111-460	id8728	236448
5.1	0.95	4	1000	425	23275	14660-34660	372	400-174	id8723	184183
5.1	0.95	5.5	1000	475	26025	16380-38740	465	501-218	id8724	187910
5.1	0.95	7.5	1000	530	29035	18280-43230	572	620-270	id8725	190984
5.1	0.95	11	1000	600	32855	20710-48930	741	796-344	id8726	221455
5.1	0.95	15	1000	670	36705	23110-54640	927	990-435	id8727	226878
1	0.95	18.5	750	735	40255	25370-59950	1114	1194-522	id8715	172493
5.1	0.95	30	1000	800	43825	27600-65250	1313	1410-615	id8730	258762
5.1	1	4	1000	420	26515	14570-35260	376	445-198	id8723	184183
5.1	1	5.5	1000	470	29678	16320-38340	464	561-248	id8724	187910
5.1	1	7.5	1000	520	32845	18060-42420	572	680-304	id8725	190984
5.1	1	11	1000	590	37255	20480-48130	733	881-395	id8726	221454.2
5.1	1	15	1000	660	41685	22920-53840	915	1105-490	id8727	226877.2
1	1	22	750	730	46105	25340-59540	1120	1348-602	id8716	177786
5.1	1	30	1000	800	50515	27780-65260	1343	1626-720	id8730	258761.8
5.1	1.05	7.5	1000	450	28385	18120-41950	566	620-334	id8725	Negotiated price
5.1	1.05	11	1000	510	32165	20540-47540	723	797-433	id8726	Negotiated price
5.1	1.05	15	1000	560	35305	22540-52210	871	960-525	id8727	Negotiated price
5.1	1.05	18.5	1000	600	37825	24150-55940	994	1102-603	id8728	Negotiated price
5.1	1.05	22	1000	640	40365	25780-59660	1130	1254-685	id8729	Negotiated price
1	1.05	37	750	735	46345	29600-68530	1493	1654-894	id8718	Negotiated price
5.1	1.1	7.5	1000	430	26725	16530-42880	597	651-297	id8725	Negotiated price
5.1	1.1	11	1000	480	29825	18450-47870	747	813-366	id8726	Negotiated price
5.1	1.1	15	1000	540	33555	20760-53850	942	1030-461	id8727	Negotiated price
5.1	1.1	18.5	1000	580	36045	22300-57850	1091	1184-540	id8728	Negotiated price
5.1	1.1	22	1000	620	38525	23840-61840	1242	1355-614	id8729	Negotiated price
5.1	1.1	30	1000	680	42255	26140-67820	1496	1635-739	id8730	Negotiated price
1	1.1	37	750	735	45675	28270-73310	1751	1907-862	id8718	Negotiated price
ВЦ 4-75 №16
5.1	1	11	1000	350	45105	25000-64420	433	481-373	id8734	538537
5.1	1	15	1000	370	47875	26380-68430	484	538-422	id8735	543467
5.1	1	18.5	1000	420	54225	30080-77330	635	705-547	id8736	552167
5.1	1	22	1000	450	58685	32100-84180	742	807-658	id8737	562056
5.1	1	30	1000	500	64585	35440-91600	909	991-777	id8738	572453
5.1	1	45	1000	550	70725	39050-100500	1096	1210-944	id8739	604744
5.1	1	55	1000	600	76555	42210-108700	1288	1424-1109	id8740	614880
5.1	1	75	1000	670	86375	47460-123200	1656	1811-1437	id8741	650579

Fans are manufactured in accordance
with TU U 28.2-24881057-003:2023:

from carbon steel;
from stainless steel;
from dissimilar metals;
from aluminum alloys;
from titanium alloys.

VC 4-75 Low-pressure radial fan is the most popular type of ventilation equipment.

The fans are intended for use in rooms where the concentration in the moving air stream of solid mechanical dust impurities does not exceed 100 mg/m3 with a temperature up to +80 °C and in the absence of any impurities having a fibrous structure or sticky properties.

VC 4-75 fans are used:

in air conditioning systems;
in ventilation systems;
in air heating systems;
for other sanitation-production purposes.

General information about fans:

Single suction;
Spiral rotary body;
Backward curved blades;
Quantity of blades 12;
Direction of rotation – right and left.

Depending on the direction of rotation, the fans are produced in the right or left rotation. Right-hand fans with a wheel rotating clockwise, left rotation – with a wheel rotating counter-clockwise when viewed from the suction side of the fan.
