Roof fans VKR

Radial roof fan of one-sided suction for removing air and other gas mixtures with a temperature of up to +80°C and a concentration of solid mechanical dust impurities from industrial and public buildings no more than 100 g/m3. It is installed on the roofs of industrial and public buildings, it can work both without a network and with a network of air ducts. It is made from carbon or stainless steel, dissimilar metals.

Models
Aerodynamics Graphics

N en, KW	n en, rpm	n w.w. en, rpm	Airflow m3/h		Pressure Pa		ID	Price, UAH
			ηmax	in working zone	ηmax	in working zone

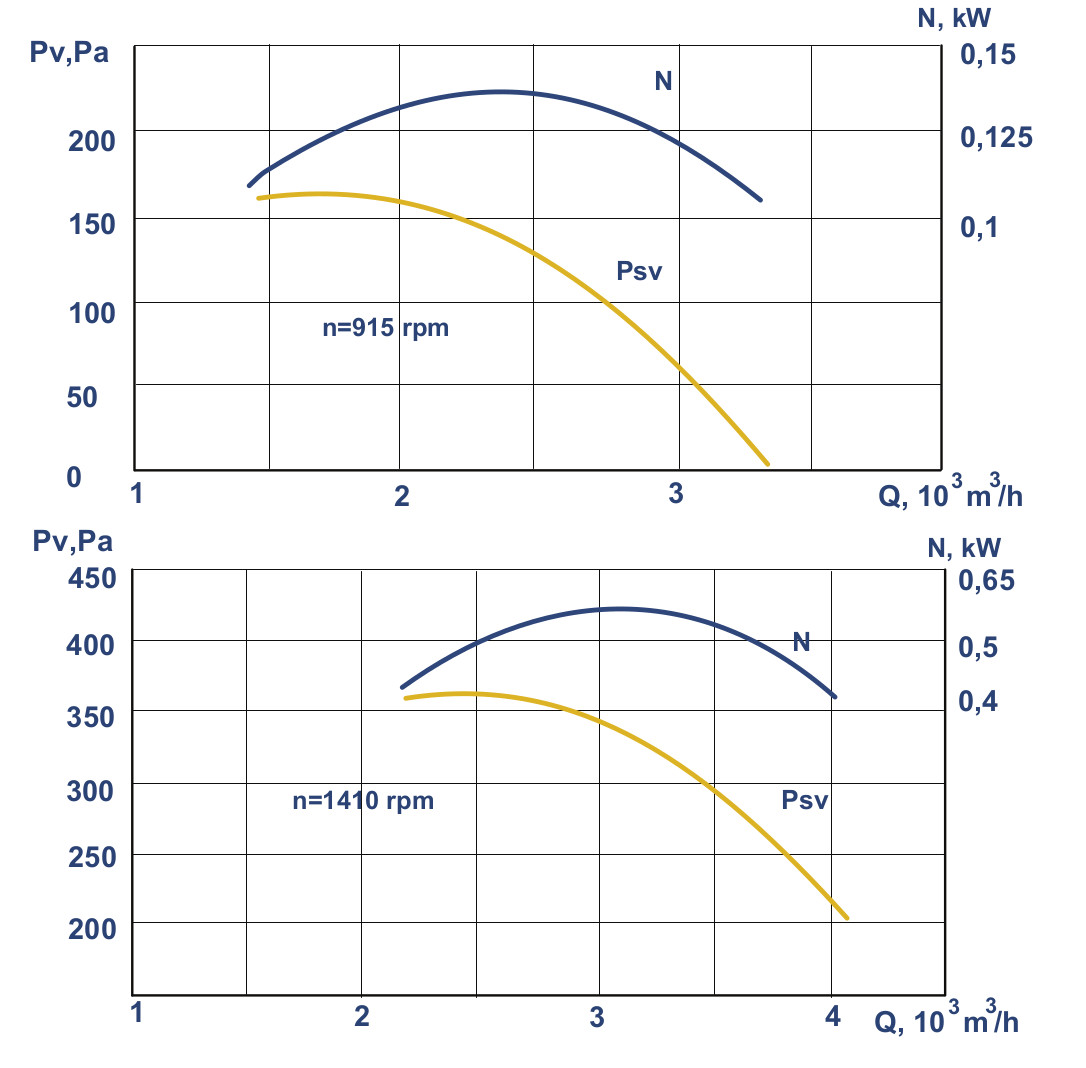

ВКР №4
1.5	1500	1410	3000	2200-4200	340	365-210	id37437	17979
1.1	1500	1410	3000	2200-4200	340	365-210	id37436	15589
0.75	1500	1410	3000	2200-4200	340	365-210	id37435	14827
0.25	1000	915	2470	1430-3080	126	163-50	id10752	13762

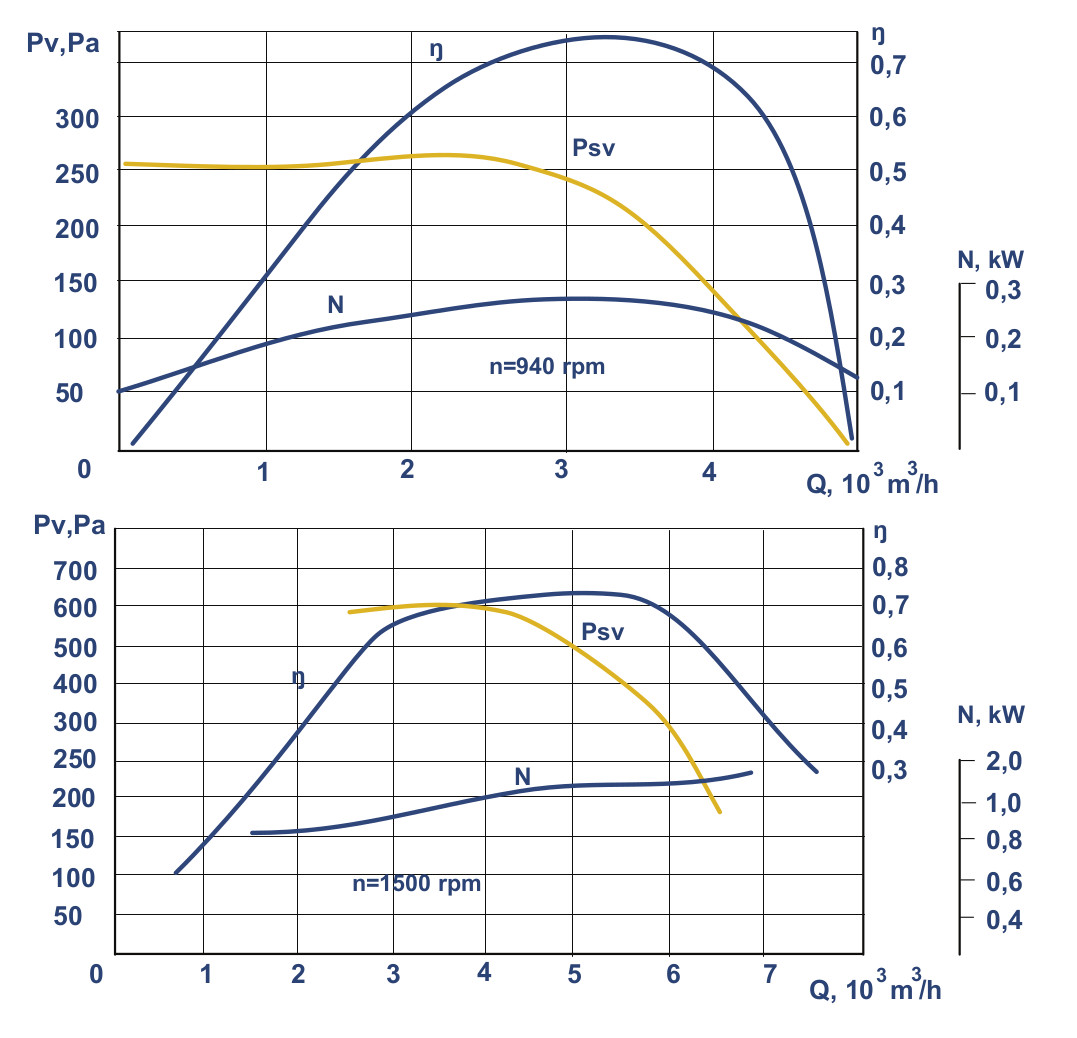

ВКР №5
2.2	1500	1410	5000	2500-6500	490	590-200	id37439	Negotiated price
1.5	1500	1410	5000	2500-6500	490	590-200	id37438	Negotiated price
0.55	1000	940	3200	2260-4050	213	263-132	id11129	15844

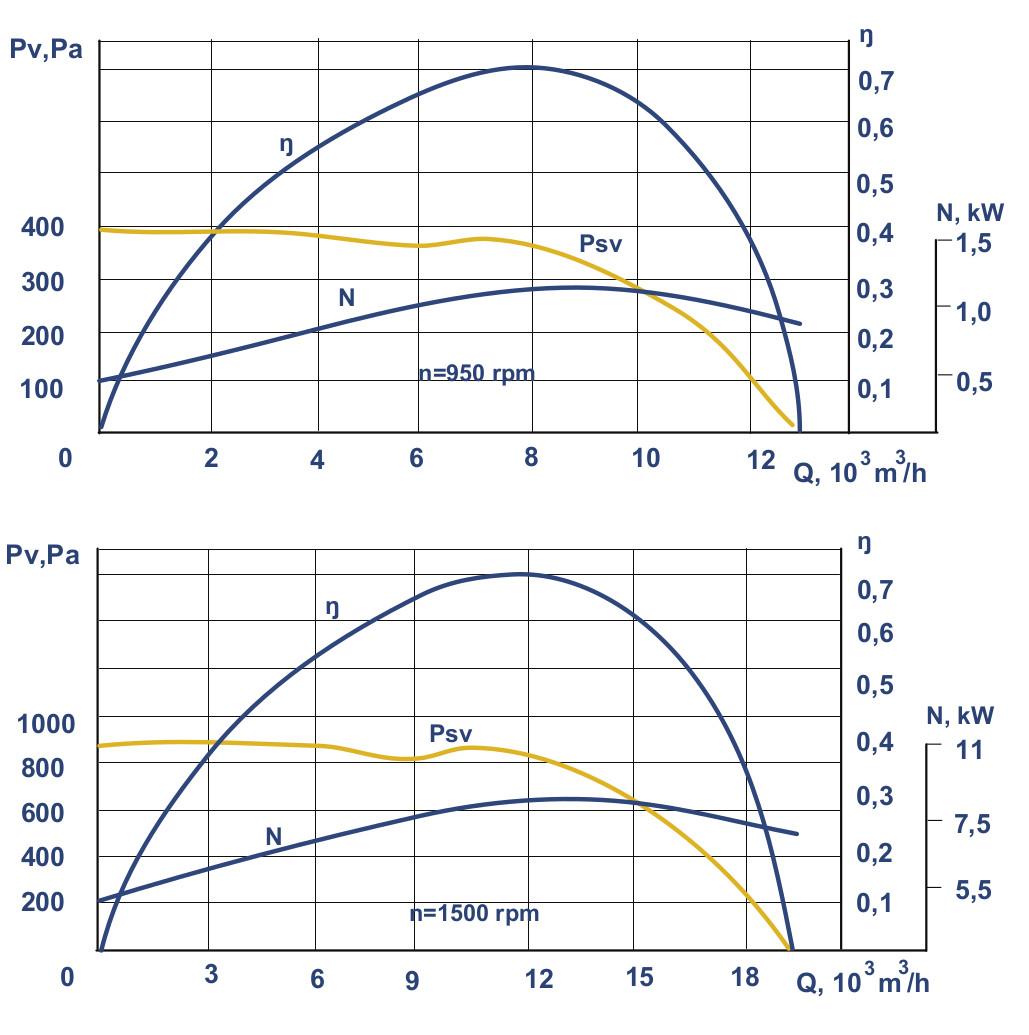

ВКР №6,3
7.5	1500	1410	12000	10400-16500	820	846-461	id37440	Negotiated price
2.2	1000	950	7900	7000-11200	360	372-190	id11152	29838

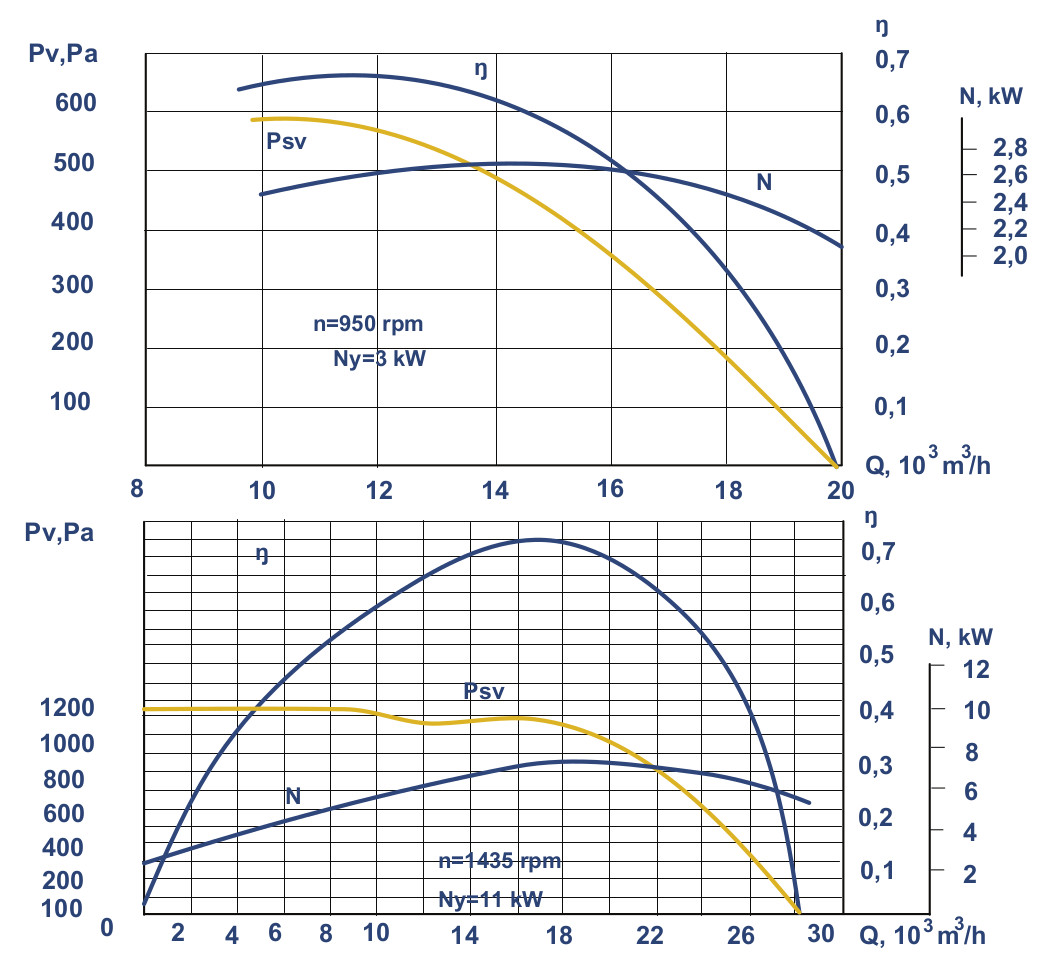

ВКР №7.1
11	3000	1435	17200	9000-22000	1090	1350-820	id37444	Negotiated price
3	1000	950	11380	9630-14600	584	638-593	id37443	Negotiated price

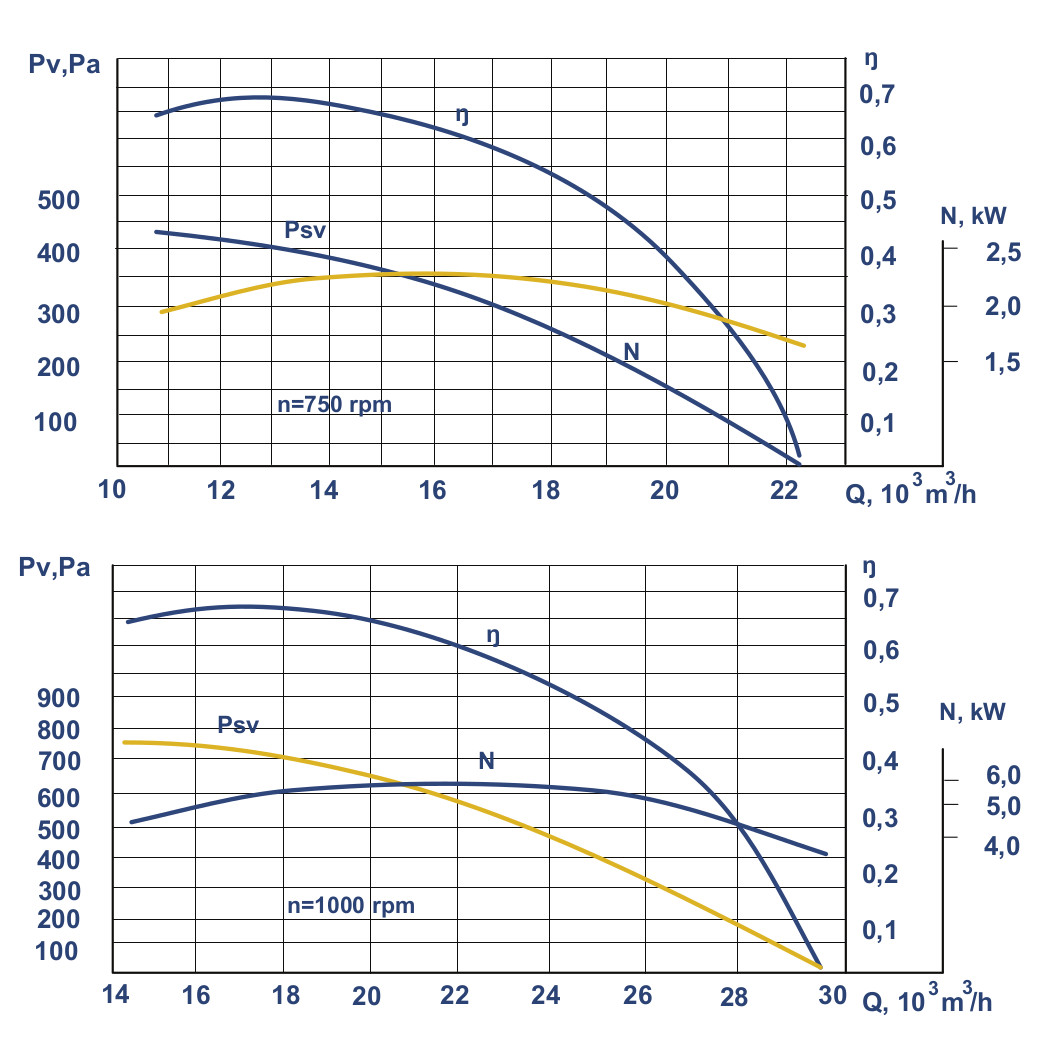

ВКР №8
5.5	1000	940	17200	14400-22000	724	758-569	id37441	Negotiated price
3	750	700	12910	10640-16470	407	427-316	id11153	47628

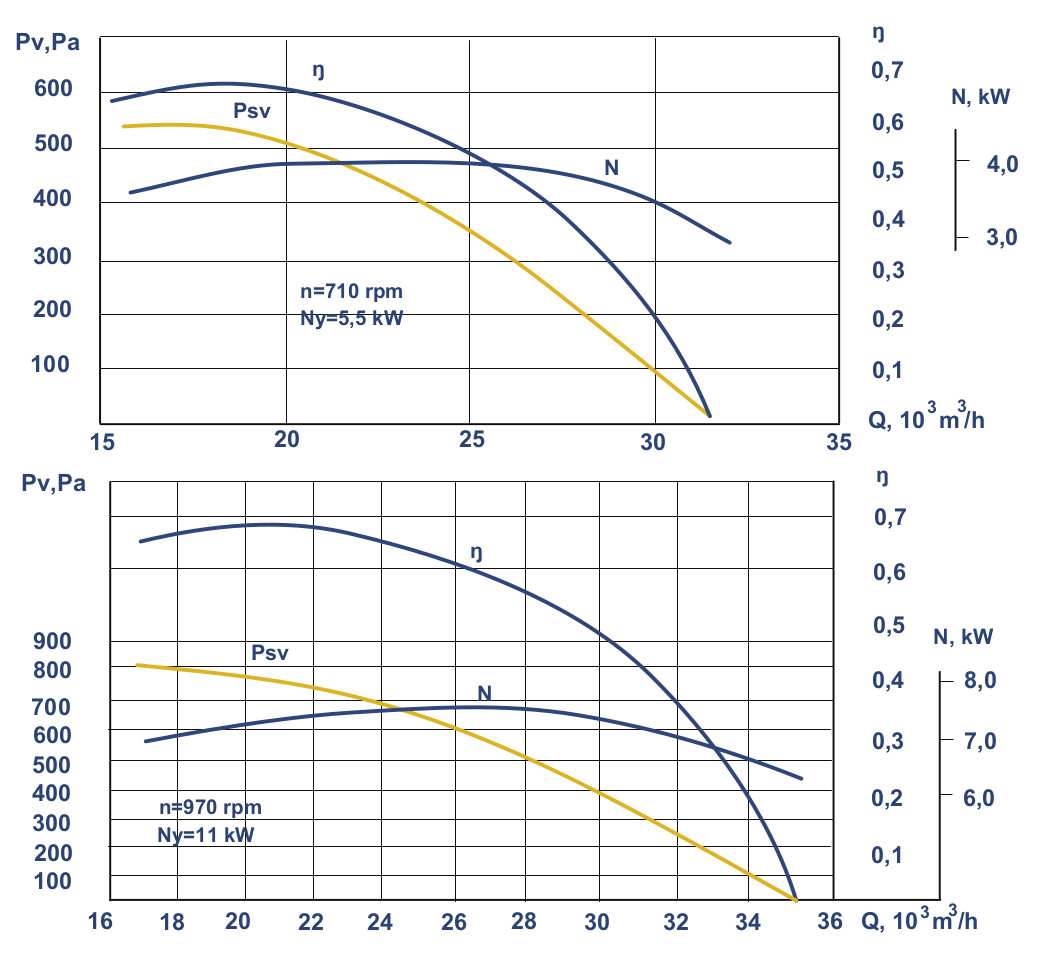

ВКР №9
11	1000	970	20400	16800-26000	778	816-604	id37446	Negotiated price
5.5	750	710	18100	15600-22900	539	539-429	id37445	Negotiated price

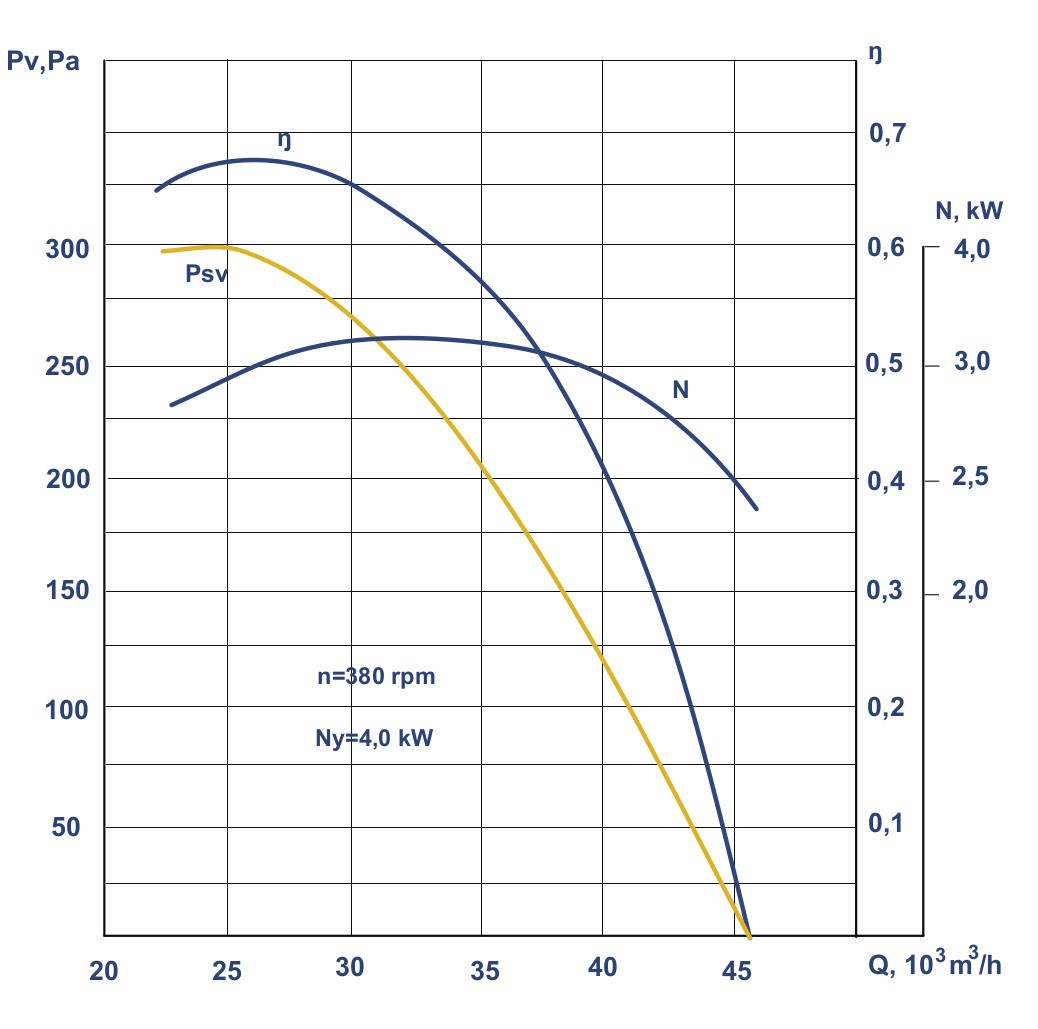

ВКР №12,5
4	750	700	26180	22390-30570	296	300-265	id11160	131276

Fans are manufactured
in accordancewith TU U 28.2-24881057-003:2023:

Carbon steel;
Stainless steel;
Of dissimilar metals.

VKR centrifugal roof fan is the most popular type of ventilation equipment in its class.

The fans are designed to remove air and other gas mixtures from industrial and public buildings where the concentration of solid mechanical dust impurities does not exceed 100 g / m3. The air temperature should not exceed + 80 ° С. There should not be any contamination that has a fibrous structure or sticky properties.

VKR fans are installed

on the roofs of industrial and public buildings and can operate both without a network and with a network of air ducts. The fans can be additionally equipped with glasses, valves and pallets.
