| Design | Schema №3, Schema №5.1, Schema №5.2 |
|---|---|
| D/Dn | 1 |
| Rotation speed, rpm | 750 |
| Performance ηmax | 67500 |
| Fan's operating point: Airflow m³/h | 22500-112000 |
| Pressure ηmax | 3010 |
| Fan's operating point: Pressure, Pa | 3040-2530 |
| The mass of the fan with el. engine, kg | 3580 |
| Pollution limits, mg/m³ | 2000 |
| Model | Д №15,5 |
| Max. transported air temperature, °C | 200-250 |
| Engine KW / RPM | 132/750 |
| Ventilator angle of rotation | L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90 |
| Material | Carbon steel |

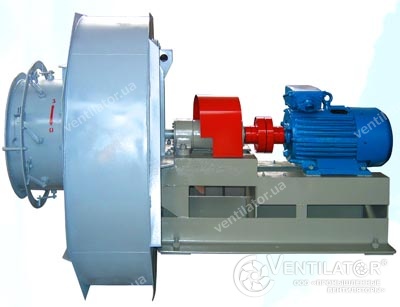

D №15,5 with electric motor AIR 355 S8 132 kW 750 rpm
Aerodynamic characteristics
D smoke exhausters aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art.
Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
