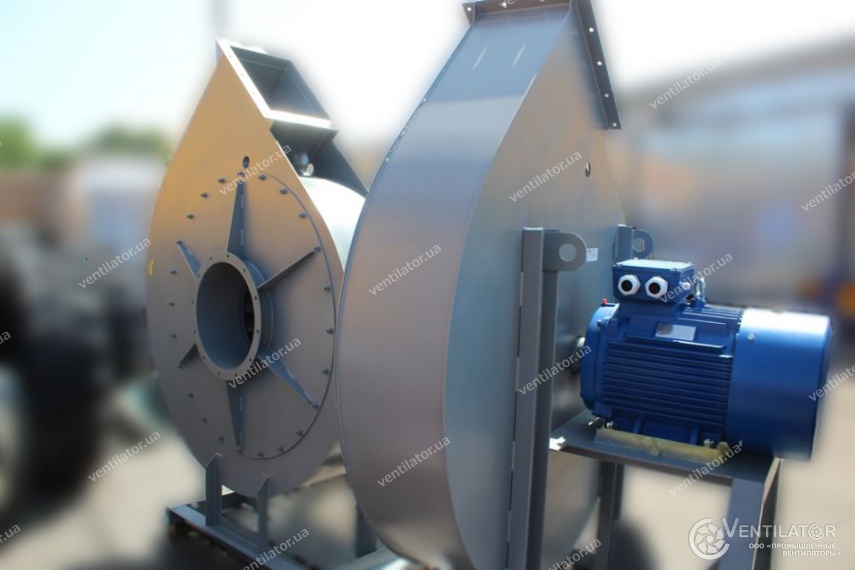

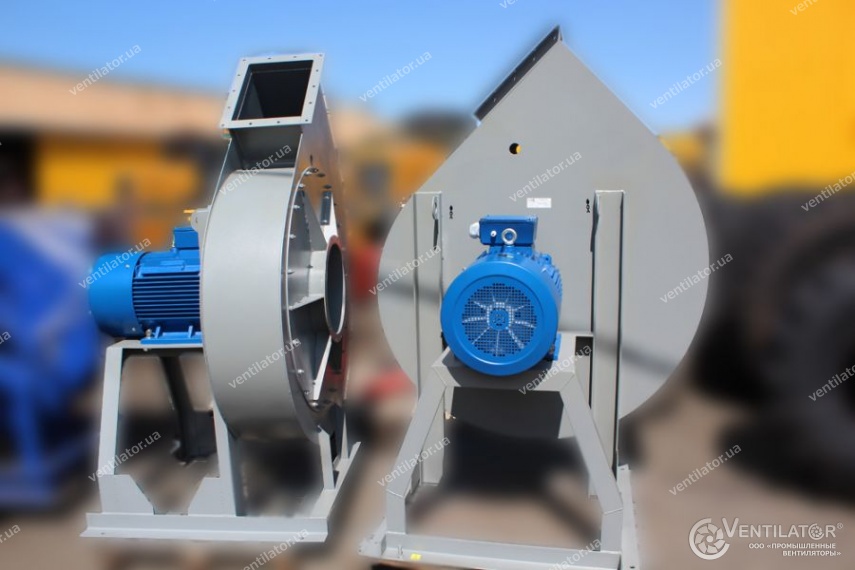

VC 6-28 (VR 120-28) №10 with electric motor AIR 160 М6 15 kW 1000 rpm
VC 6-28 (VR 120-28) №10 with electric motor AIR 160 М6 15 kW 1000 rpm
VC 6-28 (VR 120-28) №10 with electric motor AIR 160 М6 15 kW 1000 rpm
VC 6-28 (VR 120-28) №10 with electric motor AIR 160 М6 15 kW 1000 rpm

VC 6-28 (VR 120-28) №10 with electric motor AIR 160 М6 15 kW 1000 rpm

ID 37514  In stock
Choose another ›
Choose another ›
Choose another ›
Choose another ›
ID 37514  In stock

Prices for fans with impeller D = 1,05 Dn, D = 1,1 Dn, are specified by manager

Fan's operating point: Airflow m³/h 1510-16770, 4110-17550
D/Dn 1.05, 1.1
Rotation speed, rpm 1000
Material Carbon steel
Rotations of impeller, rpm 970
Pressure ηmax 2242, 2444
Fan's operating point: Pressure, Pa 2204-933, 2412-972
The mass of the fan with el. engine, kg 506,0, 508,0
Pollution limits, mg/m³ 100
Model ВЦ 6-28 (ВР 120-28) №10
Max. transported air temperature, °C

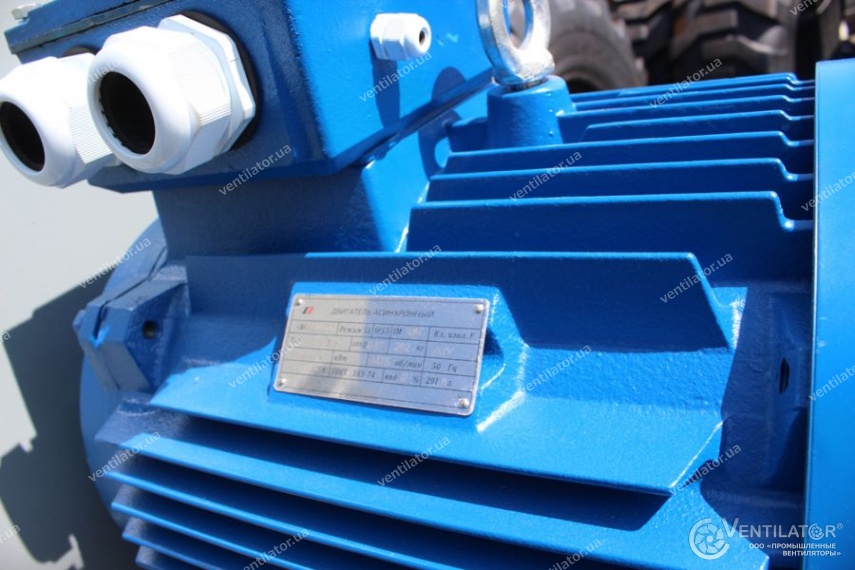

Engine KW / RPM 15.0/1000
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Performance ηmax 8820, 8530
Design Schema №1

Dimensions

Overall dimensions of the industrial fan VC 6-28 (VR 120-28) №10

Reviews

There are no reviews yet.

Be the first to review “VC 6-28 (VR 120-28) №10 with electric motor AIR 160 М6 15 kW 1000 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 6-28 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VC 6-28 (VR 120-28) №10

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
