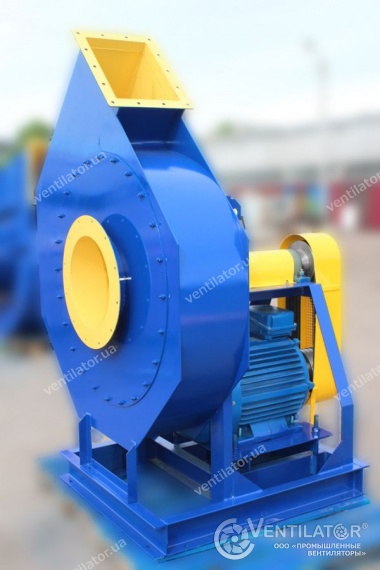

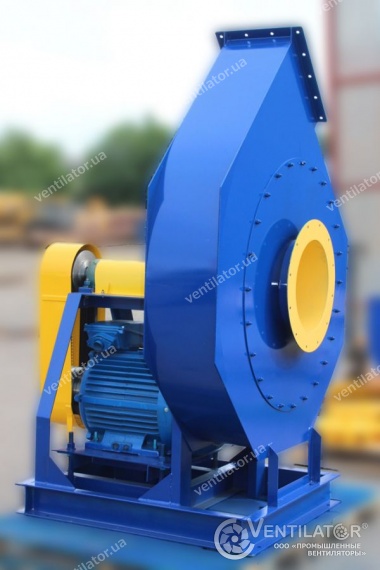

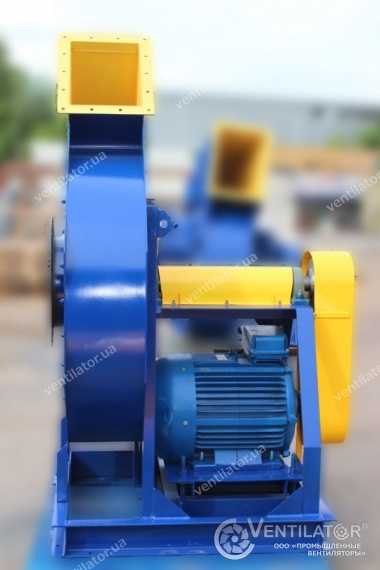

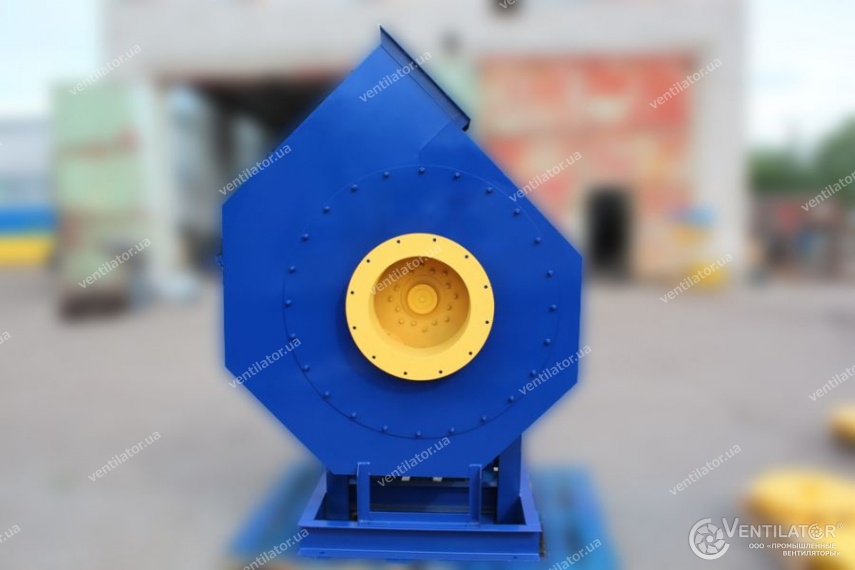

VC 6-28 (VR 120-28) №11,2 with electric motor AIR 200 L4 45 kW 1500 rpm
VC 6-28 (VR 120-28) №11,2 with electric motor AIR 200 L4 45 kW 1500 rpm
VC 6-28 (VR 120-28) №11,2 with electric motor AIR 200 L4 45 kW 1500 rpm
VC 6-28 (VR 120-28) №11,2 with electric motor AIR 200 L4 45 kW 1500 rpm

VC 6-28 (VR 120-28) №11,2 with electric motor AIR 200 L4 45 kW 1500 rpm

ID 37553  In stock
Choose another ›
Choose another ›
Choose another ›
ID 37553  In stock
Pressure ηmax 4643, 5398
Fan's operating point: Pressure, Pa 4288-2350, 4979-4900
Fan's operating point: Airflow m³/h 3010-27500, 3240-21900
Performance ηmax 11210, 12070
Rotation speed, rpm 1500
Rotations of impeller, rpm 1300, 1400
The mass of the fan with el. engine, kg 1242, 1247
Pollution limits, mg/m³ 100
Material Carbon steel
Engine KW / RPM 45.0/1500
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Model VC 6-28 (VR 120-28) №11.2
Max. transported air temperature, °C
D/Dn 1

Reviews

There are no reviews yet.

Be the first to review “VC 6-28 (VR 120-28) №11,2 with electric motor AIR 200 L4 45 kW 1500 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 6-28 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VC 6-28 (VR 120-28) №11,2

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
