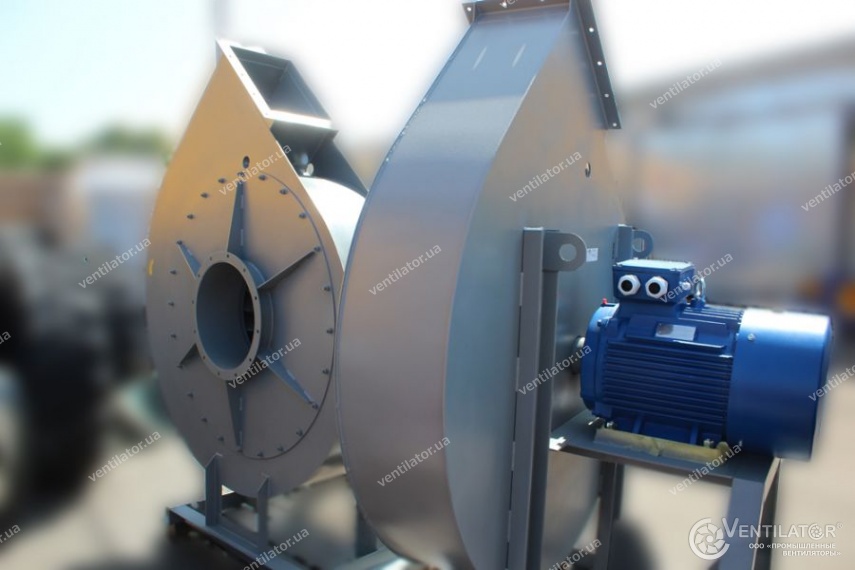

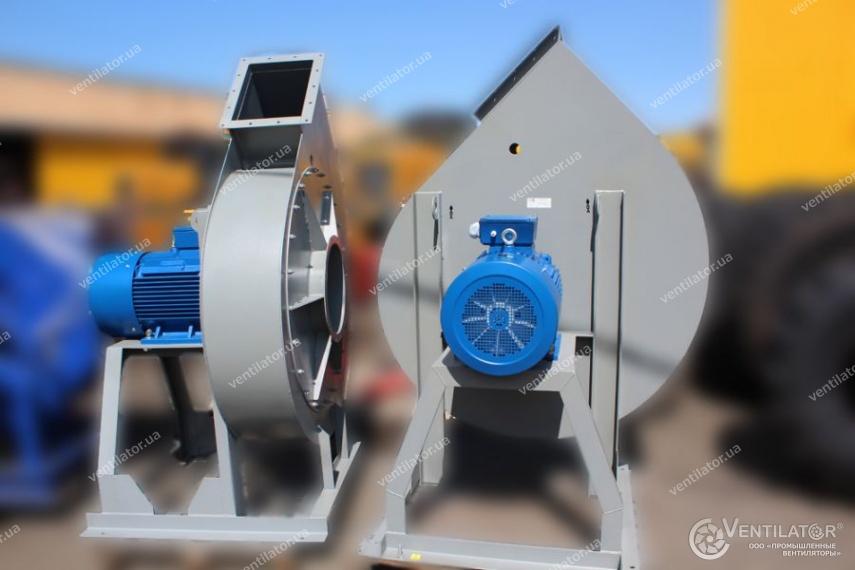

VC 6-28 (VR 120-28) №11,2 with electric motor AIR 180 М6 18,5 kW 1000 rpm
VC 6-28 (VR 120-28) №11,2 with electric motor AIR 180 М6 18,5 kW 1000 rpm
VC 6-28 (VR 120-28) №11,2 with electric motor AIR 180 М6 18,5 kW 1000 rpm
VC 6-28 (VR 120-28) №11,2 with electric motor AIR 180 М6 18,5 kW 1000 rpm

VC 6-28 (VR 120-28) №11,2 with electric motor AIR 180 М6 18,5 kW 1000 rpm

ID 37542  In stock
Choose another ›
Choose another ›
Choose another ›
ID 37542  In stock

Prices for fans with impeller D = 1,05 Dn, D = 1,1 Dn, are specified by manager

Pressure ηmax 2611, 2842
Fan's operating point: Pressure, Pa 2412-1550, 2793-2600
Fan's operating point: Airflow m³/h 2260-19500, 2130-15800
Performance ηmax 8410, 12450
Rotation speed, rpm 1000

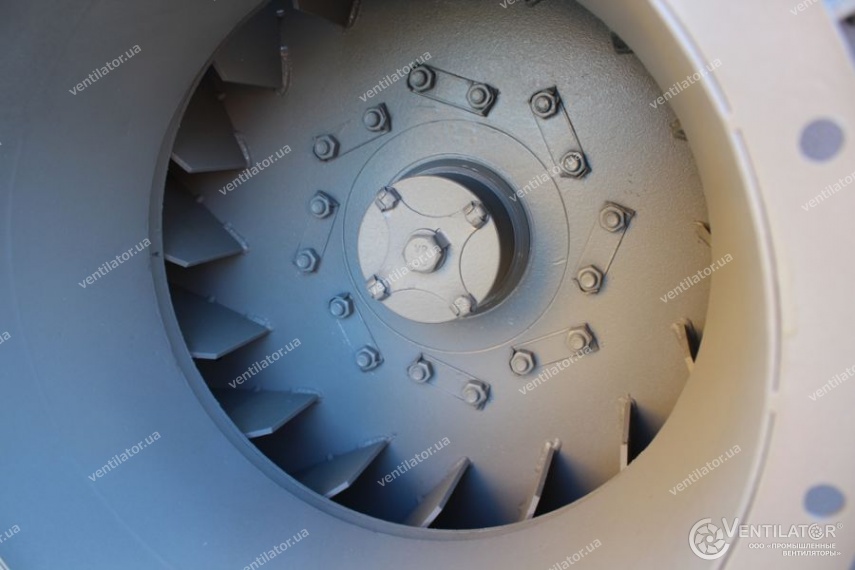

Rotations of impeller, rpm 975
The mass of the fan with el. engine, kg 693, 696
Pollution limits, mg/m³ 100
Material Carbon steel

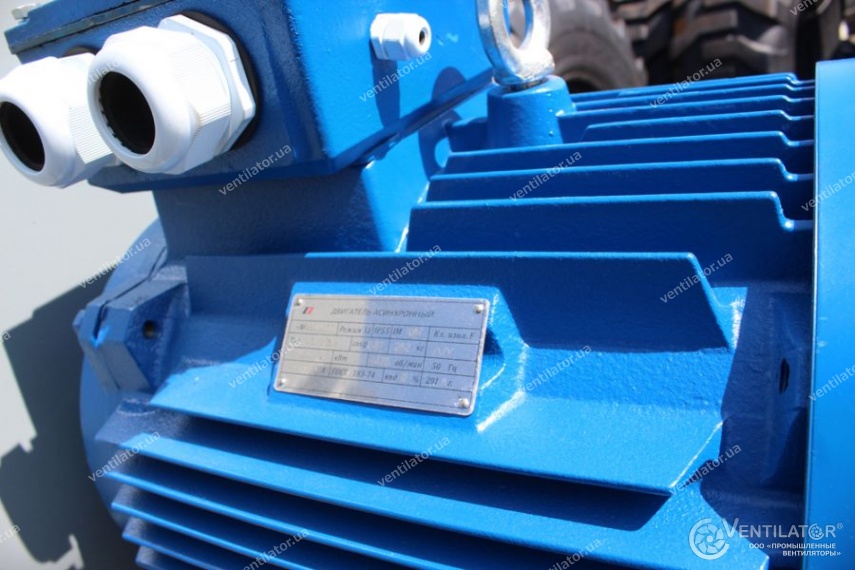

Engine KW / RPM 18.5/1000
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Model VC 6-28 (VR 120-28) №11.2
Max. transported air temperature, °C
D/Dn 1, 1.05

Reviews

There are no reviews yet.

Be the first to review “VC 6-28 (VR 120-28) №11,2 with electric motor AIR 180 М6 18,5 kW 1000 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 6-28 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VC 6-28 (VR 120-28) №11,2

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
