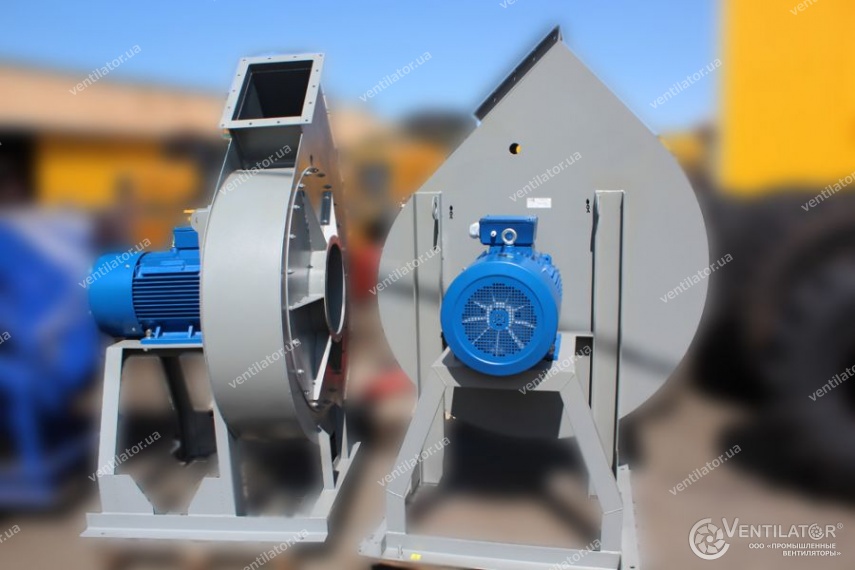

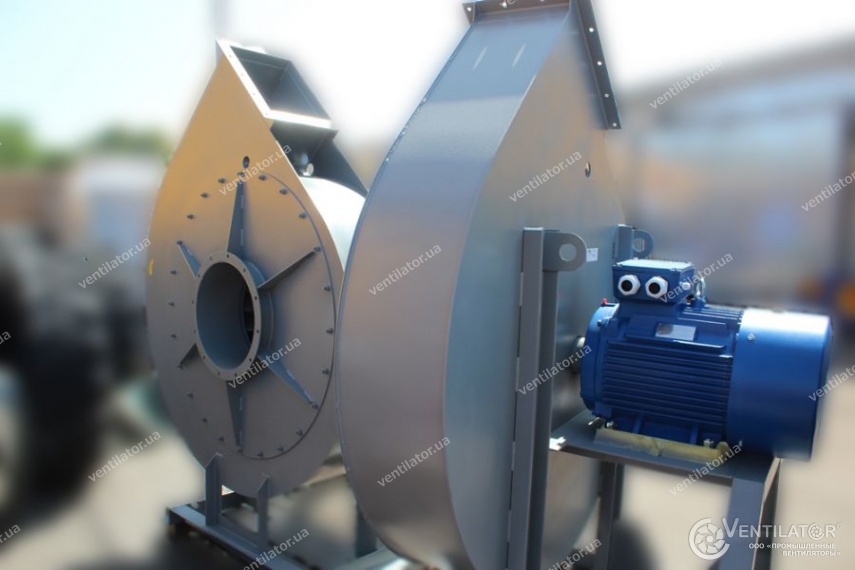

VC 6-28 (VR 120-28) №12,5 with electric motor AIR 200 L6 30 kW 1000 rpm
VC 6-28 (VR 120-28) №12,5 with electric motor AIR 200 L6 30 kW 1000 rpm
VC 6-28 (VR 120-28) №12,5 with electric motor AIR 200 L6 30 kW 1000 rpm
VC 6-28 (VR 120-28) №12,5 with electric motor AIR 200 L6 30 kW 1000 rpm

VC 6-28 (VR 120-28) №12,5 with electric motor AIR 200 L6 30 kW 1000 rpm

ID 37558  In stock
Choose another ›
Choose another ›
Choose another ›
ID 37558  In stock

Prices for fans with impeller D = 1,05 Dn, D = 1,1 Dn, are specified by manager

Pressure ηmax 3273, 3609
Fan's operating point: Pressure, Pa 3029-2440, 3558-3490
Fan's operating point: Airflow m³/h 3150-24000, 3000-19900
Performance ηmax 11740, 17520
Rotation speed, rpm 1000

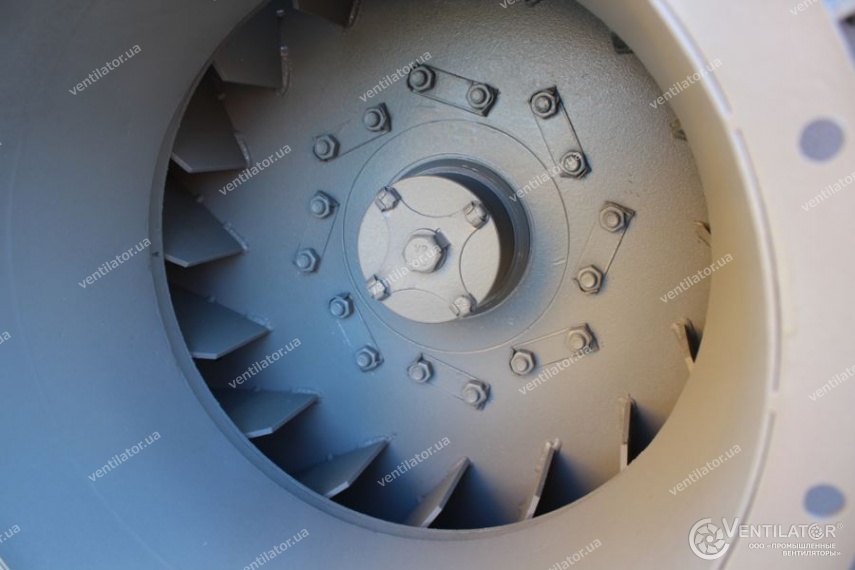

Rotations of impeller, rpm 980, 986
The mass of the fan with el. engine, kg 1120, 1125
Pollution limits, mg/m³ 100
Material Carbon steel

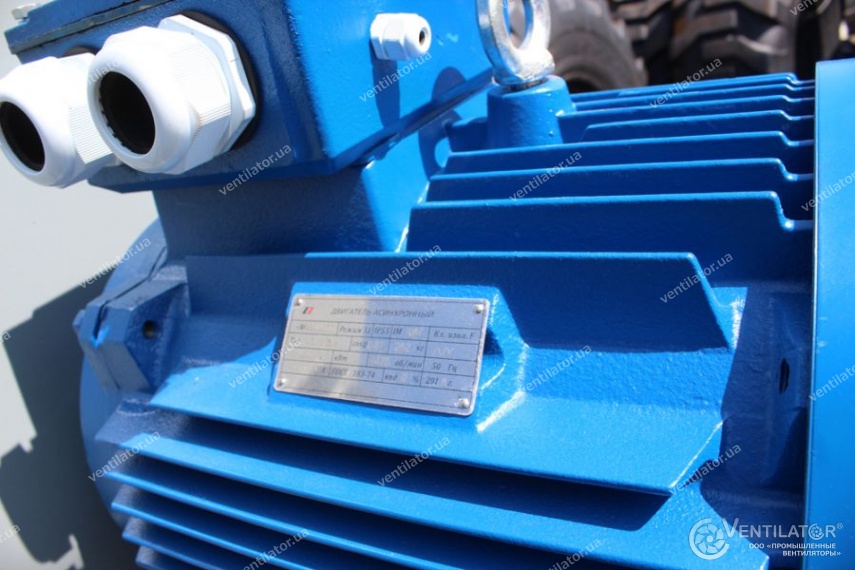

Engine KW / RPM 30.0/1000
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Model VC 6-28 (VR 120-28) №12.5
Max. transported air temperature, °C
D/Dn 1, 1.05

Reviews

There are no reviews yet.

Be the first to review “VC 6-28 (VR 120-28) №12,5 with electric motor AIR 200 L6 30 kW 1000 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 6-28 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VC 6-28 (VR 120-28) №12,5

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
