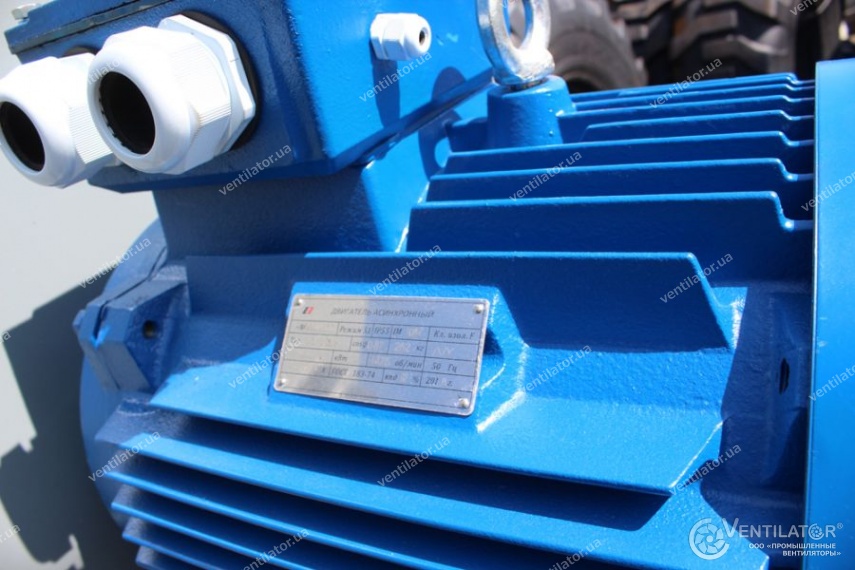

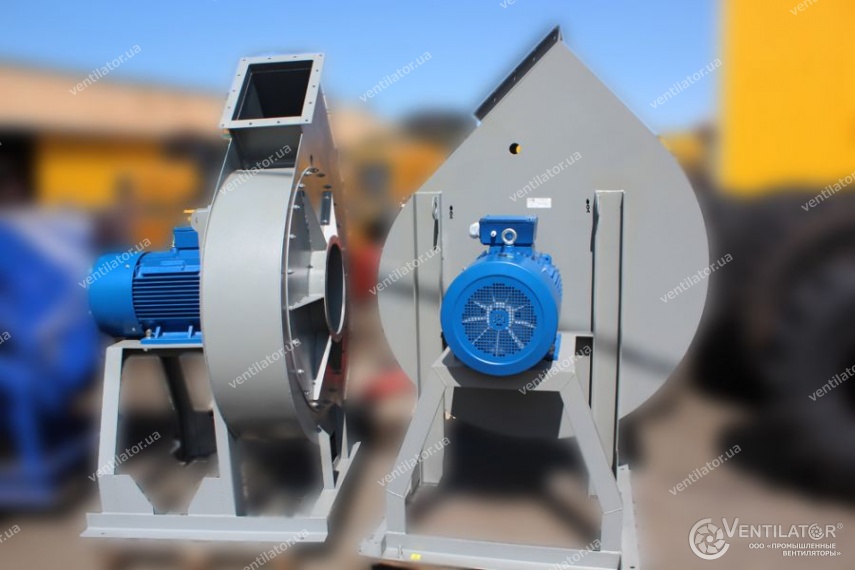

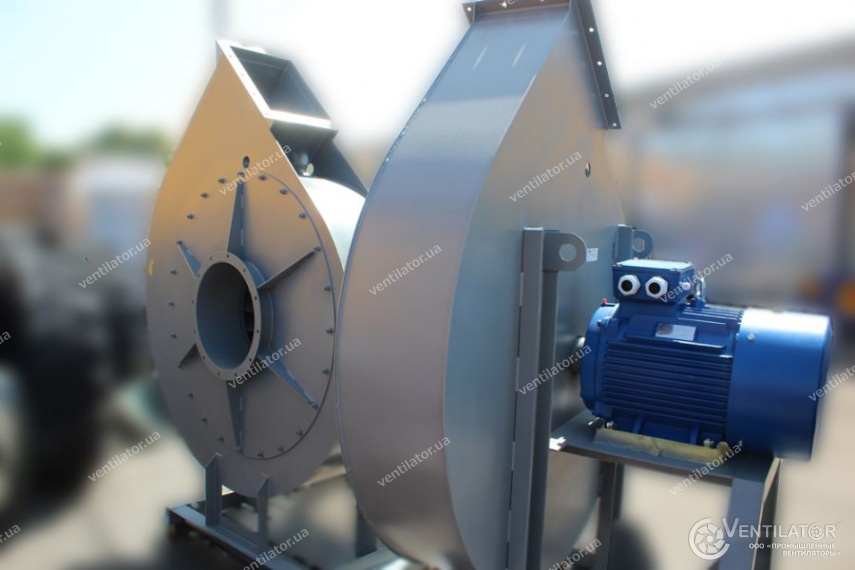

VC 6-28 (VR 120-28) №12,5 with electric motor AIR 280 М4 132 kW 1500 rpm
VC 6-28 (VR 120-28) №12,5 with electric motor AIR 280 М4 132 kW 1500 rpm
VC 6-28 (VR 120-28) №12,5 with electric motor AIR 280 М4 132 kW 1500 rpm
VC 6-28 (VR 120-28) №12,5 with electric motor AIR 280 М4 132 kW 1500 rpm

VC 6-28 (VR 120-28) №12,5 with electric motor AIR 280 М4 132 kW 1500 rpm

ID 37565  In stock
Choose another ›
Choose another ›
Choose another ›
ID 37565  In stock

Prices for fans with impeller D = 1,05 Dn, D = 1,1 Dn, are specified by manager

Engine KW / RPM 132.0/1500
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Model VC 6-28 (VR 120-28) №12.5
Max. transported air temperature, °C
D/Dn 1, 1.05
Material Carbon steel
Pollution limits, mg/m³ 100
Fan's operating point: Airflow m³/h 4770-47200, 4530-40000
Fan's operating point: Pressure, Pa 6993-2985, 8111-6500
Performance ηmax 17790, 26420
Rotation speed, rpm 1500
The mass of the fan with el. engine, kg 1781, 1785
Rotations of impeller, rpm 1484, 1487
Pressure ηmax 7606, 8324

Reviews

There are no reviews yet.

Be the first to review “VC 6-28 (VR 120-28) №12,5 with electric motor AIR 280 М4 132 kW 1500 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 6-28 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VC 6-28 (VR 120-28) №12,5

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
