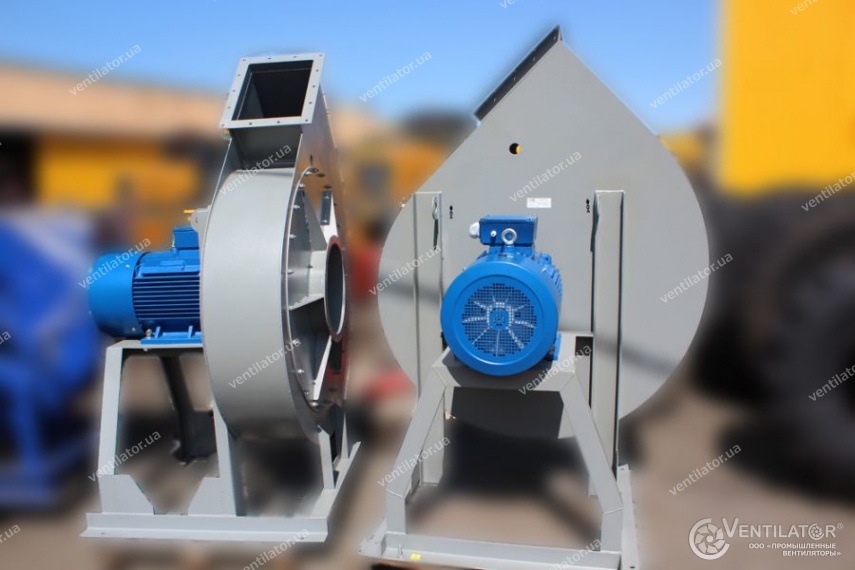

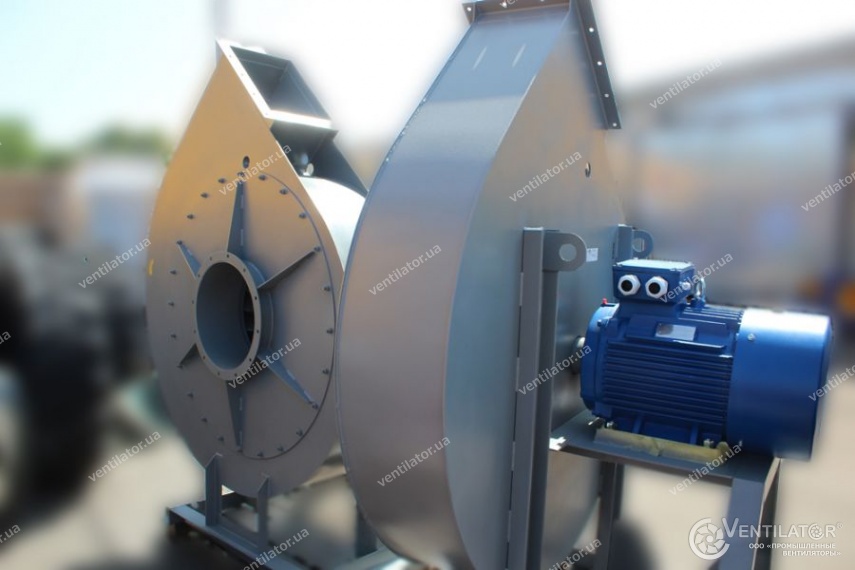

VC 6-28 (VR 120-28) №12,5 with electric motor AIR 200 М6 22 kW 1000 rpm
VC 6-28 (VR 120-28) №12,5 with electric motor AIR 200 М6 22 kW 1000 rpm
VC 6-28 (VR 120-28) №12,5 with electric motor AIR 200 М6 22 kW 1000 rpm
VC 6-28 (VR 120-28) №12,5 with electric motor AIR 200 М6 22 kW 1000 rpm

VC 6-28 (VR 120-28) №12,5 with electric motor AIR 200 М6 22 kW 1000 rpm

ID 37557  In stock
Choose another ›
Choose another ›
Choose another ›
ID 37557  In stock
Engine KW / RPM 22.0/1000
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Model VC 6-28 (VR 120-28) №12.5
Max. transported air temperature, °C
D/Dn 0.9, 0.95
Material Carbon steel
Pollution limits, mg/m³ 100
Fan's operating point: Airflow m³/h 2680-26470, 3060-20160
Fan's operating point: Pressure, Pa 2537-917, 2786-2441
Performance ηmax 13000, 13420
Rotation speed, rpm 1000
The mass of the fan with el. engine, kg 1075, 108,0
Rotations of impeller, rpm 975
Pressure ηmax 2482, 2845

Reviews

There are no reviews yet.

Be the first to review “VC 6-28 (VR 120-28) №12,5 with electric motor AIR 200 М6 22 kW 1000 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 6-28 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VC 6-28 (VR 120-28) №12,5

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
