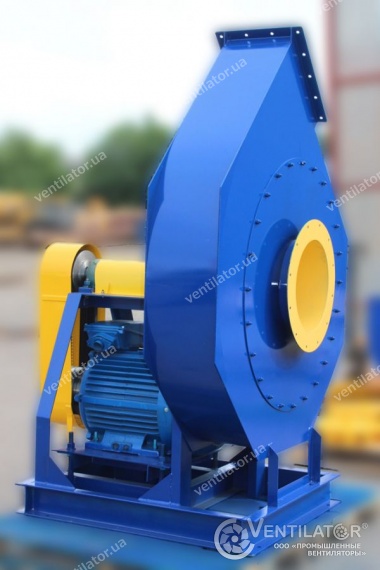

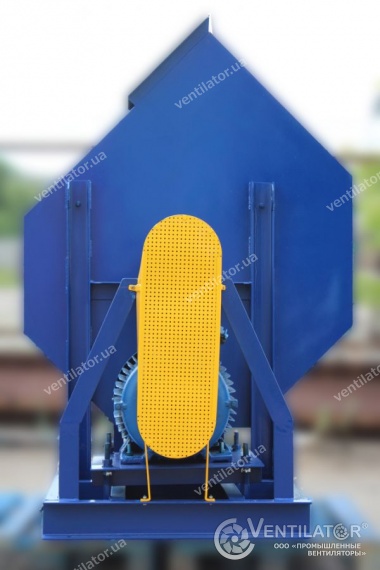

VC 6-28 (VR 120-28) №4 with electric motor AIR 160 М2 18,5 kW 3000 rpm
VC 6-28 (VR 120-28) №4 with electric motor AIR 160 М2 18,5 kW 3000 rpm
VC 6-28 (VR 120-28) №4 with electric motor AIR 160 М2 18,5 kW 3000 rpm

VC 6-28 (VR 120-28) №4 with electric motor AIR 160 М2 18,5 kW 3000 rpm

ID 37481  In stock
Choose another ›
Choose another ›
Choose another ›
Choose another ›
ID 37481  In stock
Fan's operating point: Airflow m³/h 560-5400, 580-4590
Pressure ηmax 10010, 10808
Fan's operating point: Pressure, Pa 9170-4200, 9888-7686
Performance ηmax 2080, 2160
Rotations of impeller, rpm 5300, 5500
Rotation speed, rpm 3000
The mass of the fan with el. engine, kg 252,0, 263,0
Pollution limits, mg/m³ 100
Material Carbon steel
Engine KW / RPM 18.5/3000
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Model ВЦ 6-28 (ВР 120-28) №4
Max. transported air temperature, °C
D/Dn 1
Design Schema №5.1, Schema №5.2

Reviews

There are no reviews yet.

Be the first to review “VC 6-28 (VR 120-28) №4 with electric motor AIR 160 М2 18,5 kW 3000 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 6-28 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VC 6-28 (VR 120-28) №4

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
