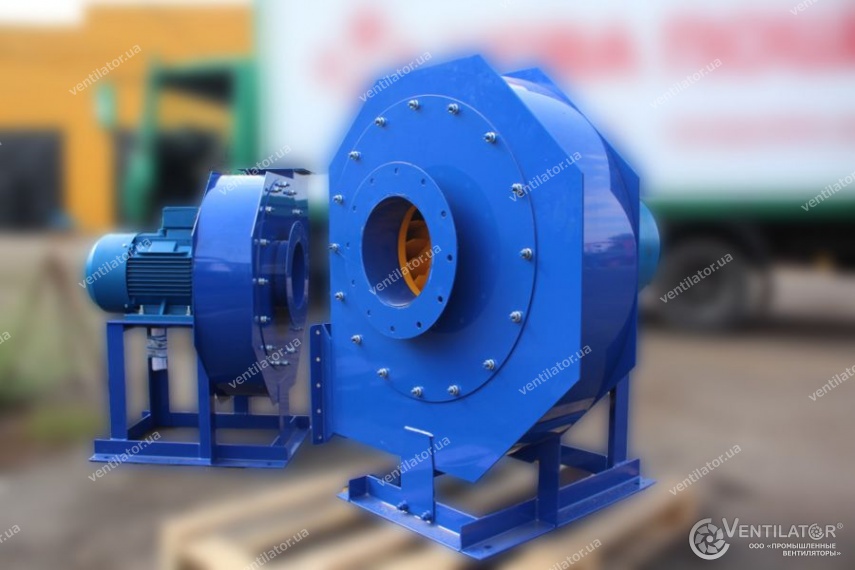

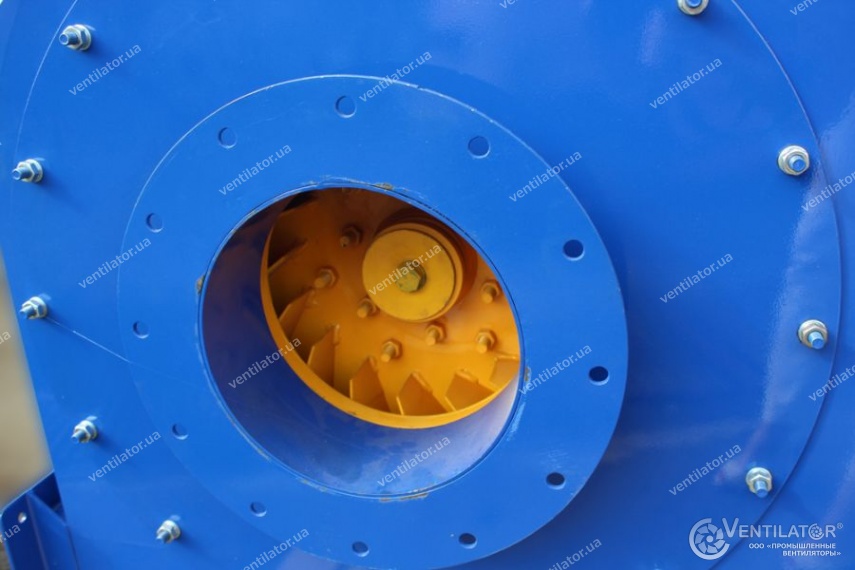

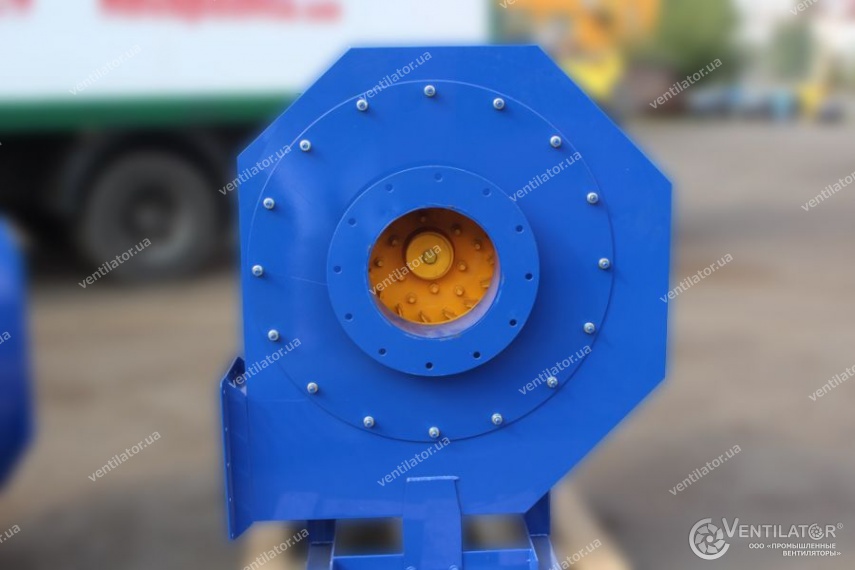

VC 6-28 (VR 120-28) №4 with electric motor AIR 80 В2 2,2 kW 3000 rpm
VC 6-28 (VR 120-28) №4 with electric motor AIR 80 В2 2,2 kW 3000 rpm
VC 6-28 (VR 120-28) №4 with electric motor AIR 80 В2 2,2 kW 3000 rpm
VC 6-28 (VR 120-28) №4 with electric motor AIR 80 В2 2,2 kW 3000 rpm

VC 6-28 (VR 120-28) №4 with electric motor AIR 80 В2 2,2 kW 3000 rpm

ID 8991  In stock
Choose another ›
Choose another ›
Choose another ›
Choose another ›
ID 8991  In stock

Prices for fans with impeller D = 1,05 Dn, D = 1,1 Dn, are specified by manager

Fan's operating point: Airflow m³/h 250-2500, 290-2640, 300-2060, 280-1660
Pressure ηmax 2126, 2435, 2757, 3080
Fan's operating point: Pressure, Pa 2173-786, 2385-1103, 2546-2270, 3041-3080
Performance ηmax 1230, 1270, 1100, 1660
Rotations of impeller, rpm 2805, 2820, 2850
Rotation speed, rpm 3000
The mass of the fan with el. engine, kg 530, 54,0
Pollution limits, mg/m³ 100
Material Carbon steel
Engine KW / RPM 2.2/3000
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Model ВЦ 6-28 (ВР 120-28) №4
Max. transported air temperature, °C
D/Dn 0.9, 0.95, 1, 1.05
Design Schema №1

Reviews

There are no reviews yet.

Be the first to review “VC 6-28 (VR 120-28) №4 with electric motor AIR 80 В2 2,2 kW 3000 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 6-28 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VC 6-28 (VR 120-28) №4

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
