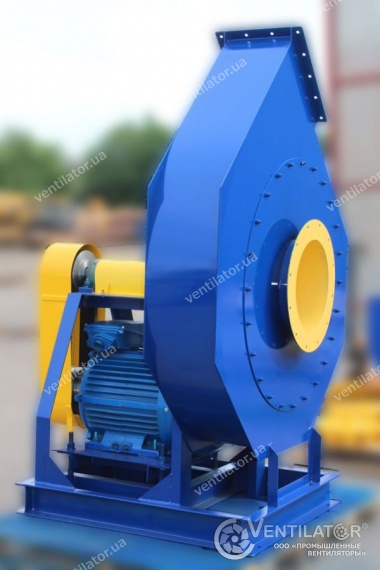

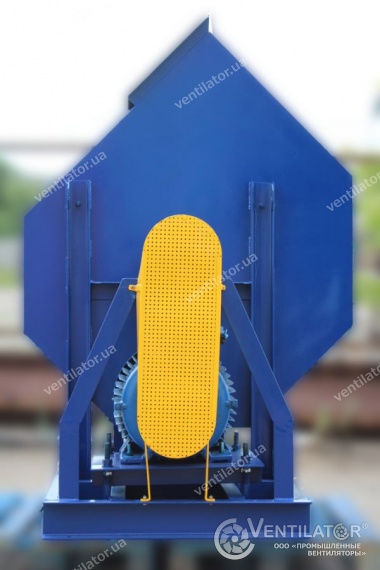

VC 6-28 (VR 120-28) №4 with electric motor AIR 132 М2 11 kW 3000 rpm
VC 6-28 (VR 120-28) №4 with electric motor AIR 132 М2 11 kW 3000 rpm
VC 6-28 (VR 120-28) №4 with electric motor AIR 132 М2 11 kW 3000 rpm

VC 6-28 (VR 120-28) №4 with electric motor AIR 132 М2 11 kW 3000 rpm

ID 37479  In stock
Choose another ›
Choose another ›
Choose another ›
Choose another ›
ID 37479  In stock
Fan's operating point: Airflow m³/h 460-4580, 480-3950, 510-3520, 530-3370
Pressure ηmax 6831, 7481, 8163, 8877
Fan's operating point: Pressure, Pa 6287-2687, 6879-5000, 7498-6700, 8146-8000
Performance ηmax 1730, 1810, 1890, 1960
Rotations of impeller, rpm 4400, 4600, 4800, 5000
Rotation speed, rpm 3000
The mass of the fan with el. engine, kg 1900, 191,0, 192,0
Pollution limits, mg/m³ 100
Material Carbon steel
Engine KW / RPM 11.0/3000
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Model ВЦ 6-28 (ВР 120-28) №4
Max. transported air temperature, °C
D/Dn 1
Design Schema №5.1, Schema №5.2

Reviews

There are no reviews yet.

Be the first to review “VC 6-28 (VR 120-28) №4 with electric motor AIR 132 М2 11 kW 3000 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 6-28 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VC 6-28 (VR 120-28) №4

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
