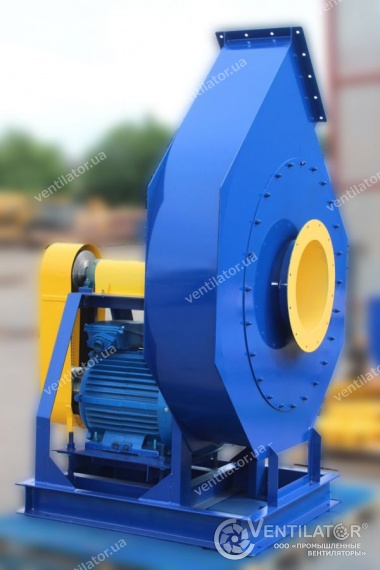

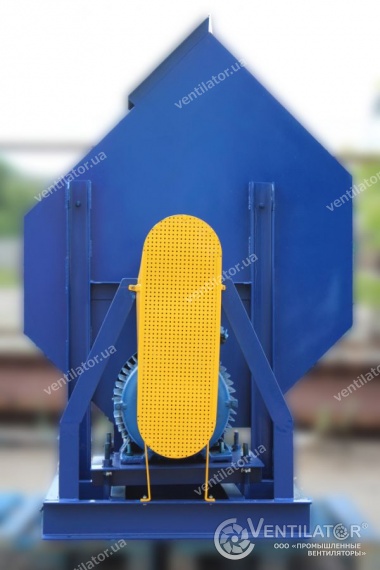

VC 6-28 (VR 120-28) №4 with electric motor AIR 160 S2 15 kW 3000 rpm
VC 6-28 (VR 120-28) №4 with electric motor AIR 160 S2 15 kW 3000 rpm
VC 6-28 (VR 120-28) №4 with electric motor AIR 160 S2 15 kW 3000 rpm

VC 6-28 (VR 120-28) №4 with electric motor AIR 160 S2 15 kW 3000 rpm

ID 37480  In stock
Choose another ›
Choose another ›
Choose another ›
Choose another ›
ID 37480  In stock
Fan's operating point: Airflow m³/h 520-5100, 540-4390, 560-3910, 580-3580
Pressure ηmax 8516, 9247, 10010, 10708
Fan's operating point: Pressure, Pa 7819-3335, 8480-6250, 9170-8200, 9888-9500
Performance ηmax 1920, 2000, 2080, 2160
Rotations of impeller, rpm 4900, 5100, 5300, 5500
Rotation speed, rpm 3000
The mass of the fan with el. engine, kg 233,0, 234,0, 235,0
Pollution limits, mg/m³ 100
Material Carbon steel
Engine KW / RPM 15.0/3000
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Model ВЦ 6-28 (ВР 120-28) №4
Max. transported air temperature, °C
D/Dn 1
Design Schema №5.1, Schema №5.2

Reviews

There are no reviews yet.

Be the first to review “VC 6-28 (VR 120-28) №4 with electric motor AIR 160 S2 15 kW 3000 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 6-28 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VC 6-28 (VR 120-28) №4

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
