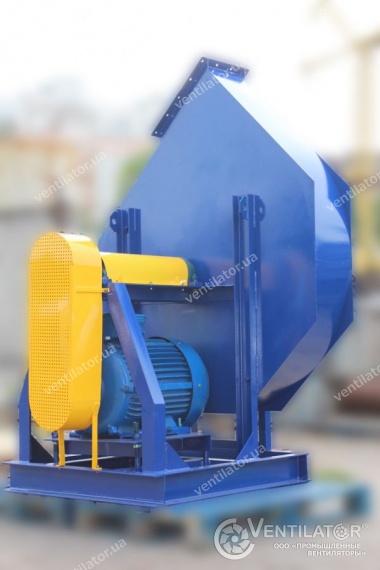

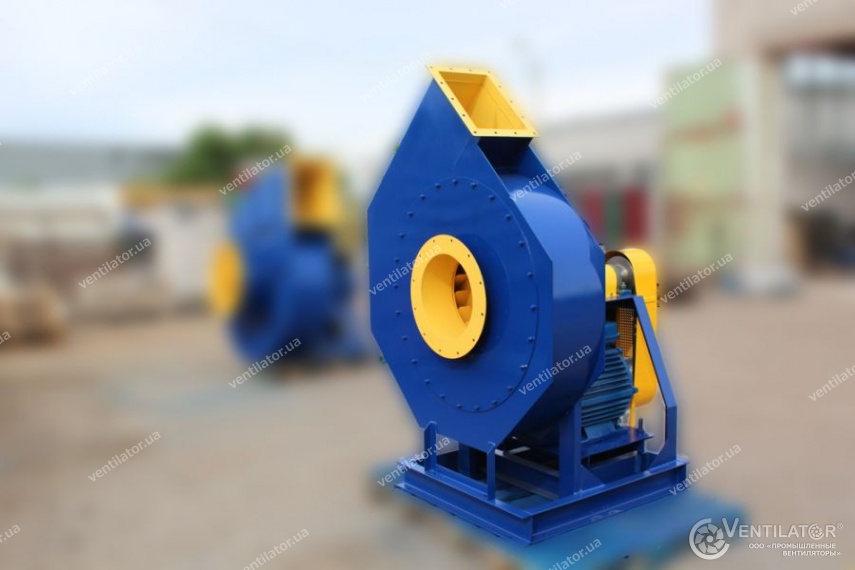

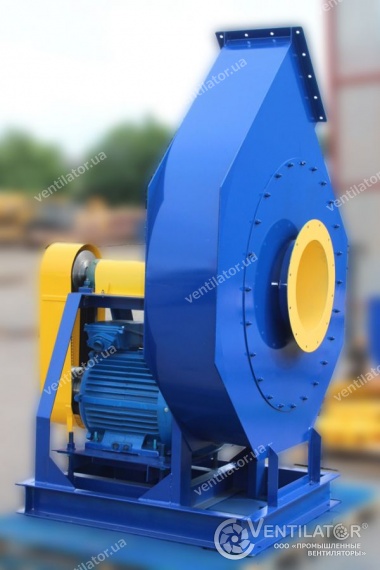

VC 6-28 (VR 120-28) №8 with electric motor AIR 180 S4 22 kW 1500 rpm
VC 6-28 (VR 120-28) №8 with electric motor AIR 180 S4 22 kW 1500 rpm
VC 6-28 (VR 120-28) №8 with electric motor AIR 180 S4 22 kW 1500 rpm

VC 6-28 (VR 120-28) №8 with electric motor AIR 180 S4 22 kW 1500 rpm

ID 9166  In stock
Choose another ›
Choose another ›
Choose another ›
Choose another ›
ID 9166  In stock
Engine KW / RPM 22.0/1500
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Material Carbon steel
Model ВЦ 6-28 (ВР 120-28) №8
Max. transported air temperature, °C
Design Schema №5.1, Schema №5.2
D/Dn 1
Pollution limits, mg/m³ 100
The mass of the fan with el. engine, kg 599,0, 600,0
Fan's operating point: Pressure, Pa 3738-1604, 4676-4100
Pressure ηmax 4044, 5067
Performance ηmax 5340, 5970
Rotations of impeller, rpm 1700, 1900
Rotation speed, rpm 1500
Fan's operating point: Airflow m³/h 1430-14170, 1600-11300

Dimensions

Overall dimensions of the industrial fan VC 6-28 (VR 120-28) №8

Reviews

There are no reviews yet.

Be the first to review “VC 6-28 (VR 120-28) №8 with electric motor AIR 180 S4 22 kW 1500 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 6-28 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VC 6-28 (VR 120-28) №8

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
