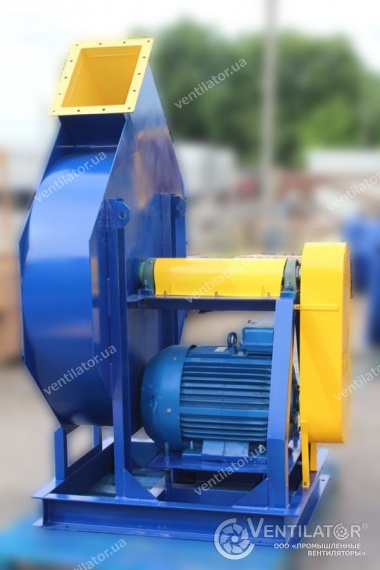

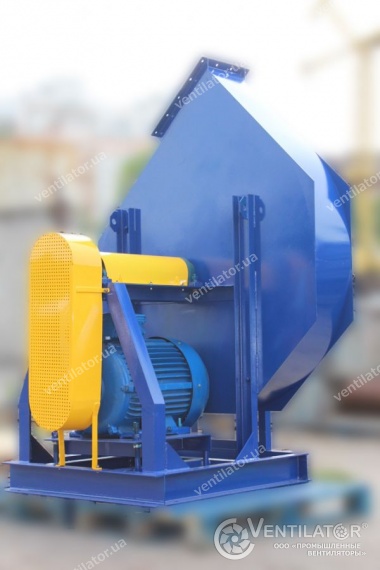

VC 6-28 (VR 120-28) №8 with electric motor AIR 180 М4 30 kW 1500 rpm
VC 6-28 (VR 120-28) №8 with electric motor AIR 180 М4 30 kW 1500 rpm
VC 6-28 (VR 120-28) №8 with electric motor AIR 180 М4 30 kW 1500 rpm

VC 6-28 (VR 120-28) №8 with electric motor AIR 180 М4 30 kW 1500 rpm

ID 9167  In stock
Choose another ›
Choose another ›
Choose another ›
Choose another ›
ID 9167  In stock
Engine KW / RPM 30.0/1500
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Material Carbon steel
Model ВЦ 6-28 (ВР 120-28) №8
Max. transported air temperature, °C
Design Schema №5.1, Schema №5.2
D/Dn 1
Pollution limits, mg/m³ 100
The mass of the fan with el. engine, kg 6420, 643,0, 647,0
Fan's operating point: Pressure, Pa 4676-2004, 5186-3200, 5723-4940
Pressure ηmax 5067, 5624, 6212
Performance ηmax 5970, 6280, 6600
Rotations of impeller, rpm 1900, 2000, 2100
Rotation speed, rpm 1500
Fan's operating point: Airflow m³/h 1600-15830, 1690-14900, 1770-12750

Dimensions

Overall dimensions of the industrial fan VC 6-28 (VR 120-28) №8

Reviews

There are no reviews yet.

Be the first to review “VC 6-28 (VR 120-28) №8 with electric motor AIR 180 М4 30 kW 1500 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VC 6-28 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VC 6-28 (VR 120-28) №8

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
