| Design | Schema №1, Schema №3, Schema №5.1, Schema №5.2 |
|---|---|
| D/Dn | 1, 1.05, 1.1 |
| Rotation speed, rpm | 3000 |
| Rotations of impeller, rpm | 2820, 2835 |
| Performance ηmax | 820, 860, 830 |
| Fan's operating point: Airflow m³/h | 250-1470, 310-1580, 350-1530 |
| Pressure ηmax | 857, 1002, 1134 |
| Fan's operating point: Pressure, Pa | 974-550, 1139-639, 1261-780 |
| The mass of the fan with el. engine, kg | 26 |
| Pollution limits, mg/m³ | 300000 |
| Model | VCP 5-45 №2,5 |
| Max. transported air temperature, °C | 80 |
| Engine KW / RPM | 0.75/3000 |
| Ventilator angle of rotation | L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90 |
| Material | Carbon steel |

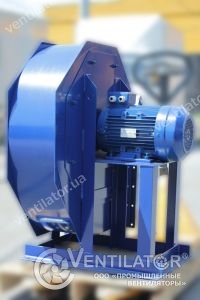

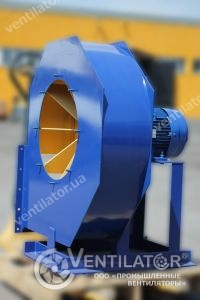

VCP 5-45 №2,5 with electric motor AIR 71 А2 0,75 kW 3000 rpm
Prices for fans with impeller D = 1,05 Dn, D = 1,1 Dn, are specified by manager
Aerodynamic characteristics
VCP 5-45 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С
