| Design | Schema №1, Schema №3, Schema №5.1, Schema №5.2 |
|---|---|
| D/Dn | 0.9 |
| Rotation speed, rpm | 3000 |
| Rotations of impeller, rpm | 2870 |
| Performance ηmax | 3100 |
| Fan's operating point: Airflow m³/h | 1390-3370 |
| Pressure ηmax | 1747 |
| Fan's operating point: Pressure, Pa | 1933-1705 |
| The mass of the fan with el. engine, kg | 69 |
| Pollution limits, mg/m³ | 300000 |
| Model | ВЦП 5-45 №4 |
| Max. transported air temperature, °C | 80 |
| Engine KW / RPM | 3/3000 |
| Ventilator angle of rotation | L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90 |
| Material | Carbon steel |

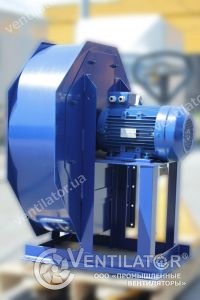

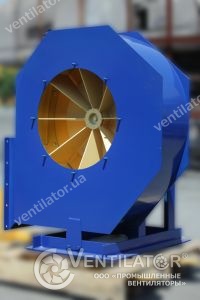

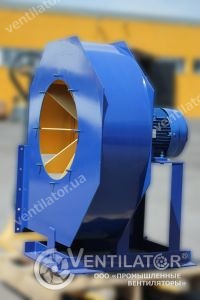

VCP 5-45 №4 with electric motor AIR 90 L2 3 kW 3000 rpm
Dimensions
Aerodynamic characteristics
VCP 5-45 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С
