| Rotations of impeller, rpm | 1812 |
|---|---|
| D/Dn | 1 |
| Performance ηmax | 4560 |
| Pressure ηmax | 1423 |
| Design | Schema №5.1, Schema №5.2 |
| Fan's operating point: Airflow m³/h | 1880-8160 |
| Rotation speed, rpm | 1500 |
| Fan's operating point: Pressure, Pa | 1535-902 |
| Max. transported air temperature, °C | 80 |
| Pollution limits, mg/m³ | 300000 |
| Engine KW / RPM | 5.5/1500 |
| Material | Carbon steel |
| The mass of the fan with el. engine, kg | 234 |
| Ventilator angle of rotation | L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90 |
| Model | ВЦП 6-45 №5 |

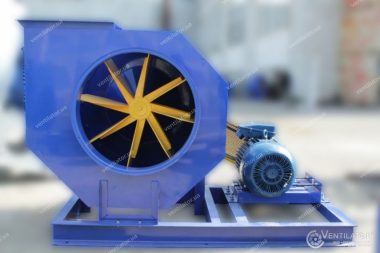

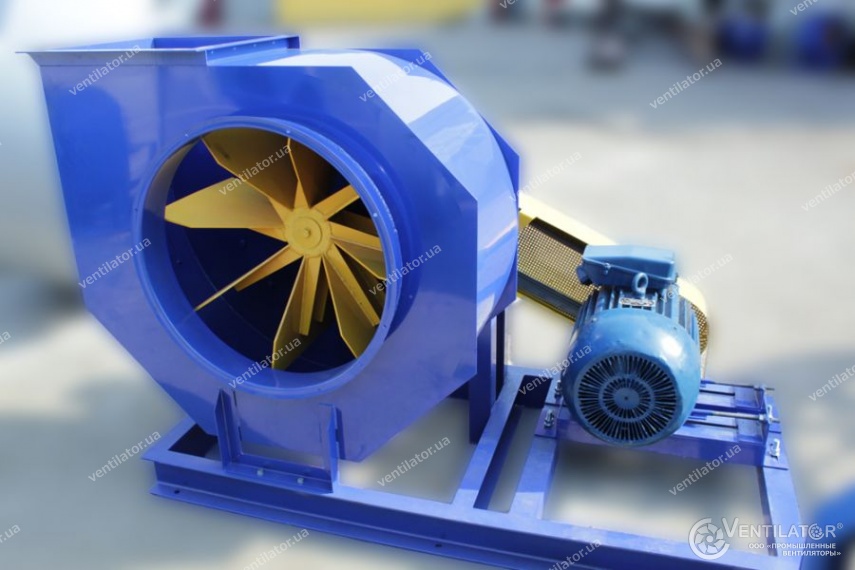

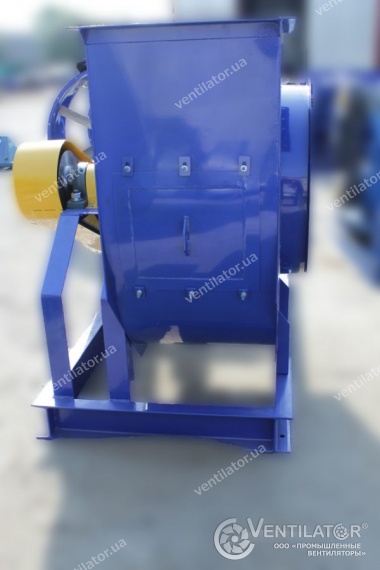

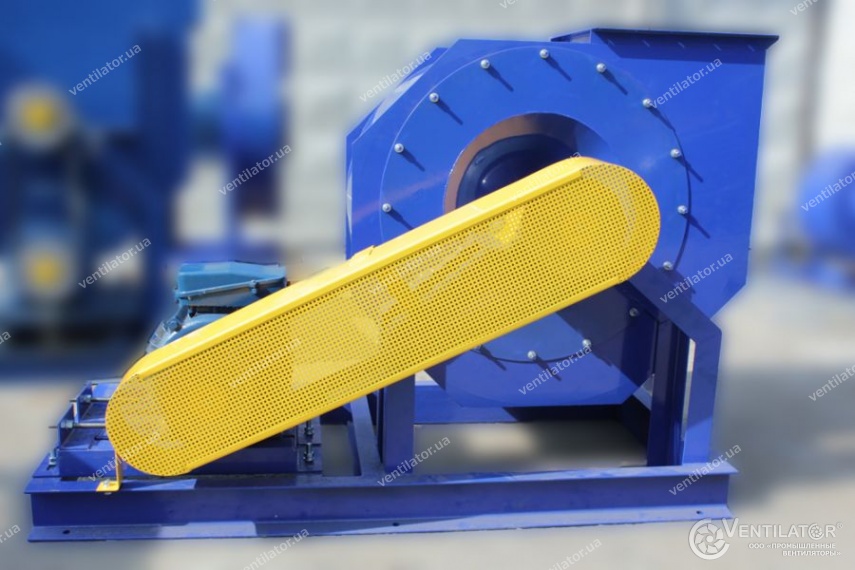

VСP 6-45 №5 with electric engine AIR 112 M4 5,5 kW 1500 RPM
Dimensions
Aerodynamic characteristics
VCP 5-45 fan aerodynamic characteristics
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С
Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
