| Design | Schema №5.1, Schema №5.2 |
|---|---|
| D/Dn | 1 |
| Rotation speed, rpm | 1500 |
| Rotations of impeller, rpm | 1100 |
| Performance ηmax | 4630 |
| Fan's operating point: Airflow m³/h | 1540-9560 |
| Pressure ηmax | 1024 |
| Fan's operating point: Pressure, Pa | 1074-567 |
| The mass of the fan with el. engine, kg | 243 |
| Pollution limits, mg/m³ | 300000 |
| Model | ВЦП 7-40 №6,3 |
| Max. transported air temperature, °C | 80 |
| Engine KW / RPM | 5.5/1500 |
| Ventilator angle of rotation | L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90 |
| Material | Carbon steel |

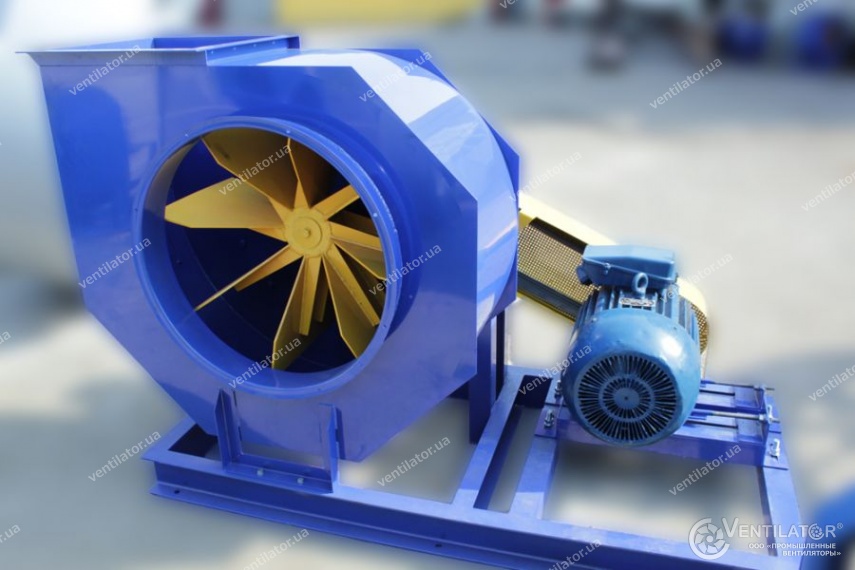

VCP 7-40 №6,3 with electric motor AIR 112 М4 5,5 kW 1500 rpm
Dimensions
Aerodynamic characteristics
VCP 7-40 fan aerodynamic characteristics, Modification 5, D=Dn
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С
Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
