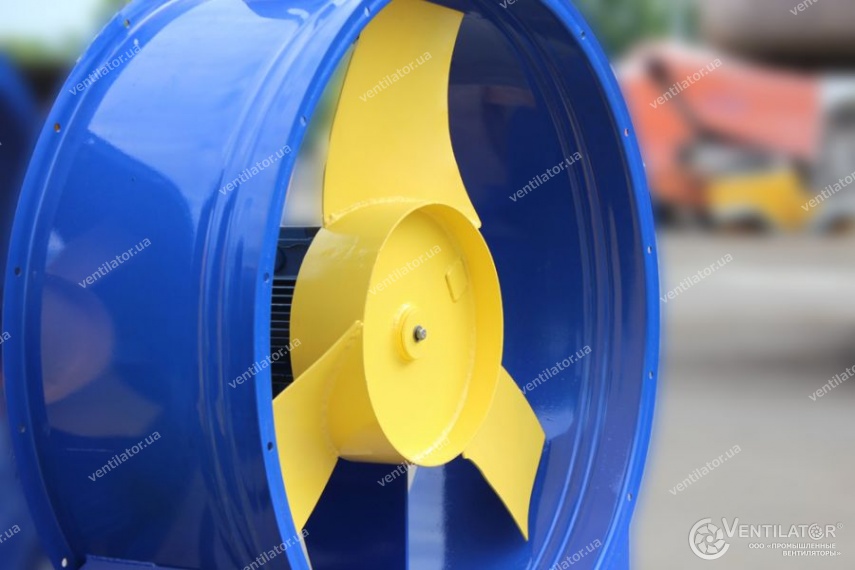

VO 06-300 (VO 13-290) №3,15 with electric engine AIR 56 A4 0,12 kW 1500 RPM

Low pressure axial fan

ID 11311  In stock
Choose another ›
Choose another ›

Low pressure axial fan

ID 11311  In stock
Fan's operating point: Airflow m³/h 1720-430
Rotation speed, rpm 1500
Pressure ηmax 33.4
Fan's operating point: Pressure, Pa 22.2-58.8
D/Dn 1
Performance ηmax 1400
The mass of the fan with el. engine, kg 8.52
Engine KW / RPM 0.12/1500
Model VO 06-300 №3,15
Material Carbon steel
Pollution limits, mg/m³ 10
Max. transported air temperature, °C 40

Dimensions

Overall dimensions of the industrial fan VO 06-300 №3,15

Reviews

There are no reviews yet.

Be the first to review “VO 06-300 (VO 13-290) №3,15 with electric engine AIR 56 A4 0,12 kW 1500 RPM”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VO 06-300 fan aerodynamic characteristics, D=Dn
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VO 06-300 №3,15

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
