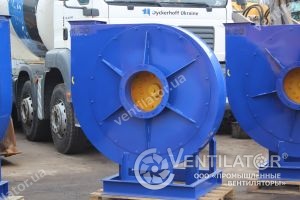

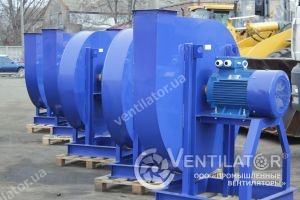

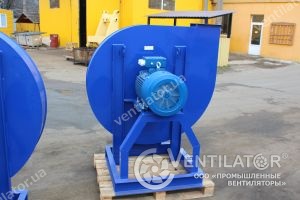

VVD №11 with electric motor AIR 160 М6 15 kW 1000 rpm
VVD №11 with electric motor AIR 160 М6 15 kW 1000 rpm
VVD №11 with electric motor AIR 160 М6 15 kW 1000 rpm
VVD №11 with electric motor AIR 160 М6 15 kW 1000 rpm

VVD №11 with electric motor AIR 160 М6 15 kW 1000 rpm

ID 37600  In stock
Choose another ›
Choose another ›
Choose another ›
Choose another ›
ID 37600  In stock
Model VVD №11
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Max. transported air temperature, °C 40
D/Dn 1
Engine KW / RPM 15/1000
Design Schema №1
Material Carbon steel
Pollution limits, mg/m³ 150
Performance ηmax 7310
Fan's operating point: Pressure, Pa 2846-2900
Rotations of impeller, rpm 970
Fan's operating point: Airflow m³/h 2400-11500
The mass of the fan with el. engine, kg 627
Rotation speed, rpm 1000
Pressure ηmax 3274

Dimensions

Overall dimensions of the industrial fan VVD №11

Reviews

There are no reviews yet.

Be the first to review “VVD №11 with electric motor AIR 160 М6 15 kW 1000 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VVD fan aerodynamic characteristics, D=Dn
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VVD №11

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
