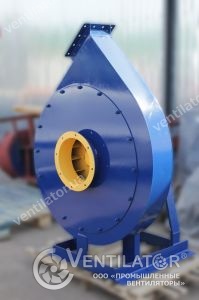

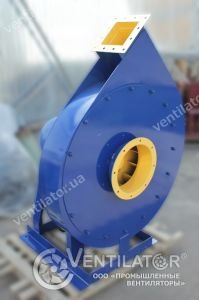

VVD №8 with electric motor AIR 200 L2 45 kW 3000 rpm
VVD №8 with electric motor AIR 200 L2 45 kW 3000 rpm
VVD №8 with electric motor AIR 200 L2 45 kW 3000 rpm
VVD №8 with electric motor AIR 200 L2 45 kW 3000 rpm

VVD №8 with electric motor AIR 200 L2 45 kW 3000 rpm

ID 37590  In stock
Choose another ›
Choose another ›
Choose another ›
Choose another ›
ID 37590  In stock
Rotations of impeller, rpm 2400, 2600
D/Dn 1
Performance ηmax 6590, 7140
Pressure ηmax 10454, 12342
Design Schema №5.1, Schema №5.2
Fan's operating point: Airflow m³/h 2170-11000, 2350-9490
Rotation speed, rpm 3000
Fan's operating point: Pressure, Pa 8964-9000, 10557-11683
Max. transported air temperature, °C 40
Pollution limits, mg/m³ 150
Engine KW / RPM 45/3000
Material Carbon steel
The mass of the fan with el. engine, kg 761, 764
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Model VVD №8

Dimensions

Overall dimensions of the industrial fan VVD №8

Reviews

There are no reviews yet.

Be the first to review “VVD №8 with electric motor AIR 200 L2 45 kW 3000 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VVD fan aerodynamic characteristics, D=Dn
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VVD №8

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
