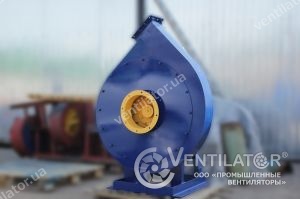

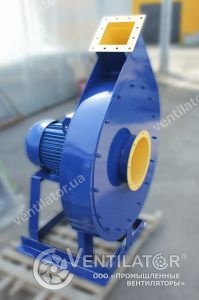

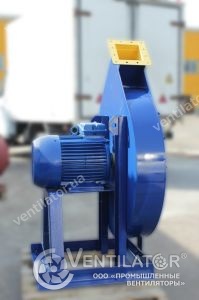

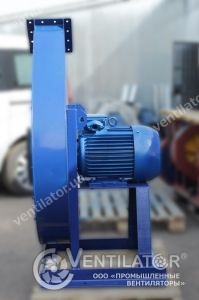

VVD №9 with electric motor AIR 160 М4 18,5 kW 1500 rpm
VVD №9 with electric motor AIR 160 М4 18,5 kW 1500 rpm
VVD №9 with electric motor AIR 160 М4 18,5 kW 1500 rpm
VVD №9 with electric motor AIR 160 М4 18,5 kW 1500 rpm

VVD №9 with electric motor AIR 160 М4 18,5 kW 1500 rpm

ID 37594  In stock
Choose another ›
Choose another ›
Choose another ›
Choose another ›
ID 37594  In stock
Model VVD №9
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Max. transported air temperature, °C 40
D/Dn 1
Engine KW / RPM 18.5/1500
Design Schema №1
Material Carbon steel
Pollution limits, mg/m³ 150
Performance ηmax 5700
Fan's operating point: Pressure, Pa 4156-4122
Rotations of impeller, rpm 1460
Fan's operating point: Airflow m³/h 1880-9660
The mass of the fan with el. engine, kg 422
Rotation speed, rpm 1500
Pressure ηmax 4812

Dimensions

Overall dimensions of the industrial fan VVD №9

Reviews

There are no reviews yet.

Be the first to review “VVD №9 with electric motor AIR 160 М4 18,5 kW 1500 rpm”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VVD fan aerodynamic characteristics, D=Dn
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VVD №9

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
