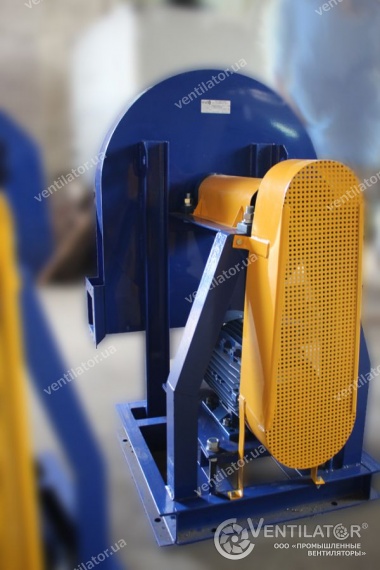

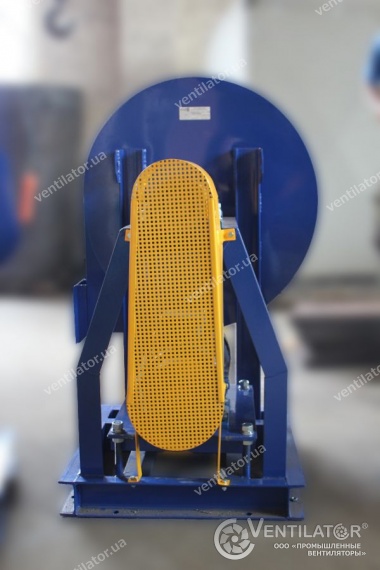

VVD (VR 154-21) №5 with electric engine AIR 100 L2 5,5 kW 3000 RPM

High pressure centrifugal fan

ID 8911  In stock
Choose another ›
Choose another ›
Choose another ›
Choose another ›

High pressure centrifugal fan

ID 8911  In stock
Design Schema №5.1, Schema №5.2
D/Dn 1
Rotation speed, rpm 3000
Rotations of impeller, rpm 2600, 2800
Performance ηmax 1740, 1880
Fan's operating point: Airflow m³/h 570-2950, 620-2500
Pressure ηmax 4709, 5474
Fan's operating point: Pressure, Pa 4067-4033, 4723-5180
The mass of the fan with el. engine, kg 119
Pollution limits, mg/m³ 150
Model VVD №5
Max. transported air temperature, °C 40
Engine KW / RPM 5.5/3000
Ventilator angle of rotation L 0, L 135, L 180, L 270, L 315, L 45, L 90, R 0, R 135, R 180, R 270, R 315, R 45, R 90
Material Carbon steel

Dimensions

Overall dimensions of the industrial fan VVD №5

Reviews

There are no reviews yet.

Be the first to review “VVD (VR 154-21) №5 with electric engine AIR 100 L2 5,5 kW 3000 RPM”

Your email address will not be published. Required fields are marked *

Aerodynamic characteristics

VVD fan aerodynamic characteristics, D=Dn
at barometric pressure of 760 mm Hg. Art. and temperature 20 ° С

Aerodynamic characteristics VVD №5

Q - air productivity, thousand m3/h
Pv - total pressure
η - coeficient of eficiency
n - quantity of rotations on the impeller, rpm
N - power consumption of the engine, kW
U – wheel peripheral speed, m / s
