Medium-pressure fans VTS 14-46

The centrifugal fan of medium pressure unilateral suction VTs 14-46 is designed to move air and other gas mixtures with a temperature of up to + 80 ° and a concentration of solid mechanical dust impurities of not more than 100 mg / m3. It is used in ventilation systems, air heating and air conditioning. It is made of carbon or stainless steel, dissimilar metals, aluminum and titanium alloys.

Models
Aerodynamics Graphics

Execution	D/Dn	N en, KW	n en, rpm	n w.w. en, rpm	Airflow m3/h		Pressure Pa		ID	Price, UAH
					ηmax	in working zone	ηmax	in working zone
ВЦ 14-46 №2
1	1	0.37	1500	1370	910	440-1490	281	227-304	id8452	9438
1	1	2.2	3000	2760	1800	840-2950	1105	851-1197	id8456	12193
1	1.05	0.55	1500	1365	1020	470-1700	315	246-342	id8453	Negotiated price
1	1.05	3	3000	2865	2100	970-3490	1309	1022-1419	id8457	Negotiated price
ВЦ 14-46 №2,5
1	0.95	0.55	1500	1365	1210	720-1900	367	310-371	id8459	10806
1	0.95	4	3000	2880	2700	1610-4240	1760	1486-1781	id8464	16359
1	1	0.75	1500	1365	1400	850-2210	411	347-416	id8460	11357
1	1	5.5	3000	2880	3090	1880-4880	1957	1655-1980	id8465	17113
1	1.05	1.1	1500	1420	1700	1040-2690	490	418-494	id8461	Negotiated price
1	1.05	7.5	3000	2900	3620	2210-5740	2225	1898-2249	id8466	Negotiated price
ВЦ 14-46 №3,15
1	0.95	0.75	1000	905	1760	840-3060	306	235-314	id8473	12397
1	0.95	3	1500	1410	2700	1290-4700	704	541-724	id8482	17153
1	1	1.1	1000	920	2150	1040-3680	355	280-365	id8475	12977
1	1	3	1500	1410	3270	1550-5550	785	626-794	id8482	17153
1	1.05	1.1	1000	920	2460	1160-4220	446	342-457	id8475	Negotiated price
1	1.05	4	1500	1425	3780	1780-6480	1024	786-1049	id8484	Negotiated price
ВЦ 14-46 №4
1	0.95	2.2	1000	910	3630	1800-6370	527	409-548	id8562	20471
1	0.95	7.5	1500	1457	5860	2900-10310	1328	1030-1381	id8568	31056
1	1	3	1000	950	4510	2200-7620	624	469-649	id8563	24270
1	1	11	1500	1440	7090	3390-12020	1452	1096-1486	id8569	33826
1	1.05	4	1000	950	5220	2560-9070	706	544-730	id8564	Negotiated price
1	1.05	11	1500	1440	8010	3920-13910	1597	1230-1650	id8569	Negotiated price
ВЦ 14-46 №5
1	0.95	3	750	710	5990	2800-9810	507	407-534	id8570	33134
1	0.95	7.5	1000	960	8300	3880-13610	950	762-1001	id8600	40558
1	0.95	22	1500	1460	12700	5930-20420	2152	1727-2265	id8607	63613
1	1	4	750	698	6900	3300-11410	548	437-560	id8571	37774
1	1	7.5	1000	960	9640	4510-16700	1068	816-1190	id8600	40558
1	1	30	1500	1460	14570	6990-24730	2436	1939-2603	id8608	67572
1	1.05	5.5	750	710	8220	3840-13590	637	508-669	id8590	Negotiated price
1	1.05	11	1000	965	11360	5310-18780	1187	946-1246	id8602	Negotiated price
1	1.05	37	1500	1470	17380	8120-27830	2688	2142-2827	id8609	Negotiated price
ВЦ 14-46 №6,3
1	0.95	11	750	720	12560	6330-20030	876	730-887	id8613	67605
1	0.95	22	1000	980	17000	8570-27110	1572	1312-1593	id8620	85803
1	1	11	750	720	15050	7460-23030	998	831-1004	id8613	67605
1	1	30	1000	980	20300	10180-31230	1785	1519-1791	id8621	96199
1	1.05	15	750	730	17450	8720-27770	1108	924-1126	id8614	Negotiated price
1	1.05	37	1000	985	23660	11840-37880	1988	1658-2019	id8623	Negotiated price
ВЦ 14-46 №8
1	0.95	22	750	730	23380	9610-33090	1304	1029-1371	id8689	117778
1	0.95	55	1000	985	31860	13100-45100	2347	1852-2467	id8695	159002
1	1	30	750	735	27820	11430-39580	1451	1139-1530	id8690	133946
1	1	75	1000	985	37570	15460-53620	2577	2029-2735	id8696	194701
1	1.05	90	1000	985	42550	17900-61200	2904	2299-3097	id8697	Negotiated price

Fans are manufactured in accordance with TU U 28.2-24881057-003:2023:

from carbon steel;
from stainless steel;
from dissimilar metals;
from aluminum alloys;
from titanium alloys.

VC 14-46 Centrifugal medium-pressure fans is most popular type of ventilation equipment.

The fans are intended for use in rooms where the concentration in the moving air stream of solid mechanical dust impurities does not exceed 100 mg/m3 with a temperature up to + 80 ° C and in the absence of any impurities having a fibrous structure or sticky properties.

VC 14-46 fans are used:

in air conditioning systems;
in ventilation systems;
in air heating systems;
for other sanitation-production purposes.

General information about fans:

Single suction;
Spiral rotary body;
Forward curved blades;
Quantity of blades 32;
Direction of rotation – right and left.

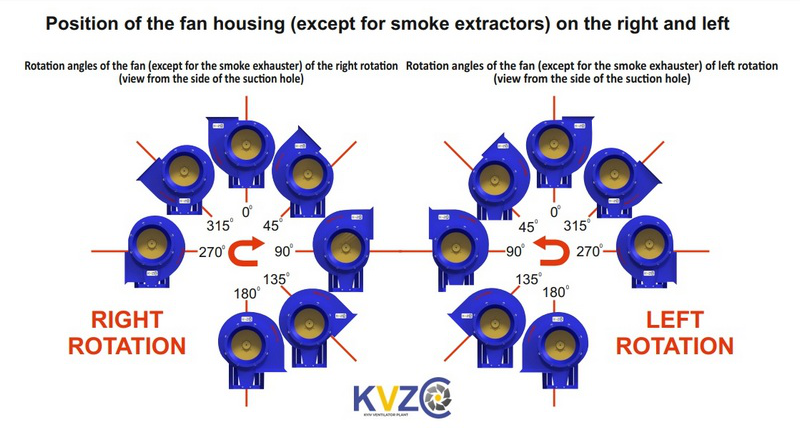

Depending on the direction of rotation, the fans are produced in the right or left rotation. Right-hand fans with a wheel rotating clockwise, left rotation – with a wheel rotating counter-clockwise when viewed from the suction side of the fan.
