| Diamether of impeller | 600 |
|---|---|
| Number of blsdes | 5 |
| Tilt angle, ° | 31,5 |
| Blade material | Al |
| Blade type | 4ZL |
| Direction of rotation | Left |
| Circumferential speed, m/s | 93,31 |
| Air speed, m/s | 21,19 |
| Torque, Nm | 44,6 |
| Air flow, m³/s | 5,99 |
| Static pressure, Pa | 1337 |
| Dynam. pressure, Pa | 664 |
| Speed, RPM | 3583 |
| Clearance with housing, % | 0,5 |
| Density, kg/m³ | 1,184 |
| Moment of inertia, kgm² | 0,06 |
| Blade centrifugal force, N | 5737 |
| Axial force, N | 565 |
| Full pressure, Pa | 2002 |
| Power, kW | 13,8 |
| Efficiency, % | 86 |
| Acoustic power, Lw dB | 100,2 |
| Shaft diameter, mm | 42 |
| Model | VME-6 |
VME-6 with electric motor 15 kW 3000 rpm
Leave a request
Leave your phone number and email. Our manager will confirm the configuration, price and lead time.
Frequently asked questions
How can I get a price for a fan?
Price depends on the configuration and order volume and is not published on the site. Leave a request on this page or call us — a manager will calculate the cost.
What is the manufacturing lead time?
Lead time depends on the model and configuration and is confirmed individually for each order.
Do you manufacture non-standard equipment to order?
Yes, in addition to standard models we manufacture non-standard ventilation equipment to the customer's specific requirements.
Do you export equipment abroad?
Yes, we supply equipment to customers across Europe, Asia, North America and Africa.
How do I submit a request?
Fill in the form on this page (phone and email are required) or call us — a manager will contact you during business hours.

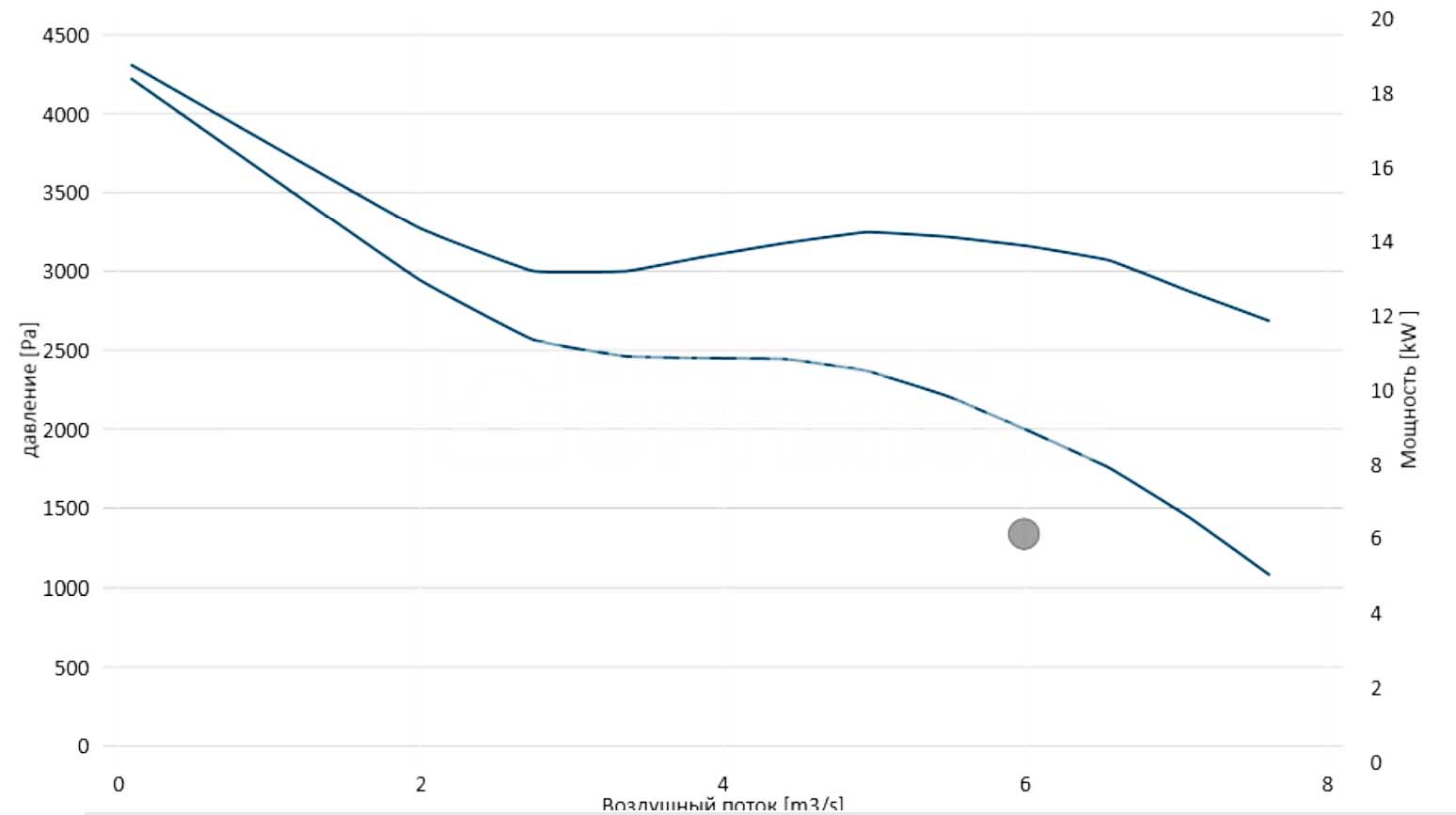

Aerodynamic characteristics
