| Electric drive power, kW | 13 |
|---|---|
| Nominal total pressure, Pa | 2000 |
| Nominal diameter, mm | 600 |
| Maximum full efficiency | 0.66 |
| Rotation frequency, rpm | 3000 |
| Weight, kg | 270 |
| Engine protection level | IP54 |
| Nominal flow, m 3 / h | 13140 |
| Length mm | 980 |
| Width, mm | 800 |
| Pollution limits, mg/m³ | 50 |
| Max. transported air temperature, °C | 35 |
| Engine KW / RPM | / |
| Height mm | 825 |
| Material | Carbon steel |
| Model | VME-5 |

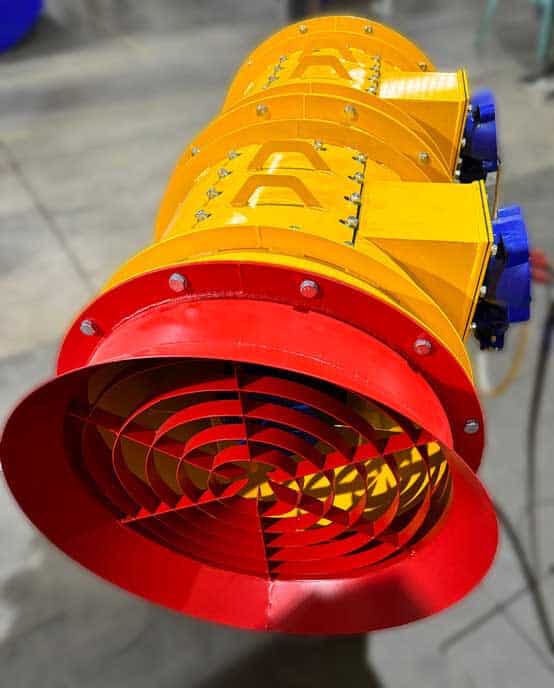

VME-5 with electric motor 13 kW 3000 rpm
Leave a request
Leave your phone number and email. Our manager will confirm the configuration, price and lead time.
Frequently asked questions
How can I get a price for a fan?
Price depends on the configuration and order volume and is not published on the site. Leave a request on this page or call us — a manager will calculate the cost.
What is the manufacturing lead time?
Lead time depends on the model and configuration and is confirmed individually for each order.
Do you manufacture non-standard equipment to order?
Yes, in addition to standard models we manufacture non-standard ventilation equipment to the customer's specific requirements.
Do you export equipment abroad?
Yes, we supply equipment to customers across Europe, Asia, North America and Africa.
How do I submit a request?
Fill in the form on this page (phone and email are required) or call us — a manager will contact you during business hours.

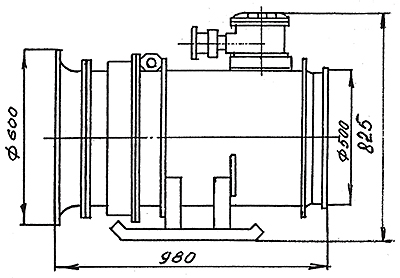

Dimensions

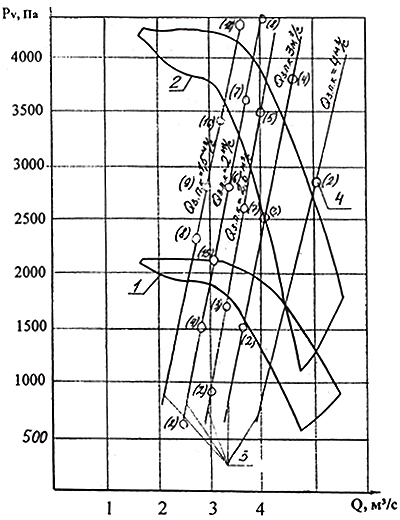

Aerodynamic characteristics
VME fan aerodynamic characteristics
Pv - total pressure, Pa;
Q - productivity, m3/h;
Qз.п.— feed to a dead end face, m3/h;
1 - one fan;
2 - two fans connected in series
