High pressure fans VVD
Centrifugal fan high pressure unilateral suction to move air and other gas mixtures that do not contain sticky and long-fibrous substances. It can work on the suction and discharge of air in the systems of ventilation, air conditioning, grain drying. It is made of carbon or stainless steel, dissimilar metals, aluminum and titanium alloys.
| Execution | D/Dn | N en, KW |
n en, rpm |
n w.w. en, rpm |
Airflow m3/h |
Pressure Pa |
ID |
Price, UAH |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ηmax | in working zone | ηmax | in working zone | ||||||||

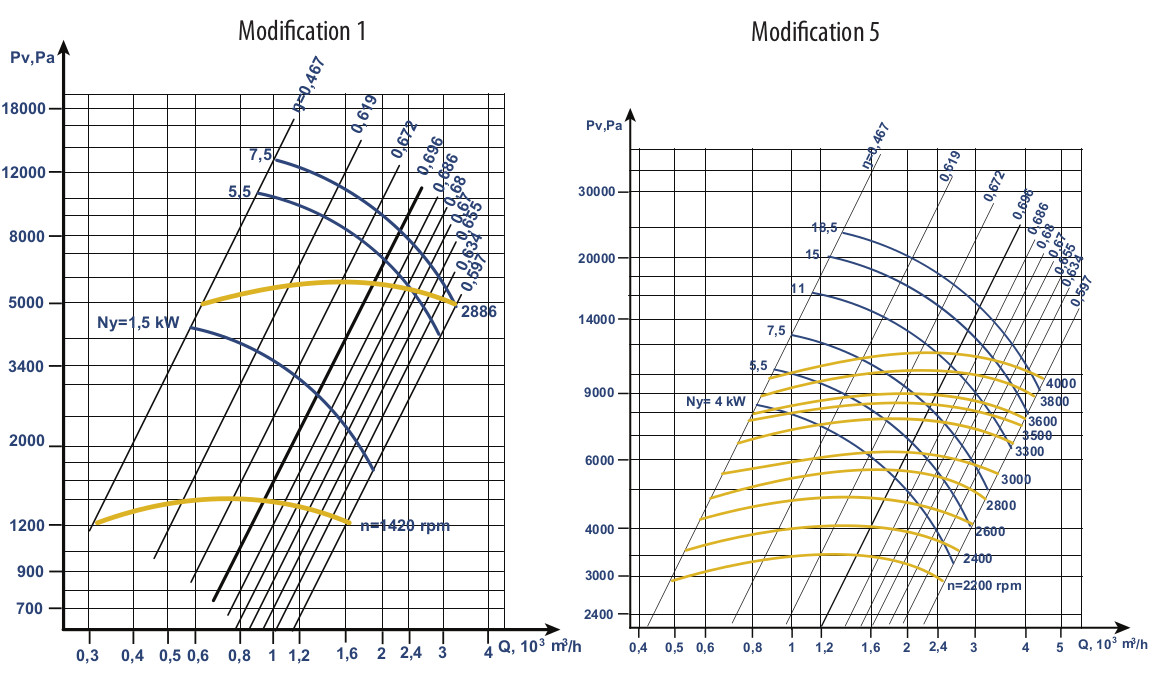

VVD №5 |
|||||||||||
| 1 | 1 | 1.5 | 1500 | 1420 | 950 | 310-1610 | 1409 | 1216-1206 | id8451 | 19005 | |
| 5.1 | 1 | 4 | 3000 | 2400 | 1610 | 530-2480 | 4004 | 3461-3616 | id37576 | Negotiated price | |
| 5.1 | 1 | 4 | 3000 | 2200 | 1480 | 480-2500 | 3358 | 2918-2895 | id37576 | Negotiated price | |
| 5.1 | 1 | 5.5 | 3000 | 2800 | 1880 | 620-2500 | 5474 | 4723-5180 | id8911 | 65724 | |
| 5.1 | 1 | 5.5 | 3000 | 2600 | 1740 | 570-2950 | 4709 | 4067-4033 | id8911 | 65724 | |
| 1 | 1 | 5.5 | 3000 | 2886 | 1940 | 640-2400 | 5821 | 5021-5599 | id8906 | 23747 | |
| 5.1 | 1 | 7.5 | 3000 | 3000 | 2010 | 660-3000 | 6299 | 5430-5700 | id8912 | 68813 | |
| 1 | 1 | 7.5 | 3000 | 2886 | 1940 | 640-3270 | 5821 | 5021-4982 | id37575 | Negotiated price | |
| 5.1 | 1 | 11 | 3000 | 3500 | 2350 | 770-3200 | 8636 | 7422-8100 | id8913 | 75628 | |
| 5.1 | 1 | 11 | 3000 | 3300 | 2200 | 730-3700 | 7654 | 6587-6600 | id8913 | 75628 | |
| 5.1 | 1 | 15 | 3000 | 3800 | 2550 | 840-3720 | 10230 | 8775-9400 | id37577 | Negotiated price | |
| 5.1 | 1 | 15 | 3000 | 3600 | 2400 | 790-4080 | 9151 | 7860-7806 | id37577 | Negotiated price | |
| 5.1 | 1 | 18.5 | 3000 | 4000 | 2680 | 880-4130 | 11376 | 9743-10224 | id37579 | Negotiated price | |

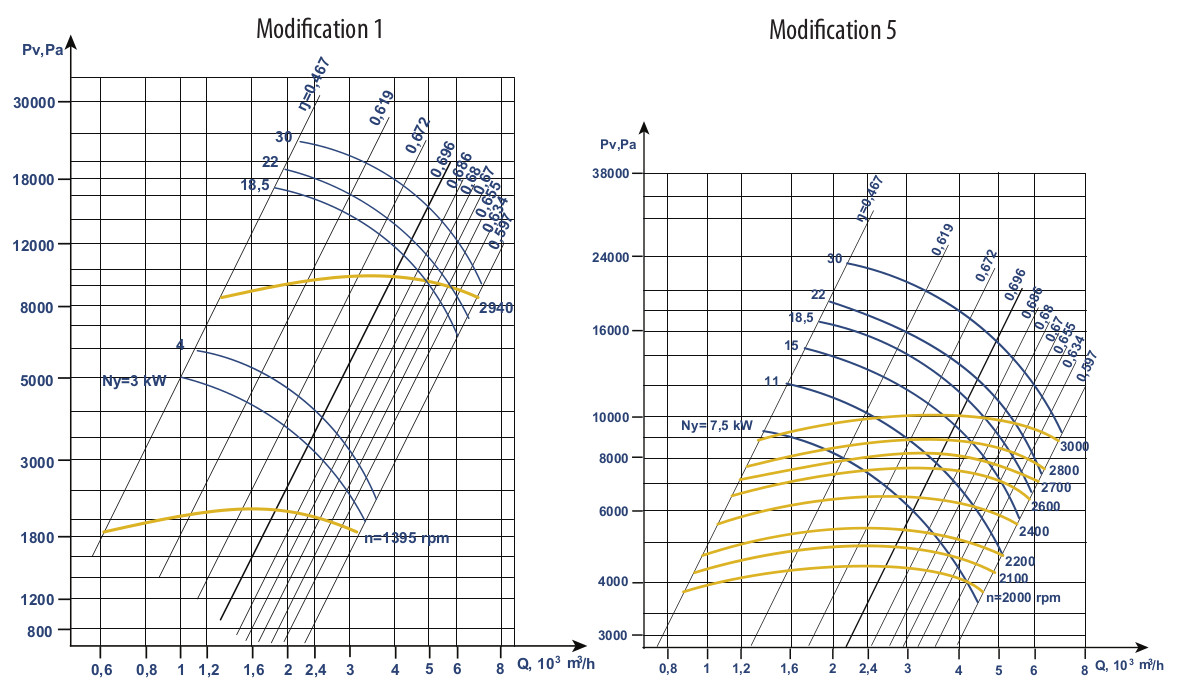

VVD №6,3 |
|||||||||||
| 5.1 | 1 | 7.5 | 3000 | 2100 | 2820 | 930-3900 | 4879 | 4214-4590 | id37582 | Negotiated price | |
| 5.1 | 1 | 7.5 | 3000 | 2000 | 2680 | 880-4300 | 4419 | 3819-3900 | id37582 | Negotiated price | |
| 5.1 | 1 | 11 | 3000 | 2400 | 3220 | 1060-4380 | 6403 | 5519-6030 | id37583 | Negotiated price | |
| 5.1 | 1 | 11 | 3000 | 2200 | 2950 | 970-5000 | 5363 | 4629-4591 | id37583 | Negotiated price | |
| 5.1 | 1 | 15 | 3000 | 2600 | 3490 | 1150-5100 | 7540 | 6490-6900 | id8955 | 93813 | |
| 5.1 | 1 | 15 | 3000 | 2400 | 3220 | 1060-5450 | 6403 | 5519-5476 | id8955 | 93813 | |
| 5.1 | 1 | 18.5 | 3000 | 2700 | 3620 | 1190-5800 | 8147 | 7006-7240 | id8956 | 96974 | |
| 5.1 | 1 | 18.5 | 3000 | 2600 | 3490 | 1150-5900 | 7540 | 6490-6442 | id8956 | 96974 | |
| 1 | 1 | 18.5 | 3000 | 2940 | 3940 | 1300-4880 | 9706 | 8331-9326 | id37578 | Negotiated price | |
| 5.1 | 1 | 22 | 3000 | 3000 | 4020 | 1320-5500 | 10119 | 8681-9500 | id8957 | 110488 | |
| 5.1 | 1 | 22 | 3000 | 2800 | 3760 | 1230-6350 | 8779 | 7543-7491 | id8957 | 110488 | |
| 1 | 1 | 22 | 3000 | 2940 | 3940 | 1300-5800 | 9706 | 8331-8800 | id37580 | Negotiated price | |
| 1 | 1 | 30 | 3000 | 2940 | 3940 | 1300-6670 | 9706 | 8331-8275 | id37581 | Negotiated price | |
| 5.1 | 1 | 30 | 3000 | 3000 | 4020 | 1320-6810 | 10119 | 8681-8623 | id37584 | Negotiated price | |

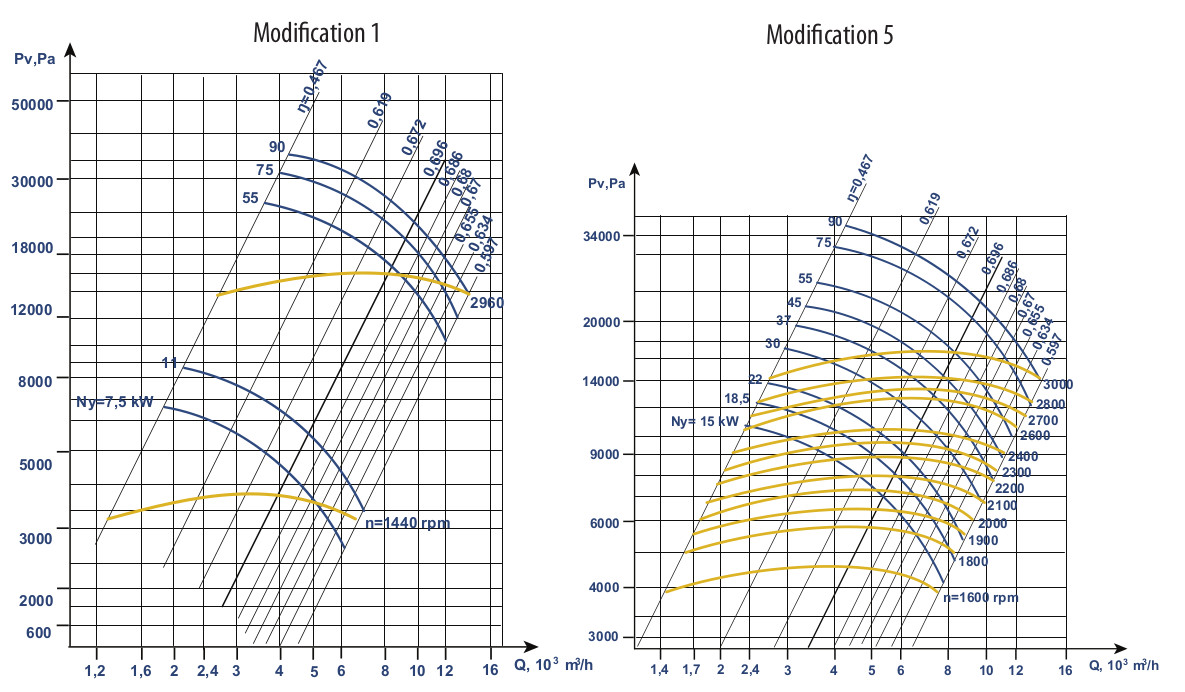

VVD №8 |
|||||||||||
| 1 | 1 | 7.5 | 1500 | 1440 | 3950 | 1300-5200 | 3686 | 3188-3520 | id37585 | Negotiated price | |
| 1 | 1 | 11 | 1500 | 1440 | 3950 | 1300-6690 | 3686 | 3188-3160 | id37586 | Negotiated price | |
| 5.1 | 1 | 15 | 1500 | 1600 | 4390 | 1440-7430 | 4563 | 3942-3909 | id8962 | 128326 | |
| 5.1 | 1 | 15 | 1500 | 1800 | 4940 | 1620-6570 | 5797 | 5000-5501 | id8962 | 128326 | |
| 5.1 | 1 | 18.5 | 1500 | 1800 | 4940 | 1620-8100 | 5797 | 5000-5100 | id8964 | 141637 | |
| 5.1 | 1 | 18.5 | 1500 | 2000 | 5490 | 1810-6600 | 7187 | 6188-7000 | id8964 | 141637 | |
| 5.1 | 1 | 22 | 1500 | 1900 | 5220 | 1720-8600 | 6472 | 5578-5700 | id8965 | 150961 | |
| 5.1 | 1 | 22 | 1500 | 2100 | 5770 | 1900-7140 | 7942 | 6832-7634 | id8965 | 150961 | |
| 5.1 | 1 | 30 | 3000 | 2300 | 6320 | 2080-8100 | 9575 | 8219-9100 | id8966 | 154919 | |
| 5.1 | 1 | 30 | 3000 | 2100 | 5770 | 1900-9500 | 7942 | 6832-6800 | id8966 | 154919 | |
| 5.1 | 1 | 37 | 3000 | 2200 | 6040 | 1990-10200 | 8738 | 7509-7456 | id8967 | 173001 | |
| 5.1 | 1 | 37 | 3000 | 2400 | 6590 | 2170-9000 | 10454 | 8964-9800 | id8967 | 173001 | |
| 5.1 | 1 | 45 | 3000 | 2400 | 6590 | 2170-11000 | 10454 | 8964-9000 | id37590 | Negotiated price | |
| 5.1 | 1 | 45 | 3000 | 2600 | 7140 | 2350-9490 | 12342 | 10557-11683 | id37590 | Negotiated price | |
| 5.1 | 1 | 55 | 3000 | 2700 | 7420 | 2440-10580 | 13352 | 11407-12314 | id37591 | Negotiated price | |
| 5.1 | 1 | 55 | 3000 | 2600 | 7140 | 2350-11400 | 12342 | 10557-10900 | id37591 | Negotiated price | |
| 1 | 1 | 55 | 3000 | 2960 | 8130 | 2670-8600 | 16193 | 13784-16100 | id37587 | Negotiated price | |
| 5.1 | 1 | 75 | 3000 | 3000 | 8240 | 2710-11760 | 16659 | 14172-15329 | id37592 | Negotiated price | |
| 5.1 | 1 | 75 | 3000 | 2800 | 7690 | 2530-13000 | 14408 | 12292-12218 | id37592 | Negotiated price | |
| 1 | 1 | 75 | 3000 | 2960 | 8130 | 2670-12000 | 16193 | 13784-14600 | id37588 | Negotiated price | |
| 5.1 | 1 | 90 | 3000 | 3000 | 8240 | 2710-13940 | 16659 | 14172-14088 | id37593 | Negotiated price | |
| 1 | 1 | 90 | 3000 | 2960 | 8130 | 2670-13750 | 16193 | 13784-13703 | id37589 | Negotiated price | |

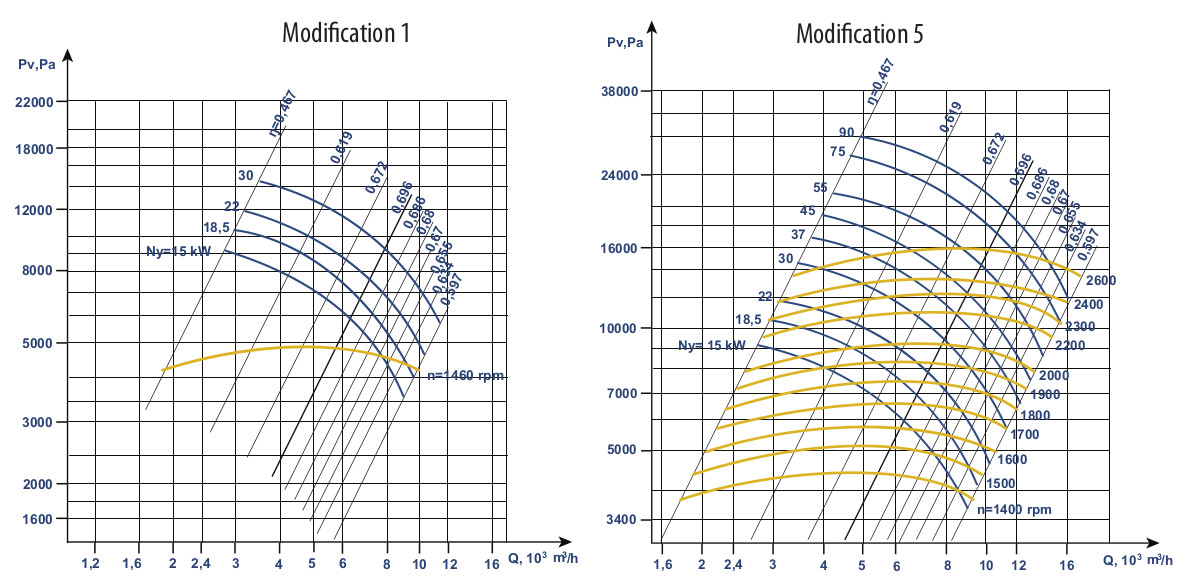

VVD №9 |
|||||||||||
| 1 | 1 | 15 | 1500 | 1460 | 5700 | 1880-7800 | 4812 | 4156-4500 | id37595 | Negotiated price | |
| 1 | 1 | 18.5 | 1500 | 1460 | 5700 | 1880-9660 | 4812 | 4156-4122 | id37594 | 100452 | |
| 5.1 | 1 | 18.5 | 1500 | 1600 | 6260 | 2060-8200 | 5797 | 500-5520 | id8974 | 158356 | |
| 5.1 | 1 | 18.5 | 1500 | 1400 | 5470 | 1800-9260 | 4419 | 3819-3787 | id8974 | 158356 | |
| 1 | 1 | 22 | 1500 | 1460 | 5700 | 1880-9660 | 4812 | 4156-4122 | id8968 | 86721 | |
| 5.1 | 1 | 22 | 1500 | 1500 | 5870 | 1930-9920 | 5084 | 4389-4353 | id8975 | 167679 | |
| 5.1 | 1 | 22 | 1500 | 1700 | 6650 | 2190-8600 | 6559 | 5652-6250 | id8975 | 167679 | |
| 5.1 | 1 | 30 | 1500 | 1700 | 6650 | 2190-11200 | 6559 | 5652-5609 | id8976 | 171638 | |
| 1 | 1 | 30 | 1500 | 1460 | 5700 | 1880-9660 | 4812 | 4156-4122 | id8970 | 113734 | |
| 5.1 | 1 | 30 | 1500 | 1900 | 7430 | 2440-9200 | 8235 | 7082-7916 | id8976 | 171638 | |
| 5.1 | 1 | 37 | 1500 | 2000 | 7820 | 2570-10390 | 9151 | 7860-8674 | id8977 | 189719 | |
| 5.1 | 1 | 37 | 1500 | 1800 | 7040 | 2310-11900 | 7372 | 6346-6299 | id8977 | 189719 | |
| 5.1 | 1 | 45 | 1500 | 2000 | 7820 | 2570-12500 | 9151 | 7860-9100 | id8978 | 197767 | |
| 5.1 | 1 | 45 | 1500 | 1900 | 7430 | 2440-12570 | 8235 | 7082-7031 | id8978 | 197767 | |
| 5.1 | 1 | 55 | 3000 | 2200 | 8600 | 2830-12500 | 11142 | 9545-10100 | id37597 | Negotiated price | |
| 5.1 | 1 | 55 | 3000 | 2300 | 8990 | 2960-11500 | 12219 | 10454-11600 | id37597 | Negotiated price | |
| 5.1 | 1 | 75 | 3000 | 2600 | 10170 | 3340-11900 | 15792 | 13450-15300 | id37598 | Negotiated price | |
| 5.1 | 1 | 75 | 3000 | 2400 | 9380 | 3080-14450 | 13352 | 11407-11981 | id37598 | Negotiated price | |
| 5.1 | 1 | 90 | 3000 | 2600 | 10170 | 3340-14500 | 15792 | 13450-14541 | id37599 | Negotiated price | |

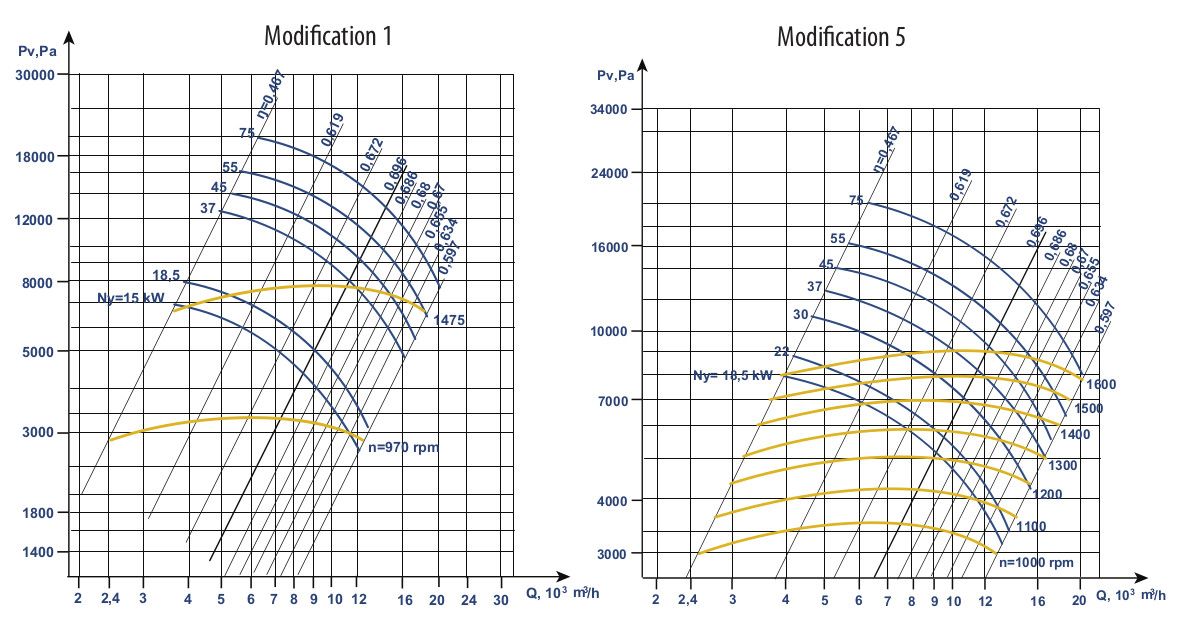

VVD №11 |
|||||||||||
| 1 | 1 | 15 | 1000 | 970 | 7310 | 2400-11500 | 3274 | 2846-2900 | id37600 | Negotiated price | |
| 1 | 1 | 18.5 | 1000 | 970 | 7310 | 2400-12370 | 3274 | 2846-2824 | id37601 | Negotiated price | |
| 5.1 | 1 | 18.5 | 1500 | 1000 | 7540 | 2480-12750 | 3482 | 3013-2986 | id37604 | Negotiated price | |
| 5.1 | 1 | 22 | 1500 | 1100 | 8290 | 2720-13100 | 4223 | 3650-3730 | id37605 | Negotiated price | |
| 5.1 | 1 | 30 | 1500 | 1200 | 9040 | 2970-15250 | 5038 | 4350-4300 | id37606 | Negotiated price | |
| 1 | 1 | 37 | 1500 | 1475 | 11120 | 3650-12200 | 7673 | 6603-7600 | id37602 | 171689 | |
| 5.1 | 1 | 37 | 1500 | 1300 | 9800 | 3220-15800 | 5928 | 5113-5200 | id37607 | Negotiated price | |
| 5.1 | 1 | 45 | 1500 | 1500 | 11300 | 3720-14500 | 7942 | 6832-7600 | id8982 | 244900 | |
| 5.1 | 1 | 45 | 1500 | 1400 | 10550 | 3470-16500 | 6896 | 5940-6200 | id8982 | 244900 | |
| 1 | 1 | 45 | 1500 | 1475 | 11120 | 3650-14770 | 7673 | 6603-7277 | id8980 | 179737 | |
| 1 | 1 | 55 | 1500 | 1475 | 11120 | 3650-18100 | 7673 | 6603-6700 | id37603 | 193700 | |
| 5.1 | 1 | 55 | 1500 | 1600 | 12060 | 3960-15500 | 9068 | 7789-8690 | id37608 | Negotiated price | |
| 5.1 | 1 | 55 | 1500 | 1500 | 11300 | 3720-17400 | 7942 | 6832-7155 | id37608 | Negotiated price | |
| 1 | 1 | 75 | 1500 | 1475 | 11120 | 3650-18800 | 7673 | 6603-6555 | id8981 | 217915 | |
| 5.1 | 1 | 75 | 1500 | 1600 | 12060 | 3960-20400 | 9068 | 7789-7735 | id37609 | Negotiated price | |
Fans are manufactured in accordance with TU U 28.2-24881057-003:2023:
- from carbon steel;
- from stainless steel;
- from dissimilar metals;
- from aluminum alloys;
- from titanium alloys.
VVD centrifugal high-pressure fans are popular type of ventilation equipment.
Fans are designed to move air, other gas mixtures that do not contain sticky and long-fiber substances. It can work both on the intake of air and on the discharge at the working temperature range from -16 to +40 ° C and the dust content in the ambient is not more than 150 mg/m3.
VVD fans are applied:
- in air conditioning systems;
- in ventilation systems;
- in grain dryers;
- for other sanitation-production purposes.
General information about fans:
- Single suction;
- Spirally turned body;
- Backward curved blades;
- Quantity of blades 12;
- Direction of rotation – right and left.
Depending on the direction of rotation, the fans are produced in the right or left rotation. Right-hand fans with a wheel rotating clockwise, left rotation – with a wheel rotating counter-clockwise when viewed from the suction side of the fan.
