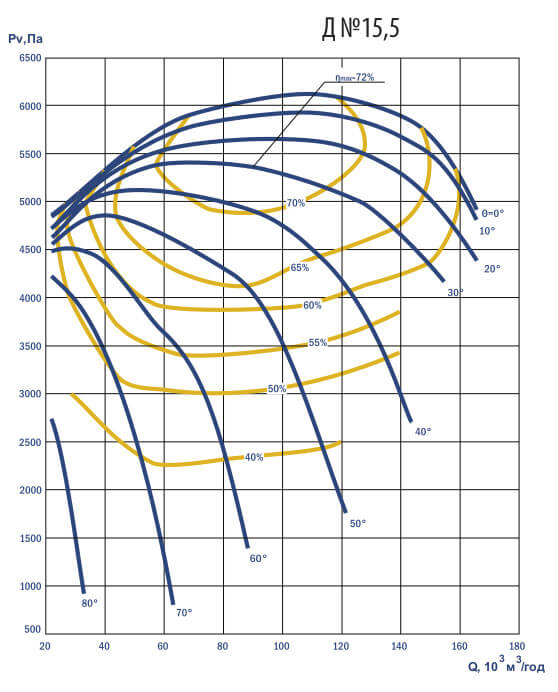

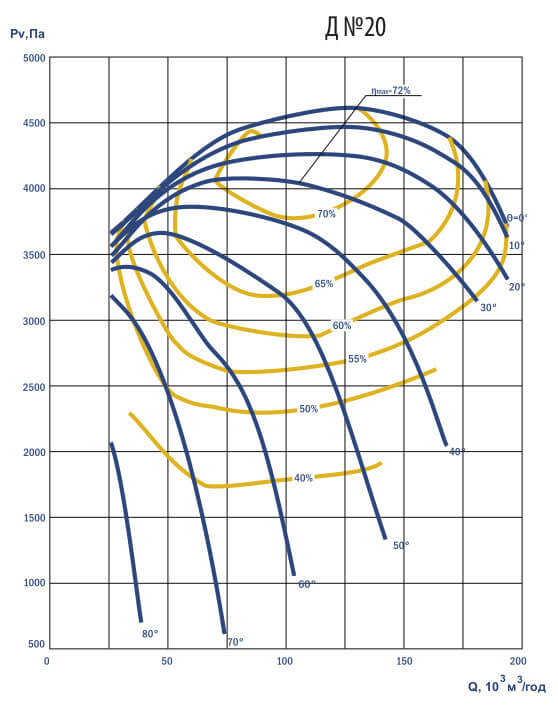

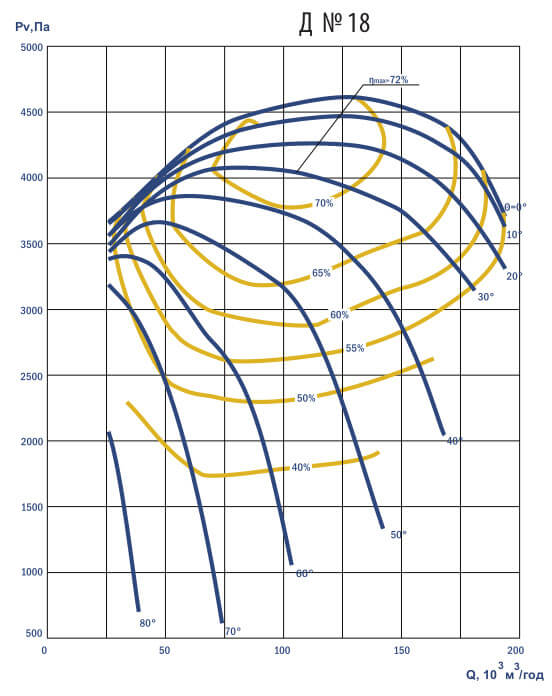

D smoke exhausters
Radial smoke exhausters of one-sided suction to remove flue gases from the furnaces of boiler units. They are used in heat and power engineering, on gas-oil boilers, on steam and hot water boilers. Produced from carbon and stainless steel, dissimilar metals.
| D/Dn | N en, KW |
n en, rpm |
Airflow m3/h |
Pressure Pa |
ID |
Price, UAH |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| ηmax | in working zone | ηmax | in working zone | |||||||
D №3,5 |
||||||||||
| 1 | 1.1 | 1000 | 2560 | 1100-4900 | 377 | 284-316 | id10771 | 23209 | ||
| 1 | 1.1 | 1500 | 2560 | 1100-4900 | 377 | 284-316 | id36450 | 48231 | ||
| 1 | 1.5 | 1500 | 3780 | 1670-3780 | 875 | 662-875 | id37643 | Negotiated price | ||
| 1 | 1.5 | 1500 | 3780 | 1670-3780 | 875 | 662-875 | id37645 | Negotiated price | ||
| 1 | 2.2 | 1500 | 3910 | 1670-5230 | 878 | 662-880 | id10773 | 25979 | ||
| 1 | 2.2 | 1500 | 3910 | 1670-5230 | 878 | 662-880 | id36451 | 51001 | ||
| 1 | 3 | 1500 | 3910 | 1670-6620 | 878 | 662-820 | id10774 | 27385 | ||
| 1 | 3 | 1500 | 3910 | 1670-6620 | 878 | 662-820 | id36448 | 52407 | ||
| 1 | 4 | 1500 | 3910 | 1670-7480 | 878 | 662-736 | id37644 | Negotiated price | ||
| 1 | 4 | 1500 | 3910 | 1670-7480 | 878 | 662-736 | id37646 | Negotiated price | ||
D №5 |
||||||||||
| 1 | 1.5 | 750 | 2150 | 450-4280 | 367 | 307-272 | id37647 | Negotiated price | ||
| 1 | 1.5 | 750 | 2150 | 450-4280 | 367 | 307-272 | id37651 | Negotiated price | ||
| 1 | 2 | 1000 | 2760 | 1580-5510 | 608 | 510-451 | id37648 | Negotiated price | ||
| 1 | 2 | 1000 | 2760 | 1580-5510 | 608 | 510-451 | id37652 | Negotiated price | ||
| 1 | 4 | 1500 | 4280 | 900-6200 | 1458 | 1221-1410 | id37649 | 70847 | ||
| 1 | 4 | 1500 | 4280 | 900-6200 | 1458 | 1221-1410 | id37653 | Negotiated price | ||
| 1 | 5.5 | 1500 | 4280 | 900-8530 | 1458 | 1221-1081 | id37650 | 74980 | ||
| 1 | 5.5 | 1500 | 4280 | 900-8530 | 1458 | 1221-1081 | id37654 | Negotiated price | ||
D №6 |
||||||||||
| 1 | 3 | 1000 | 4830 | 1010-7480 | 895 | 750-849 | id37655 | Negotiated price | ||
| 1 | 3 | 1000 | 4830 | 1010-7480 | 895 | 750-849 | id37662 | Negotiated price | ||
| 1 | 4 | 1000 | 4830 | 1010-9620 | 895 | 750-664 | id37656 | Negotiated price | ||
| 1 | 4 | 1000 | 4830 | 1010-9620 | 895 | 750-664 | id37663 | Negotiated price | ||
| 1 | 5.5 | 1000 | 4830 | 1010-9620 | 895 | 750-664 | id37657 | Negotiated price | ||
| 1 | 5.5 | 1500 | 6300 | 1560-6300 | 2090 | 1771-2090 | id37658 | Negotiated price | ||
| 1 | 5.5 | 1000 | 4830 | 1010-9620 | 895 | 750-664 | id37664 | Negotiated price | ||
| 1 | 5.5 | 1500 | 6300 | 1560-6300 | 2090 | 1771-2090 | id37665 | Negotiated price | ||
| 1 | 7.5 | 1500 | 7420 | 1560-8500 | 2114 | 1771-2090 | id37659 | Negotiated price | ||
| 1 | 7.5 | 1500 | 7420 | 1560-8500 | 2114 | 1771-2090 | id37666 | Negotiated price | ||
| 1 | 11 | 1500 | 7420 | 1560-11750 | 2114 | 1771-1980 | id37660 | 118994 | ||
| 1 | 11 | 1500 | 7420 | 1560-11750 | 2114 | 1771-1980 | id37667 | Negotiated price | ||
| 1 | 15 | 1500 | 7420 | 1560-14780 | 2114 | 1771-1980 | id37661 | Negotiated price | ||
| 1 | 15 | 1500 | 7420 | 1560-14780 | 2114 | 1771-1980 | id37668 | Negotiated price | ||
Д №8 |
||||||||||
| 1 | 5.5 | 750 | 8790 | 1850-13200 | 939 | 787-900 | id37673 | 264559 | ||
| 1 | 5.5 | 750 | 8790 | 1850-13200 | 939 | 787-900 | id37669 | Negotiated price | ||
| 1 | 7.5 | 1000 | 10950 | 2450-10950 | 1645 | 1390-1645 | id37670 | Negotiated price | ||
| 1 | 7.5 | 1000 | 10950 | 2450-10950 | 1645 | 1390-1645 | id37674 | Negotiated price | ||
| 1 | 11 | 1000 | 11680 | 2450-15500 | 1659 | 1390-1610 | id37675 | 275158 | ||
| 1 | 15 | 1000 | 11680 | 2450-20300 | 1659 | 1390-1467 | id36075 | Negotiated price | ||
| 1 | 18.5 | 1000 | 11680 | 2450-23300 | 1659 | 1390-1230 | id37672 | Negotiated price | ||
| 1 | 18.5 | 1000 | 11680 | 2450-23300 | 1659 | 1390-1230 | id37676 | Negotiated price | ||
Д №10 |
||||||||||
| 1 | 11 | 750 | 17300 | 3630-18000 | 1488 | 1247-1490 | id36080 | Negotiated price | ||
| 1 | 11 | 750 | 17300 | 3630-18000 | 1488 | 1247-1490 | id36081 | 294459 | ||
| 1 | 15 | 750 | 17300 | 3630-23500 | 1488 | 1247-1450 | id37677 | Negotiated price | ||
| 1 | 15 | 1000 | 13200 | 4870-13200 | 2520 | 2239-2520 | id37691 | Negotiated price | ||
| 1 | 15 | 1000 | 13200 | 4870-13200 | 2520 | 2239-2520 | id37681 | Negotiated price | ||
| 1 | 15 | 750 | 17300 | 3630-23500 | 1488 | 1247-1450 | id37687 | Negotiated price | ||
| 1 | 18.5 | 1000 | 13200 | 4870-16700 | 2520 | 2239-2595 | id37692 | Negotiated price | ||
| 1 | 18.5 | 750 | 17300 | 3630-27100 | 1488 | 1247-1385 | id37688 | Negotiated price | ||
| 1 | 18.5 | 750 | 17300 | 3630-27100 | 1488 | 1247-1385 | id37678 | Negotiated price | ||
| 1 | 18.5 | 1000 | 13200 | 4870-16700 | 2520 | 2239-2595 | id37682 | Negotiated price | ||
| 1 | 22 | 750 | 17300 | 3630-32200 | 1488 | 1247-1218 | id37679 | Negotiated price | ||
| 1 | 22 | 1000 | 13200 | 4870-20000 | 2520 | 2239-2620 | id37683 | Negotiated price | ||
| 1 | 22 | 1000 | 13200 | 4870-20000 | 2520 | 2239-2620 | id37693 | Negotiated price | ||
| 1 | 22 | 750 | 17300 | 3630-32200 | 1488 | 1247-1218 | id37689 | Negotiated price | ||
| 1 | 30 | 1000 | 13200 | 4870-26800 | 2520 | 2239-2630 | id36082 | 323053 | ||
| 1 | 30 | 750 | 17300 | 3630-34500 | 1488 | 1247-1103 | id37680 | Negotiated price | ||
| 1 | 30 | 750 | 17300 | 3630-34500 | 1488 | 1247-1103 | id37690 | Negotiated price | ||
| 1 | 30 | 1000 | 13200 | 4870-26800 | 2520 | 2239-2630 | id36079 | Negotiated price | ||
| 1 | 37 | 1000 | 13200 | 4870-32000 | 2520 | 2239-2595 | id37694 | Negotiated price | ||
| 1 | 37 | 1000 | 13200 | 4870-32000 | 2520 | 2239-2595 | id37684 | Negotiated price | ||
| 1 | 45 | 1000 | 13200 | 4870-37600 | 2520 | 2239-2460 | id37685 | Negotiated price | ||
| 1 | 45 | 1000 | 13200 | 4870-37600 | 2520 | 2239-2460 | id37695 | Negotiated price | ||
| 1 | 55 | 1000 | 13200 | 4870-46200 | 2520 | 2239-1982 | id37696 | Negotiated price | ||
| 1 | 55 | 1000 | 13200 | 4870-46200 | 2520 | 2239-1982 | id37686 | Negotiated price | ||
Д №12 |
||||||||||
| 1 | 30 | 750 | 30100 | 6300-33100 | 2172 | 1820-2170 | id36085 | 470928 | ||
| 1 | 30 | 750 | 30100 | 6300-33100 | 2172 | 1820-2170 | id36083 | Negotiated price | ||
| 1 | 37 | 750 | 30100 | 6300-39400 | 2172 | 1820-2140 | id37697 | Negotiated price | ||
| 1 | 37 | 750 | 30100 | 6300-39400 | 2172 | 1820-2140 | id37703 | 495114 | ||
| 1 | 45 | 750 | 30100 | 6300-46600 | 2172 | 1820-2061 | id37698 | Negotiated price | ||
| 1 | 45 | 1000 | 27600 | 8500-27600 | 3785 | 3286-3785 | id37700 | Negotiated price | ||
| 1 | 45 | 750 | 30100 | 6300-46600 | 2172 | 1820-2061 | id37704 | Negotiated price | ||
| 1 | 45 | 1000 | 27600 | 8500-27600 | 3785 | 3286-3785 | id37706 | Negotiated price | ||
| 1 | 55 | 1000 | 30100 | 6300-56100 | 2172 | 1820-1778 | id37699 | Negotiated price | ||
| 1 | 55 | 1000 | 34000 | 8500-34000 | 3840 | 3286-3840 | id37701 | Negotiated price | ||
| 1 | 55 | 1000 | 30100 | 6300-56100 | 2172 | 1820-1778 | id37705 | Negotiated price | ||
| 1 | 55 | 1000 | 34000 | 8500-34000 | 3840 | 3286-3840 | id37707 | 495984 | ||
| 1 | 75 | 1000 | 40300 | 8500-45500 | 3937 | 3286-3870 | id36086 | Negotiated price | ||
| 1 | 75 | 1000 | 40300 | 8500-45500 | 3937 | 3286-3870 | id36084 | Negotiated price | ||
| 1 | 90 | 1000 | 40300 | 8500-53500 | 3937 | 3286-3810 | id37702 | Negotiated price | ||
| 1 | 90 | 1000 | 40300 | 8500-53500 | 3937 | 3286-3810 | id37708 | Negotiated price | ||
Fans are manufactured
in accordancewith TU U 28.2-24881057-003:2023:
- Carbon steel;
- Stainless steel;
- Of dissimilar metals.
D radial smoke exhausters – one of the most popular types of exhausters fans.
D Smoke exhauster is designed for exhausting flue gases from the furnaces of boiler units equipped with ash collecting systems or working on gas-oil mixtures. Designed for long-term indoor and outdoor work in a temperate climate. The maximum temperature of the flue gas at the inlet should not exceed + 200-250 ° C. And in the scroll housing do not fall below -30 ° C. Dustiness of flue gases is not higher than 2 g/m3.
D smoke exhauster are used:
- in heat power engineering;
- on gas-and-oil-fired boilerх;
- on steam and hot water boilers;
- for other sanitation-production purposes.
General information about smoke exhausters:
- Single suction;
- Spiral rotary framework;
- Forward curved blades;
- Quantity of blades – 32;
- Direction of rotation – right and left.
Depending on the direction of smoke exhausters` rotation are made right or left-hand Right-hand smoke exhausters with a wheel rotating clockwise, left rotation – with a wheel rotating counter-clockwise when viewed from the motor side.
